MINIKEY User Manual Reference Section
Page 64 of 66 HSA SYSTEMS

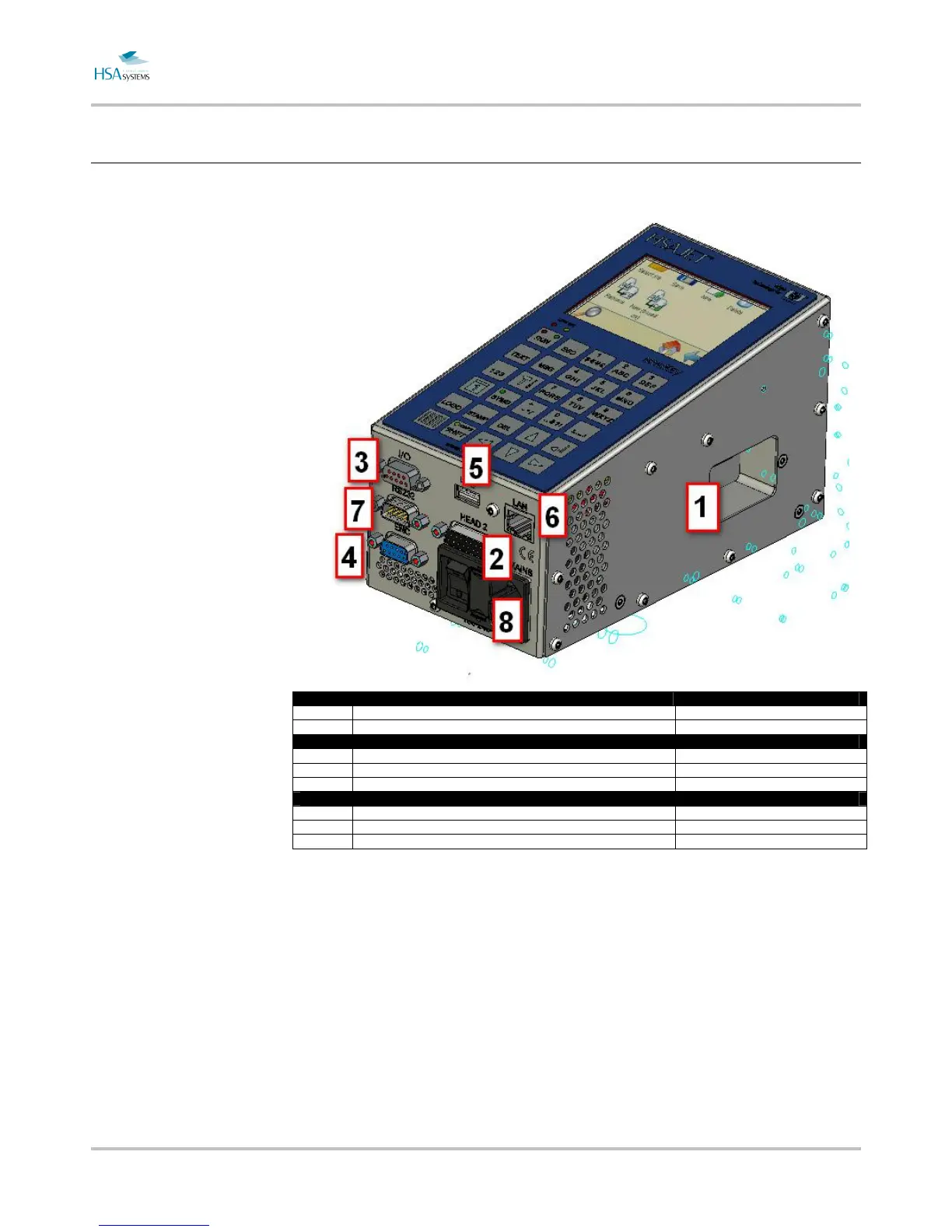

Overview of Connectors
Necessary equipment CONNECTOR
1 Print head (1) SUB-D 15 pin female
8 Power connector 100-240 VDC
Recommended equipment
2 Print head (2) SUB-D 15 pin female
3 External start sensor SUB-D 9 pin female
4 Encoder SUB-D 9 pin female
Optional equipment
5 USB connection, for loading jobs USB
6 Ethernet connection, for remote control and transfer RJ45 female socket
7 RS232 connector SUB-D 9 pin male
For wiring diagrams on connectors, please refer to installation manual.
