EASYTEST-COMBI519
EN - 41

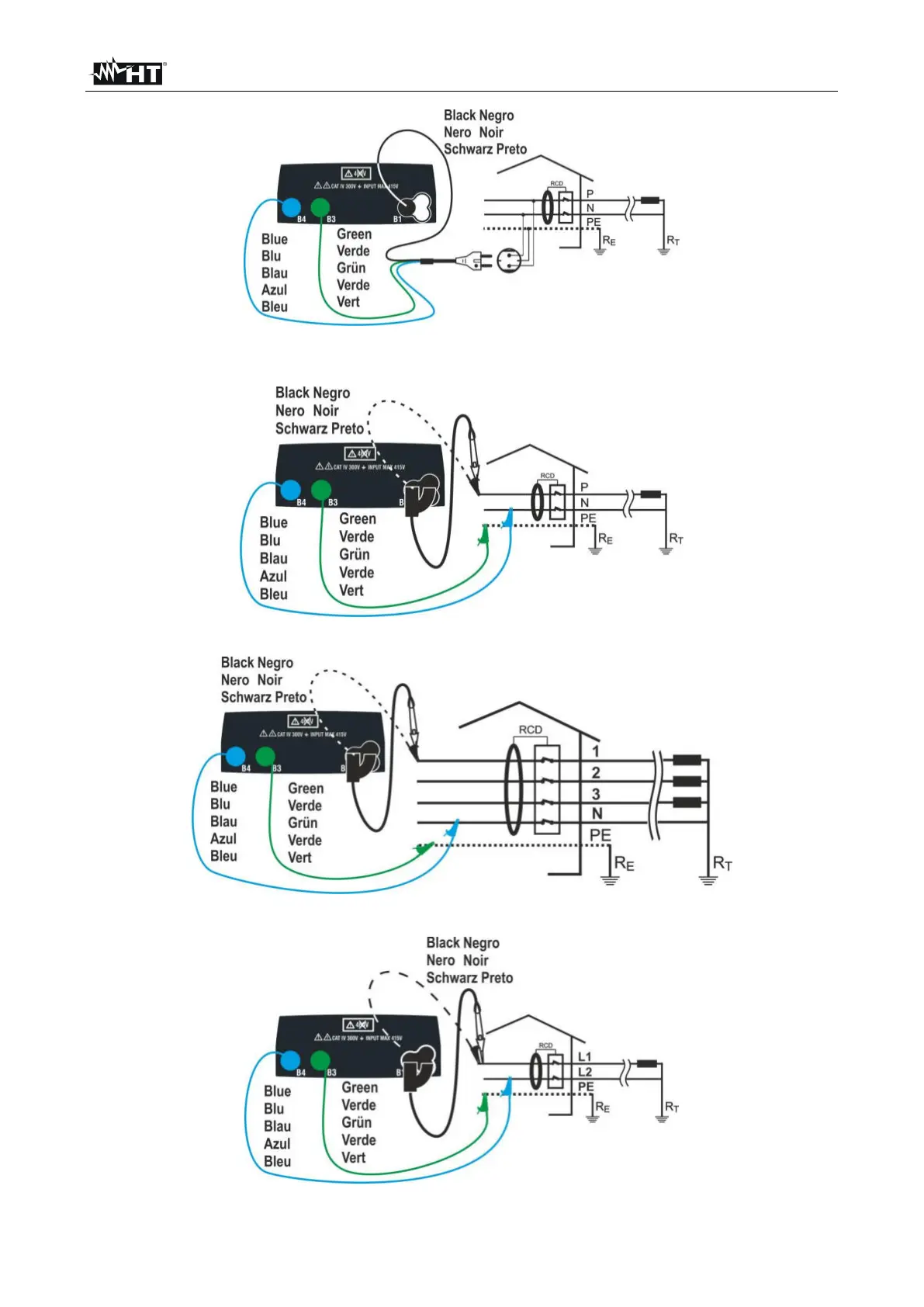

Fig. 17: Connection for single-phase 230V system by means of mains plug
Fig. 18: Connection for single-phase 230V system with single cables and remote probe
Fig. 19: Connection for 400V+N+ PE 3-phase system with single cables and remote probe
Fig. 20: Connection for L-L-PE 2-phase system with single cables and remote probe
