HT PQA400 User Manual

PQA400 - PQA823 - PQA824
EN - 25
12/09/2006 – 16:55:10

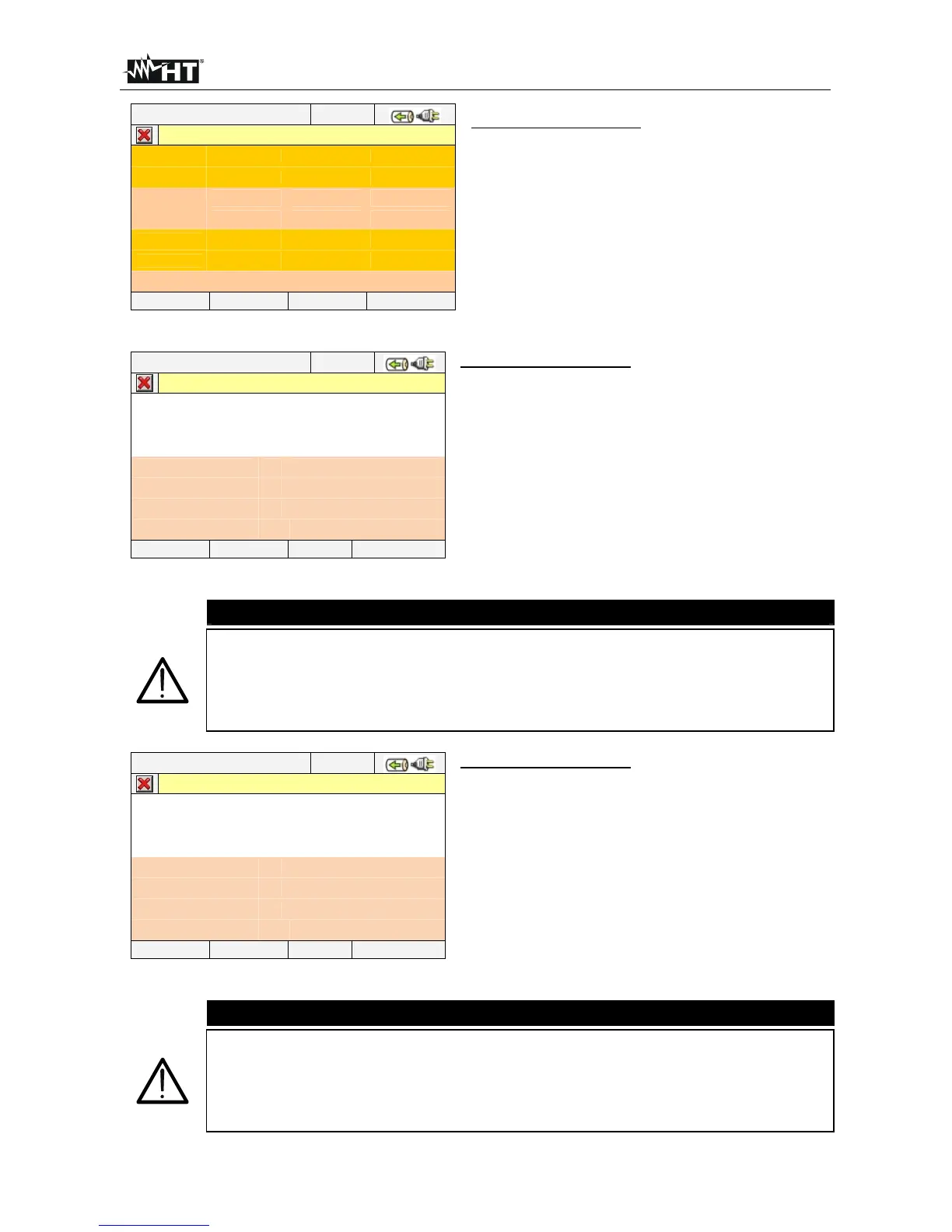

FLICKER – Page x/y
V12 V23 V31
Pst1’ 0.0
0.0 0.0
Pst
0.0 0.0 0.0
Pst max
0.0 0.0 0.0
Plt
0.0 0.0 0.0
Plt max
0.0 0.0 0.0
Recording Time: 00h – 00min
PAGE SCOPE HARM VECTORS
PARAMETERS CAPTION:
Pst1’  Short term severity after 1 minute
Pst  Short term severity
Pstmax  Maximum short term severity
Plt  Long term severity
Pltmax  Maximum long term severity
Recording Time  real time duration of recording
expressed in HH:MM
Fig. 39: Page of Flicker values
25/01/2013 – 16:55:10
TOT. ENERGY CONSUMPTION – Page x/y
Eact = 0 kWh
Ppeak = 0 kW
Date Ppeak : -- / -- / -- 00:00:00
Start rec. : -- / -- / -- 00:00:00
Stop rec. : -- / -- / -- 00:00:00
Rec. Time : - - -
Int. Per. : - - - Rec: - -
PAGE SCOPE HARM VECTORS
PARAMETERS CAPTION:
Eact Total active energy consumed when starting
recording.
Ppeak  Maximum peak of consumed active power.
Date Ppeak  Date and time in which the peak occurred.
Start rec.  Date when recording was started.
Stop rec.  Date when recording was stopped.
Rec. Time  Time elapsed from Rec Start.
Int. Per.  Value of the set integration period.
Rec  Number of the recording in progress
Fig. 40: Consumed energy page
CAUTION
The Total Consumed Energy page is shown only if the instrument has been
set for the Recording of the General Parameter Total “Active Power &
Energy” (see § 5.4.6.1). Values will be shown only during or at the end of a
recording and zeroed upon starting a new recording or when the instrument
is switched off
25/01/2013 – 16:55:10
TOT. ENERGY PRODUCTION – Page x/y
Eact = 0 kWh
Ppeak = 0 kW
Date Ppeak : -- / -- / -- 00:00:00
Start rec. : -- / -- / -- 00:00:00
Stop rec. : -- / -- / -- 00:00:00
Rec Time : - - -
Int. Per. : - - - Rec: - -
PAGE SCOPE HARM VECTORS
PARAMETERS CAPTION:
Eact Total active energy produced when starting
recording.
Ppeak  Maximum peak of produced active power.
Date Ppeak  Date and time in which the peak occurred.
Start rec.  Date when recording was started.
Stop rec.  Date when recording was stopped.
Rec Time  Time elapsed from Rec Start.
Int. Per.  Value of the set integration period.
Rec  Number of the recording in progress
Fig. 41: Producted energy page
CAUTION
The Total Produced Energy page is shown only if recording parameter “Co-
generation” has been set in the instrument (see § 5.4.5) and if general
parameter Total “Active Power & Energy” has been selected (see § 5.4.6.1).
Values will be shown only during or at the end of a recording and zeroed
upon starting a new recording or when the instrument is switched off.
