PQA400 - PQA823 - PQA824
EN - 53

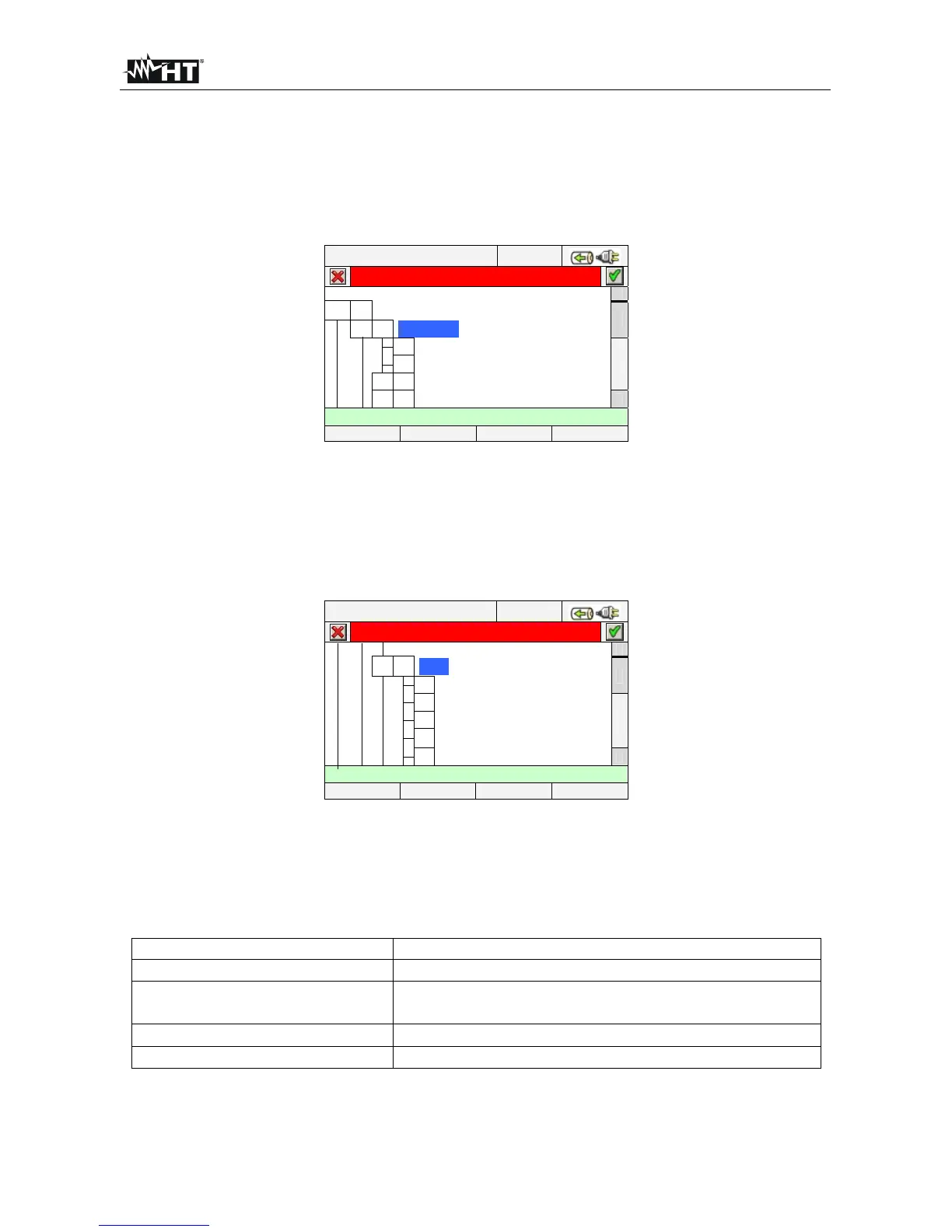

5.4.6.2. Harmonics: sub-levels description
Press F1 key (alternatively touch CLP/EXP at display) to expand or compress the
harmonics sub-levels. The parameters inside sub-levels are strictly depending on type of
selected system (see § 5.3.1). Below there are some pictures of different possible
situations:
12/09/2006 – 16:55:10
RECORDING SETTINGS
-
Harmonics
-
Voltages
THD
DC
+
Odd
+
Even
162/251 Parameters – Autonomy: 19d 0h
CLP/EXP PREDEF. SEL MODIFY
Fig. 99: Harmonics sub-levels: initial parameters selection
Inside Harmonics level there is another sub-level where an accurate selection of harmonic
parameters is possible. Move the cursor on “Odd” or “Even” using arrows key and press
F1 key (or touch CLP/EXP at display). The result, referred to Odd harmonics is below
shown:
12/09/2006 – 16:55:10
RECORDING SETTINGS
-
Odd
Harmonic1
Harmonic3
Harmonic5
Harmonic7
Harmonic9
162/251 Parameters – Autonomy: 19g 0h
CMP/EXP PREDEF. SEL MODIFY
Fig. 100: Harmonics sub-levels: odd harmonics selection
Press F3 key (alternatively touch SEL at display) to select/unselect the desired
parameters. The number of selected and recording autonomy are automatically updated
from meter. The below harmonic parameters can be selected for recording (see § 10.2):
Type of system Selectable parameters
Single phase
THD%, DC, h01
h49 (V1N, V2N, V3N, VN-PE, I1, I2,
I3, IN)
Three phase 3-wire
THD%, DC, h01
h49 (V12, V23, V31, I1, I2, I3)
Three phase 3-wire ARON
THD%, DC, h01
h49 (V12, V23, V31, I1, I2, I3)
Table 6: Selectable parameters of harmonic analysis
