Press SAVE or ENTER keys (or the smart icon ) to save each selection and confirm by
“Ok”. The main screen of Fig. 89 is shown by meter at the end of the operation.
Press ESC key (or the smart icon ) to quit without saving and back to previous screens.
The selection parameters of harmonic analysis require the preliminary selection of
voltages or currents inside General Parameter sub-level. The below error screen are
shown in these cases:
12/09/2006 – 16:55:10
RECORDING SETTINGS
-
Harmonics
+
Voltages
+
Currents
Voltage Anom.: 230V 6%-10%
Inrush current: 30A 1s fix
Flicker
Error: no selected current
CLP/EXP TYPICAL SEL MODIFY

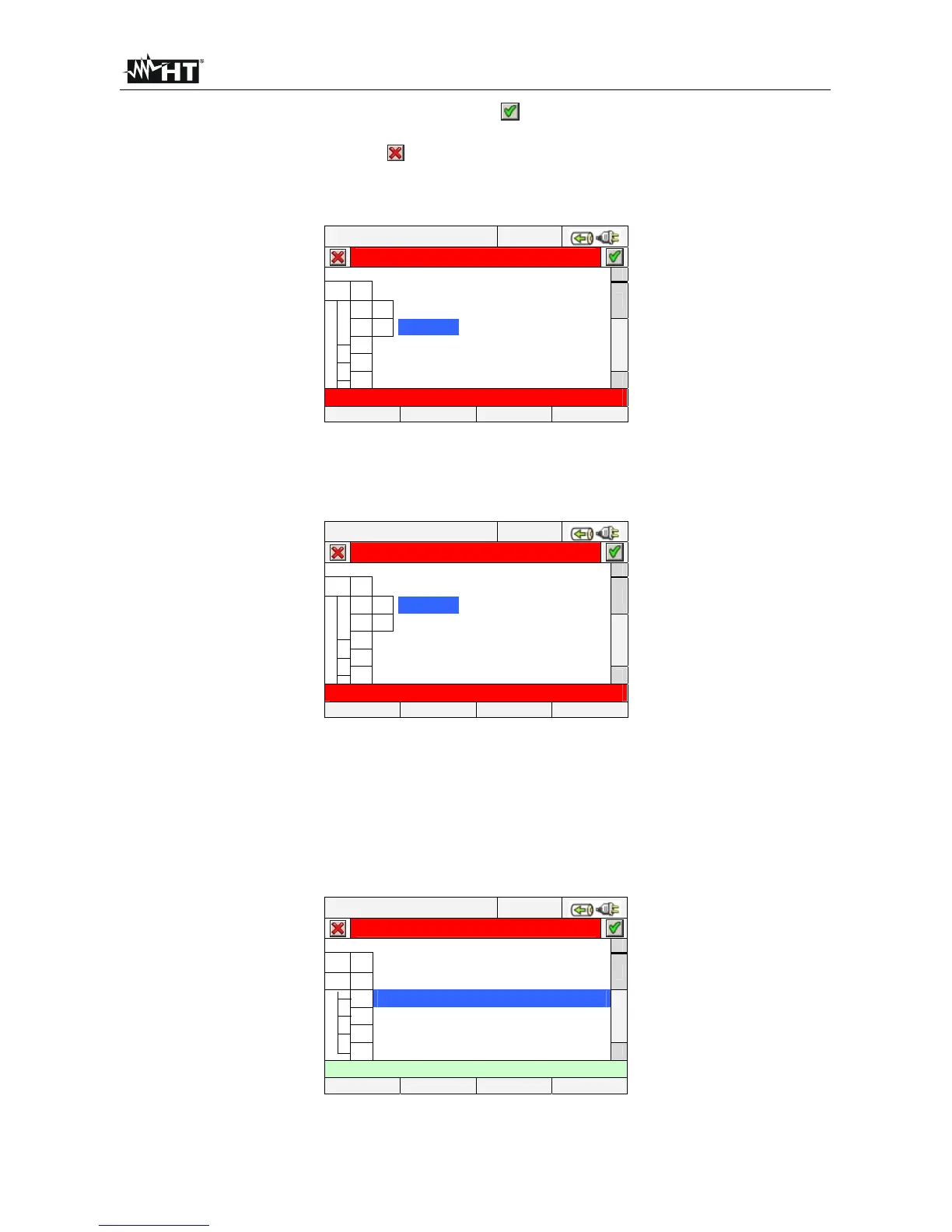

Fig. 101: No selected currents error screen
To solve the error (see Fig. 101) situation of above screen select the “Current” inside
“General Parameter” sub-level (see § 5.4.6.1).
12/09/2006 – 16:55:10
RECORDING SETTINGS
-
Harmonics
+
Voltages
+
Currents
Voltage Anom.: 230V 6%-10%
Inrush current: 30A 1s fix
Flicker
Error: no selected voltage
CLP/EXP PREDEF. SEL MODIFY
Fig. 102: No selected voltages error screen
To solve the error (see Fig. 102) situation of above screen select the “Voltages” inside
“General Parameter” sub-level (see § 5.4.6.1).
5.4.7. Voltage Anomalies
This option permits to set the control parameters relative to voltage anomalies (sags,
swell, supply breaks – see § 10.1) recording which is completely independent from
periodic analysis (regulated by integration period). The below screen is shown by meter:
12/09/2006 – 16:55:10
RECORDING SETTINGS
+
General Parameters
+
Harmonics
Voltage Anom.: 230V 6%-10%
Inrush current: 30A 1s fix
Flicker
Unbalance
132/251 Parameters – Autonomy: 15d 12h
CLP/EXP PREDEF. SEL MODIFY
Fig. 103: Voltage Anomalies selection screen
