PQA400 - PQA823 - PQA824
EN - 34
12/09/2006 – 16:55:10
VOLTAGE HARMONICS
h[%] Phase 1
Thd% 6.5
DC
0.0
h1
100.0
h2
0.0
h3
1.8
h4 0.0
HARM I GRAPHIC HARM PAG
12/09/2006 – 16:55:10
VOLTAGE HARMONICS
h[V] Phase 1
Thd% 6.5
DC
0.0
h1
228.6
h2
0.0
h3
4.2
h4 0.0
HARM I GRAPHIC HARM PAG

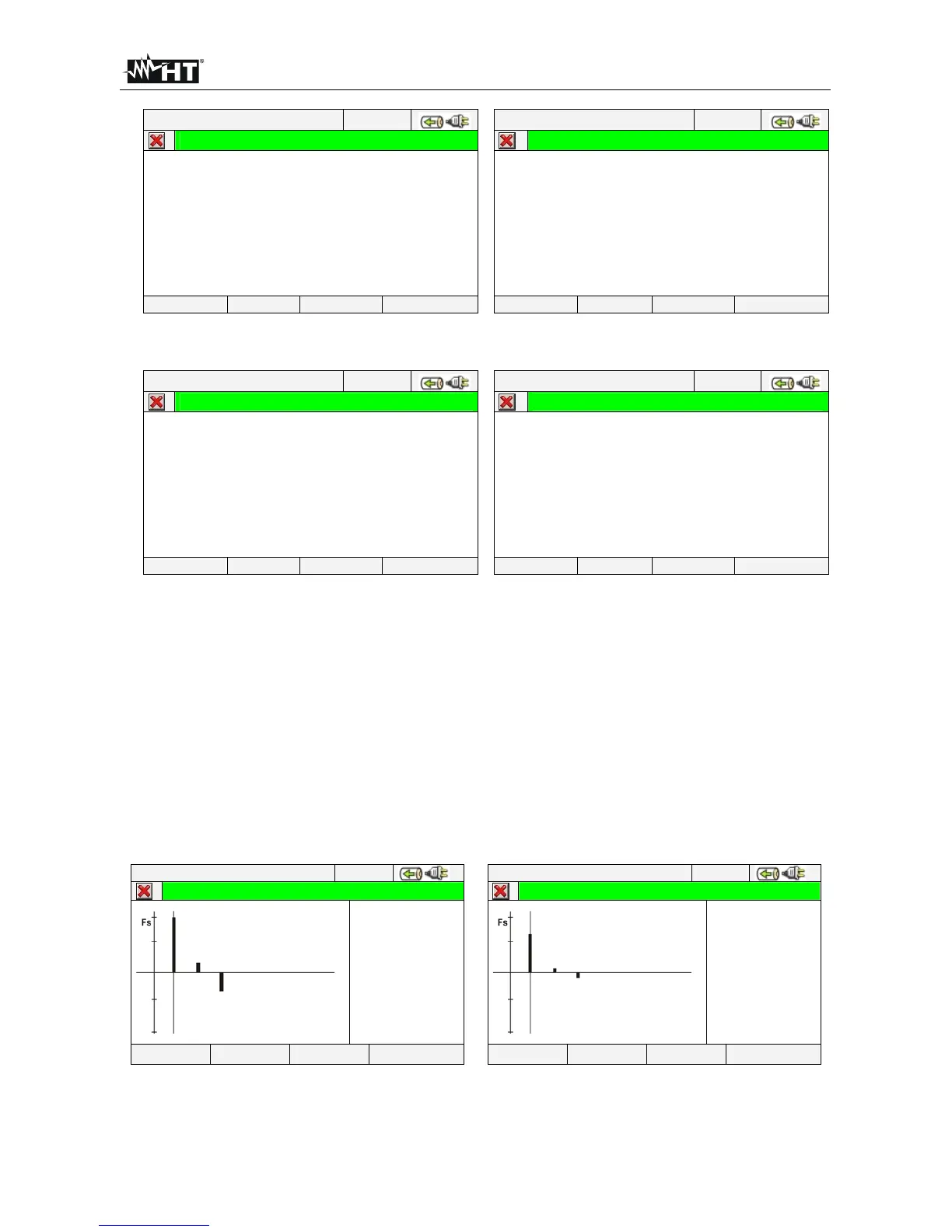

Fig. 67: Harmonic analysis voltage in percentage/absolute for Single phase system
12/09/2006 – 16:55:10
CURRENT HARMONICS
h[%] Phase 1
Thd% 35.5
DC
0.0
h1
100.0
h2
0.0
h3
45.3
h4 0.0
HARM V GRAPHIC HARM PAG
12/09/2006 – 16:55:10
CURRENT HARMONICS
h[A] Phase 1
Thd% 35.5
DC
0.0
h1
199.7
h2
0.0
h3
90.6
h4 0.0
HARM V GRAPHIC HARM PAG
Fig. 68: Harmonic analysis current in percentage/absolute for Single phase system
Press F3 key to back to graphical screens and F2 key to change voltages’ or currents’
screens. Press F4 key or the up and down arrows (or touch the “HARM PAG” at display)
to show the screens relative to other harmonics orders up to 49
st
.
Harmonics values of single V1, V2, V3 voltages and neutral voltage Vn and single
currents I1, I2, I3 and neutral current In (for three phase 4-wire system, not available
for PQA400) with THD% values both with histogram graphics and with numerical
values in percentage or absolute value depending on the desired settings. These
values are shown in four pages selectable by pressing cyclically the F1 key (or touch
the “PAGE” at display). On Fig. 69 end Fig. 70 are display as an example, the situation
relative to L1 phase for voltage and current on 4-wire systems is shown in the next
pictures:
12/09/2006 – 16:55:10
PHASE1 HARM VOLTAGE – Pag 2/5
h 01
Fs 100%
1h
228.6V
Thd
6.5%
PAGE HARM I TABLE HARM PAG
Fig. 69: Harmonic analysis voltage V1 in percentage/absolute values for 4-wire system
