HTP Hydra Smart Series - Gas Valve Replacement Parts; Fan Motor and AGM Replacement Parts

lp-505 Rev. 000 Rel. 015 Date 1.7.20
67
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
1
Fan and AGM Assembly NG 7850P-150 2-2 Gas Valve Plug Bracket 7850P-157
Fan and AGM Assembly LP 7850P-151 2-3 Gas Valve Adapter Straight 7850P-077
1-1 Fan 7850P-002 3 1/2” Pipe Gasket (15A) 7855P-072
1-2 O-Ring 7850P-003 4 15A Packing (Non-Asbestos) 7855P-221
1-3 N/A N/A
5 Gas Mixer Bracket 7850P-242
6 Gas Valve Bracket 7850P-158
1-4 AGM (Actuator) 7850P-152 7 Silencer Elbow 7850P-159
1-5 Silencer Body 7850P-155 8 Gas Pipe (Upper) 7850P-160
2 Gas Valve Assembly 7850P-156 9 Gas Pipe (Lower) 7850P-161
2-1 Gas Valve 7850P-034 10 O-Ring (P18) 7850P-047
Table 42 - 150 Model Combustion System Replacement Parts

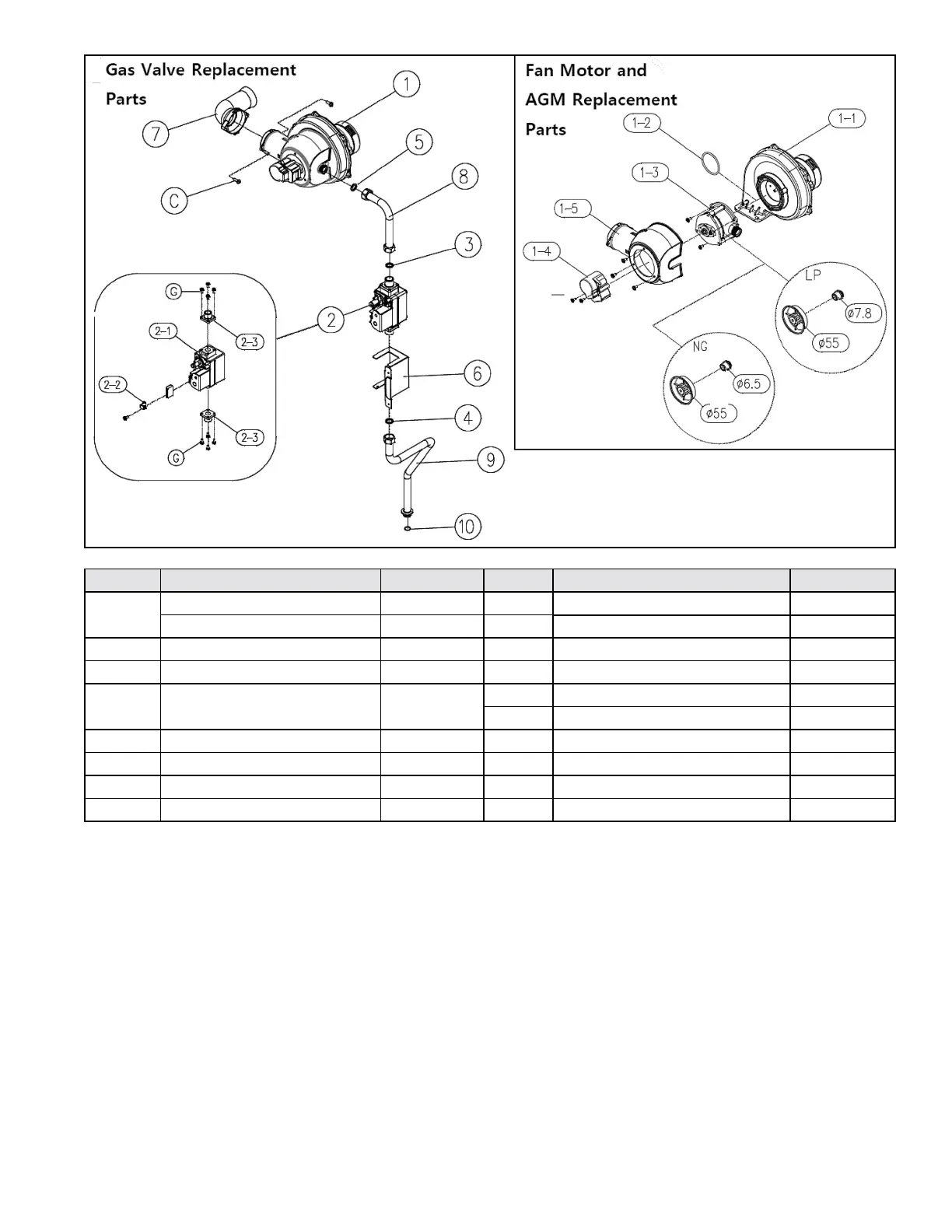

Figure 62 - 150 Model Combustion System Replacement Parts
