lp-505 Rev. 000 Rel. 015 Date 1.7.20
68
Table 43 - 199 Model Cabinet Replacement Parts

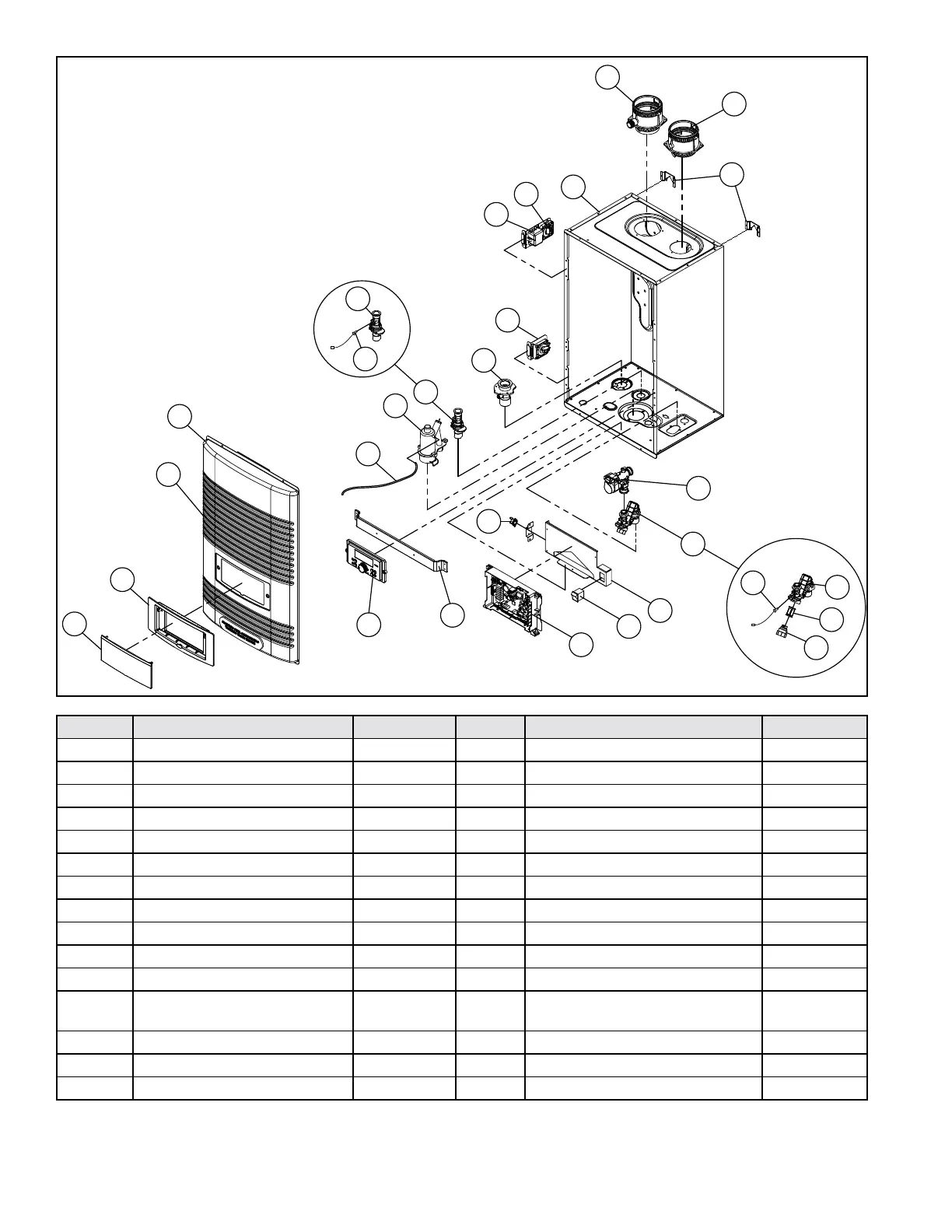

Figure 63 - 199 Model Cabinet Replacement Parts
NUMBER DESCRIPTION PART NUMBER NUMBER DESCRIPTION PART NUMBER
1 Exhaust Assembly 7850P-021 11 Display Bracket 7850P-065
2 Case 7850P-044 12 Display 7850P-057
3 Door Assembly 7850P-025 13 PCB (Control Board) 7850P-058
3-1 Front Cover 7850P-062 14 Control Board Bracket 7850P-066
3-2 Display Panel Bracket 7850P-024 15 Rocker Switch 7850P-059
3-3 Display Panel 7850P-023 16 Flow Control Valve 7850P-053
4 Ignition Transformer 7850P-045 17 Water Inlet Valve Assembly 7850P-018
5 Gas Inlet Nipple 7850P-043 17-1 Water Inlet Valve Body 7850P-067
6 Overheat Sensor 7850P-050 17-2 Water Inlet Sensor 7850P-015
7 DHW Supply Pipe Assembly 7850P-020 17-3 Water Inlet Filter 7850P-017
7-1 DHW Supply Pipe 7850P-063 17-4 Water Inlet Filter Cap 7850P-016
7-2 Water Outlet Sensor 7850P-019 18
Case Bracket
(Right or Left)
7850P-068
8 Siphon Assembly 7850P-014 19 Intake Air Assembly 7850P-022
9 Siphon Air Pressure Hose 7850P-064 Wire Harness (Not Shown) 7850P-173
10 Air Pressure Switch 7850P-047
1
2
3
4
5
7
8
9
10
11
12
14
13
15
16
18
19
17-1
17-2
17-3
17-4
17
7-1
7-2
3-1
3-3
10
6
3-2
To Next Page
