Exterior

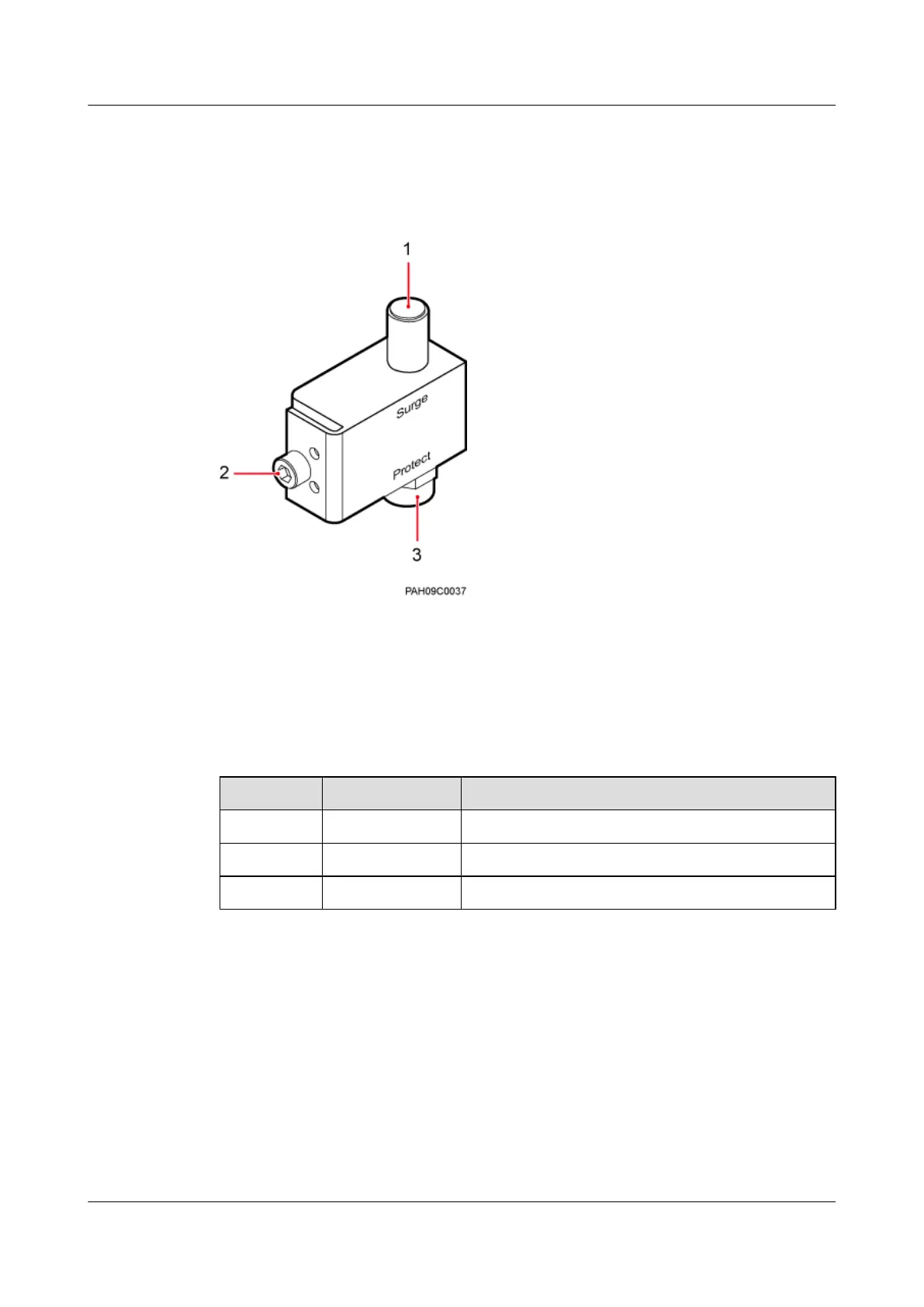

Figure 3-52 shows the GPS surge protector.
Figure 3-52 GPS surge protector
Ports
Table 3-86 describes the ports on the GPS surge protector.
Table 3-86 Ports on the GPS surge protector
SN
Silkscreen Connector
(1) Surge N-type female connector
(2) - Ground terminal
(3) Protect N-type male connector
