Functions
The PDU10D-01 performs the following functions:
l Supports a maximum of two -48 V DC inputs and a maximum of 160 A input current.
l Provides ten DC outputs with six for the RRUs, one for the BBU, one for the HEUB, and
two reserved.
Ports
Figure 4-11 shows ports on the PDU10D-01 and Table 4-10 describes these ports.

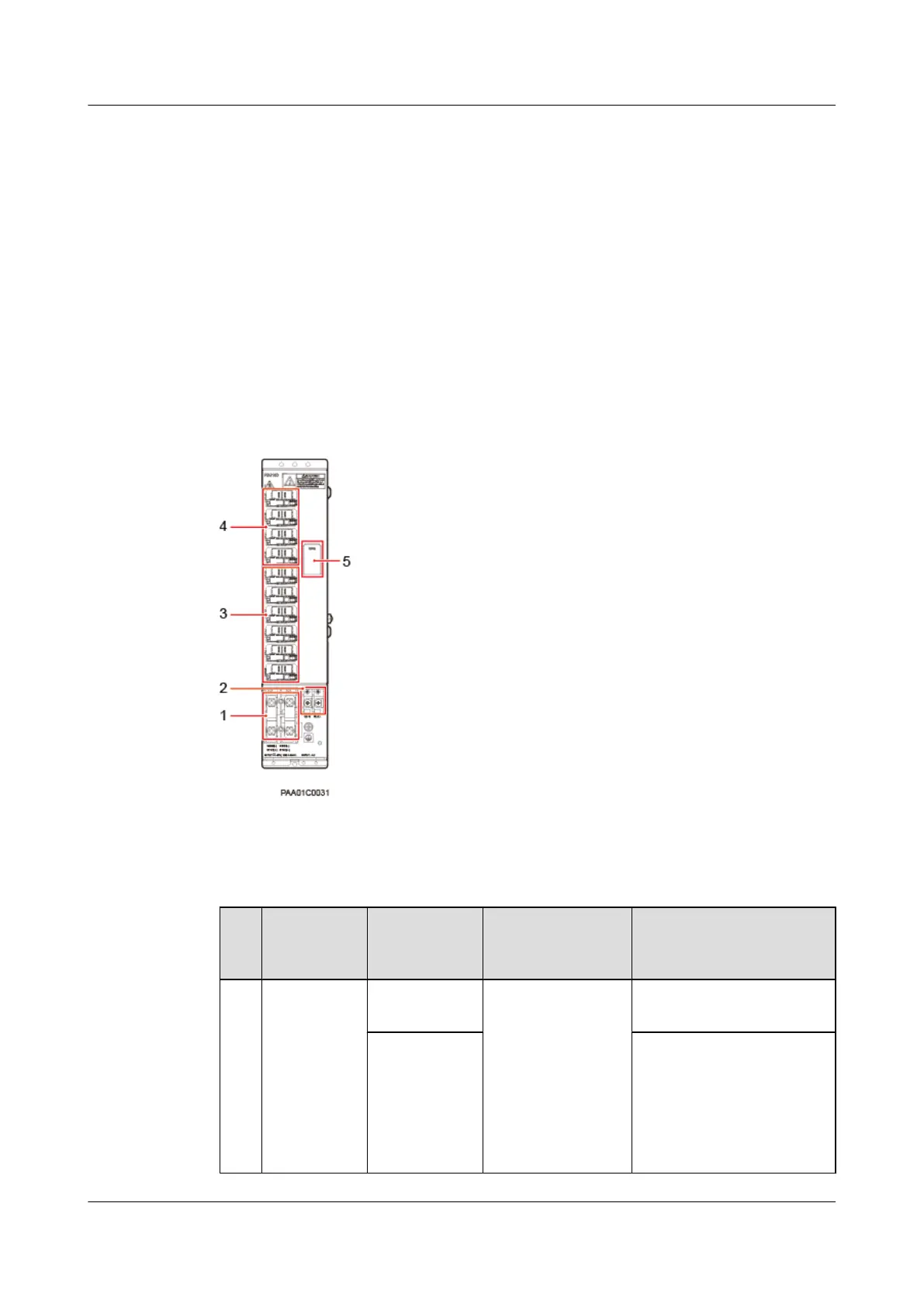

Figure 4-11 Ports on the PDU10D-01
Table 4-10 Ports on the PDU10D-01
No
.
Port Silkscreen Matched
Terminal and
Cable
Description
1 DC input
terminals
NEG(-) One-hole OT
terminal (M6). The
maximum cross-
sectional area of the
cable supported is
25 mm
2
(0.039 in.
2
)
for one input or 16
mm
2
(0.025 in.
2
) for
two inputs.
Negative power input wiring
terminal
RTN(+) Positive power input wiring
terminal
BTS3900C (Ver.C)
Hardware Description 4 BTS3900C Power System
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
104
