Monitoring Signal Cable Connections for a BTS3900C AC Cabinet
Figure 7-9 shows the monitoring signal cable connections for a BTS3900C AC cabinet. Table
7-17 describes the monitoring signal cables in a BTS3900C AC cabinet.

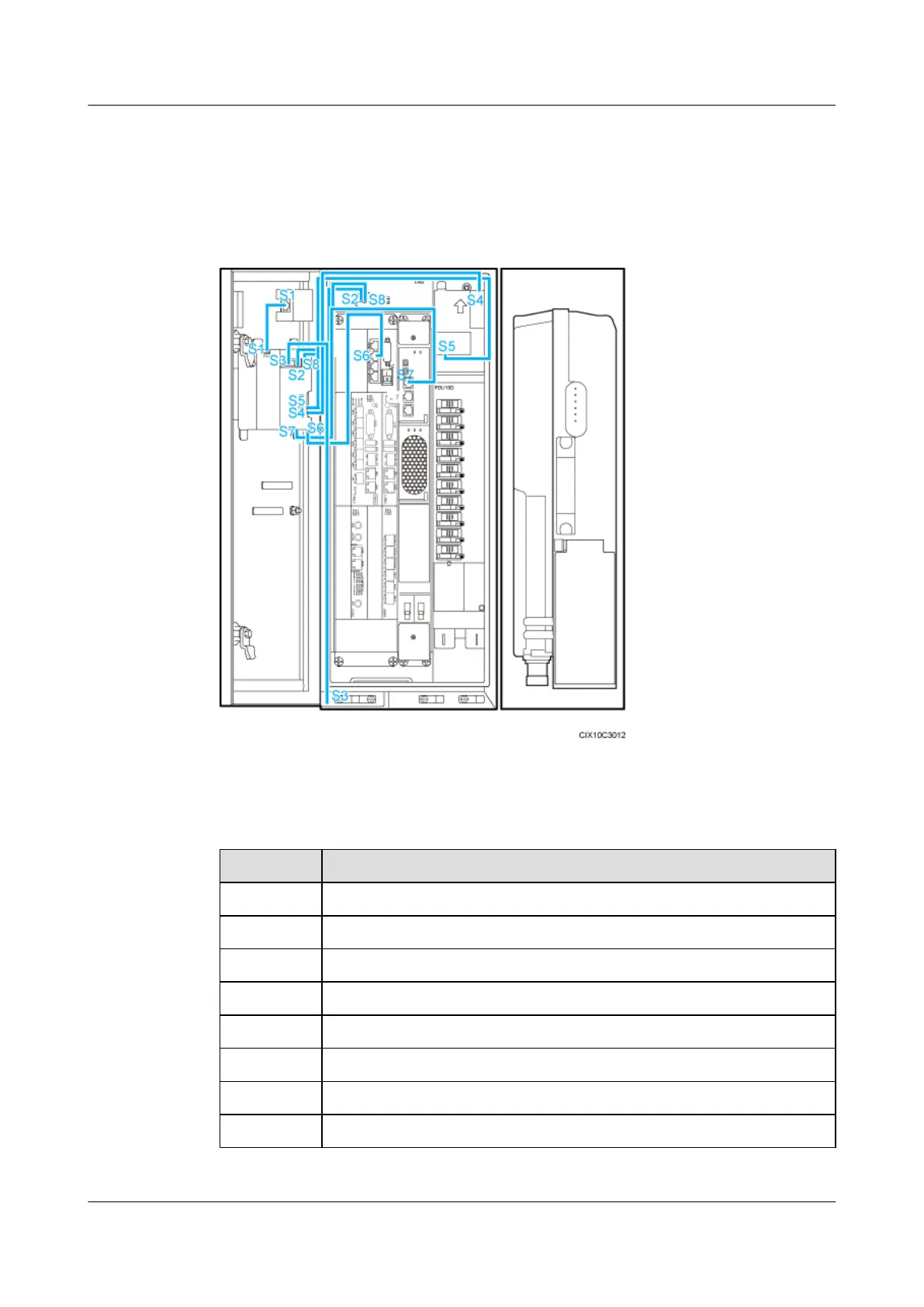

Figure 7-9 Monitoring signal cable connections for a BTS3900C AC cabinet
Table 7-17 Monitoring signal cables in a BTS3900C AC cabinet
Cable No.
Cable Description
S1 ELU signal cable
S2 Monitoring signal cable for the outer air circulation fan
S3 Monitoring signal cable for the inner air circulation fan
S4 Monitoring signal cable for the door status sensor
S5 Monitoring signal cable for the surge protection box
S6 HEUB-BBU monitoring signal cable
S7 PMU 11A monitoring signal cable
S8 Temperature monitoring signal cable
