Huawei BTS3900C User Manual

Board Number of Cells
Supported
Number of UL CEs Number of DL
CEs
WBBPf1 6 192 256
WBBPf2 6 256 384
WBBPf3 6 384 512
WBBPf4 6 512 768
The following table lists the specifications of the WBBP.
Table 3-22 HSPA specifications
Board Number of
HSDPA Codes
Number of
HSDPA UEs
Number of
HSUPA UEs
WBBPa 3x15 96 60
WBBPb1 3x15 64 64
WBBPb2 3x15 128 96
WBBPb3 6x15 144 96
WBBPb4 6x15 144 96
WBBPd1 6x15 128 96
WBBPd2 6x15 144 144
WBBPd3 6x15 144 96
WBBPf1 6x15 144 144
WBBPf2 6x15 192 192
WBBPf3 6x15 256 256
WBBPf4 6x15 384 384
NOTE
For the combined signaling specifications of the WBBP, see section "Signaling Specifications" in 3900
Series Base Station Technical Description.
Panel
The WBBP has four types of panels, as shown in Figure 3-20, Figure 3-21, Figure 3-22, and
Figure 3-23.

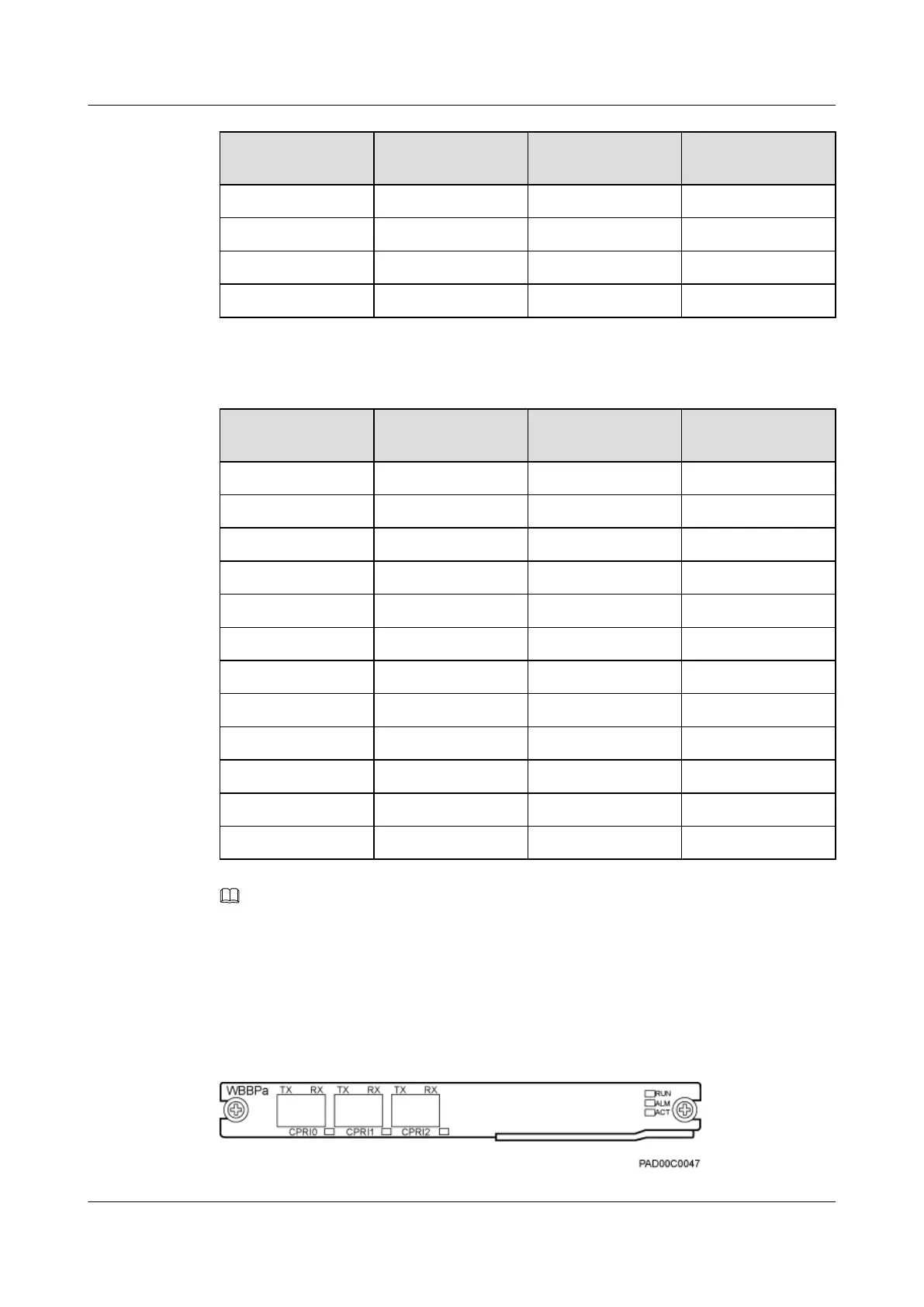

Figure 3-20 Panel of the WBBPa
BTS3900C (Ver.C)
Hardware Description 3 BTS3900C Modules
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
44
