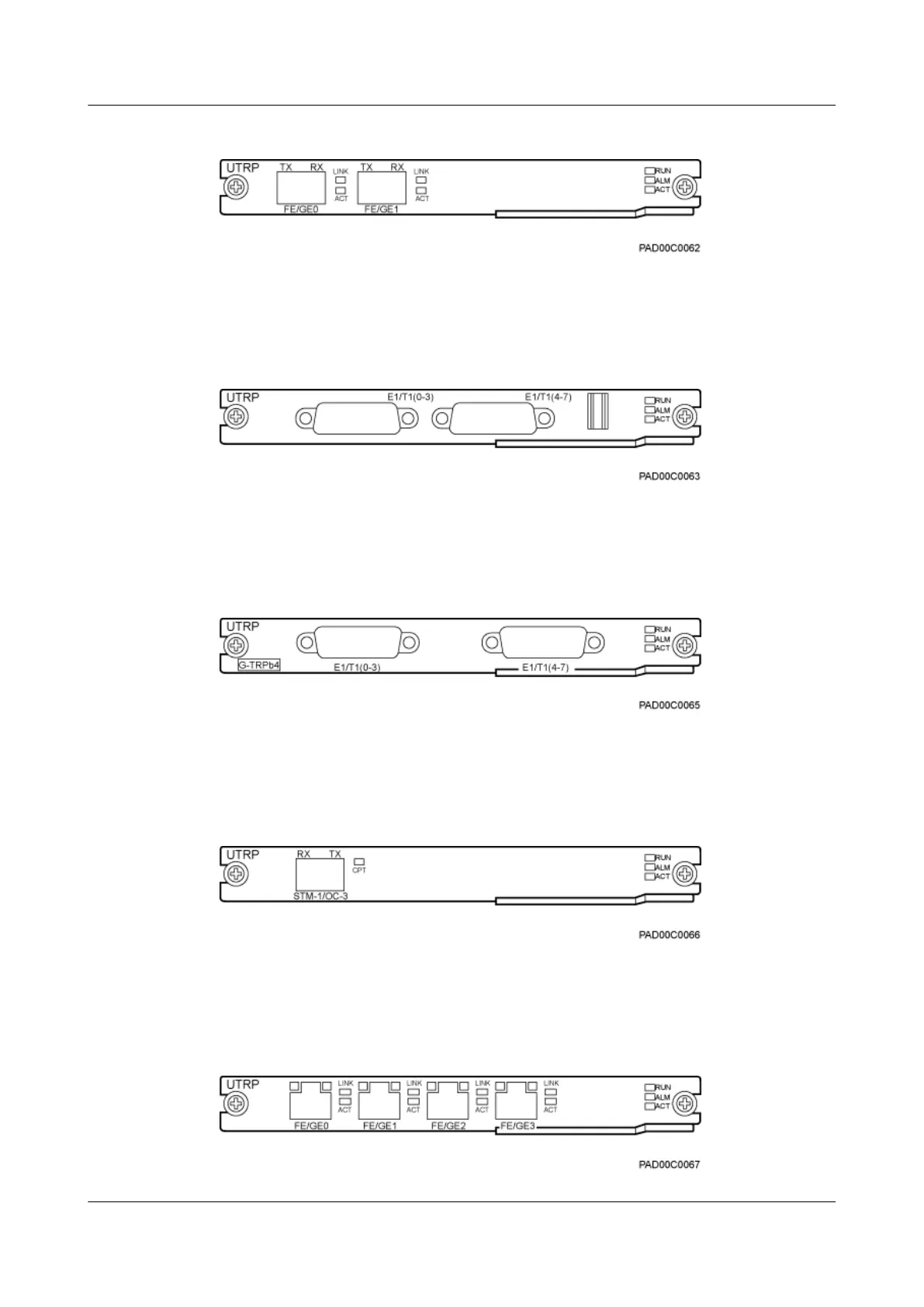

Figure 3-37 Panel of the UTRP2 (with two optical ports)
Figure 3-38 shows the panel of the UTRP3 and UTRP4.
Figure 3-38 Panel of the UTRP3 and UTRP4 (with eight E1/T1 channels)
Figure 3-39 shows the panel of the UTRPb4 in GSM mode.
Figure 3-39 Panel of the UTRP4 (with eight E1/T1 channels)
Figure 3-40 shows the panel of the UTRP6.
Figure 3-40 Panel of the UTRP6 (with one STM-1 channel)
Figure 3-41 shows the panel of the UTRP9.
Figure 3-41 Panel of the UTRP9 (with four electrical ports)
BTS3900C (Ver.C)
Hardware Description 3 BTS3900C Modules
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
76
