Table 3-68 Ports on the panel of the UTRP9 (with four electrical ports)
Silkscreen Port Type Quantity Connector
FE/GE0 to FE/GE3 FE/GE electrical port 4 RJ45 connector
Table 3-69 describes the ports on the panel of the UTRPc.
Table 3-69 Ports on the panel of the UTRPc (with four electrical ports and two optical ports)
Silkscreen Port Type Quantity Connector
FE/GE0 and FE/GE1 FE/GE optical port 2 SFP female
connector
FE/GE2 to FE/GE5 FE/GE electrical port 4 RJ45 connector
DIP Switch
There is no DIP switch on the UTRP2, UTRP6, and UTRP9.
There are three DIP switches on the UTRP3, UTRP4, and UTRPb4. SW1 and SW2 are used to
set whether to ground the receiver end of the E1 cable, and SW3 is used to set the resistance of
the E1 cable. Figure 3-43 shows the DIP switches on the UTRP3 and UTRP4. Figure 3-44
shows the DIP switches on the UTRPb4.

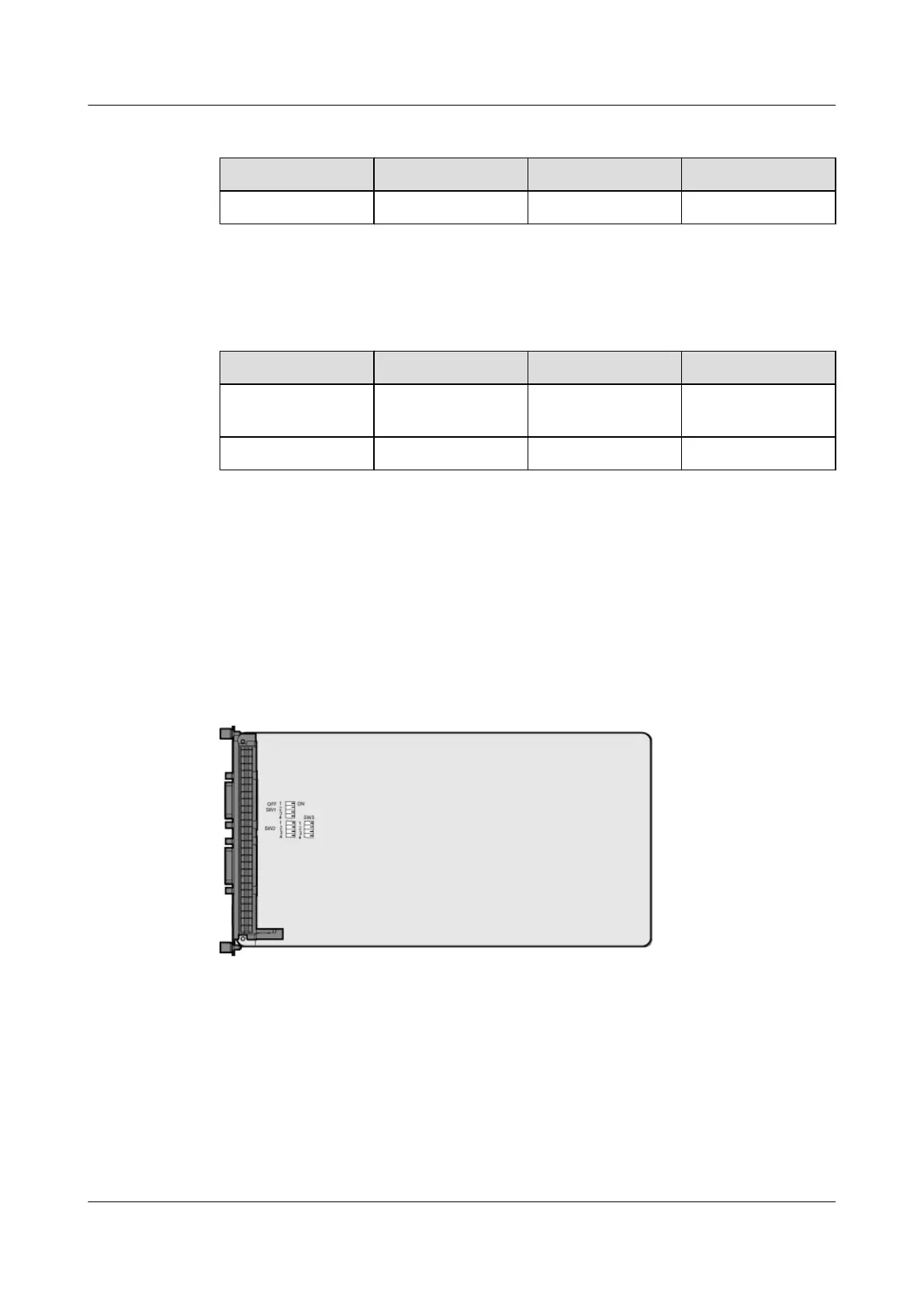

Figure 3-43 DIP switches on the UTRP3 and UTRP4
BTS3900C (Ver.C)
Hardware Description 3 BTS3900C Modules
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
81
