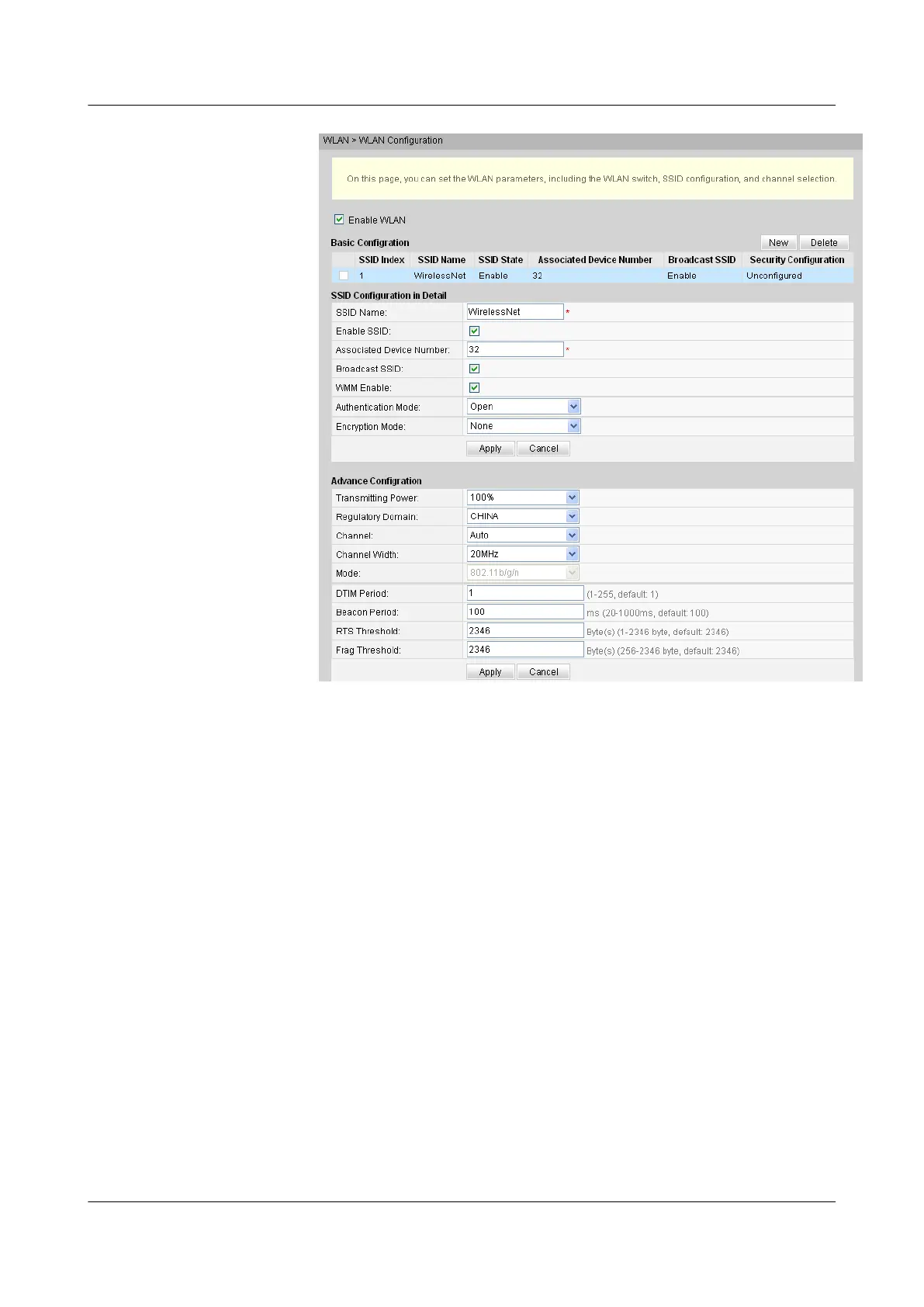

c. Click Apply to apply the configuration.
2. Configure the parameters of the Layer 3 bridge WAN port.
a. In the navigation tree, choose WAN > WAN Configuration.
b. In the right pane, click New. In the dialog box that is displayed, configure
parameters of the WAN port as follows:
– WAN Connection: Enable
– Mode: Bridge
– VLAN ID: 40 (The VLAN ID of the ONT must be the same as the user-side
VLAN ID configured on the OLT.)
– 802.1p: 1
– Bridge Type: PPPoE_Bridged
– Binding options: SSID1
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
230
