b. In the information list, right-click and choose Add from the shortcut menu.

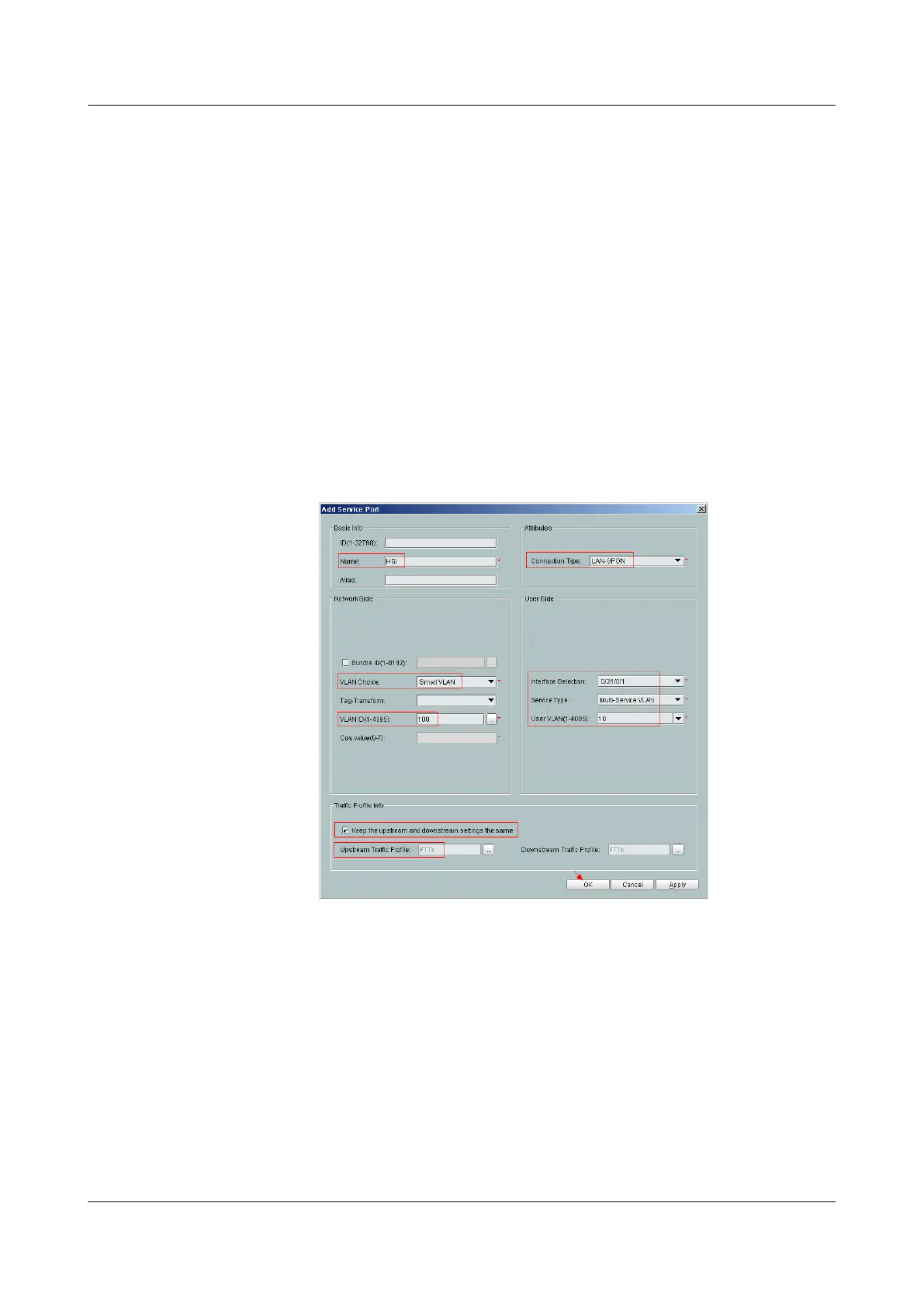

c. In the dialog box that is displayed, set the parameters.
– Name: HSI
– VlAN Choice: Smart VLAN
– VLAN ID: 100 (SVLAN ID)
– Connection Type: LAN-GPON (when the physical port is a GPON port) or
LAN-EPON (when the physical port is an EPON port)
– Interface Selection: 0/2/1/0/1 (when the connection type is LAN-GPON) or
0/2/1/0 (when the connection type is LAN-EPON)
– Service Type: Multi-Service VLAN
– User VLAN: 10
– Keep the upstream and downstream settings the same: selected
– Upstream Traffic Name: ip-traffic-table_6 (it is recommended that you use
the default profile ip-traffic-table_6 because the OLT does not limit the rates
of service streams in the management VLAN)
d. Click OK.
3. Configure the value-added service profile of the ONT.
a. From the main menu, choose Configuration > Access Profile Management. In
the navigation tree of the tab page that is displayed, choose PON Profile > ONT
VAS Profile.
b. On the ONT VAS Profile tab page, right-click, and choose Add from the shortcut
menu.
c. In the dialog box that is displayed, set relevant parameters.
– Profile Name: ONT-HSI
– Vendor ID: HWTC(2011)
– Terminal Type: 247
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
58
