Huawei FusionDC1000A User Manual

Fireproof Door End Door (Main
Entrance)
Device Installation
Door/Emergency Door
Door opening mode The door opens in and
out the pre-fab. module.
The door opens in the
pre-fab. module.
3.5 Pre-fab. Module Interior Layout
NO TE
261.5 mm refers to the height of the smart cooling product piping support.
N+X Scenario

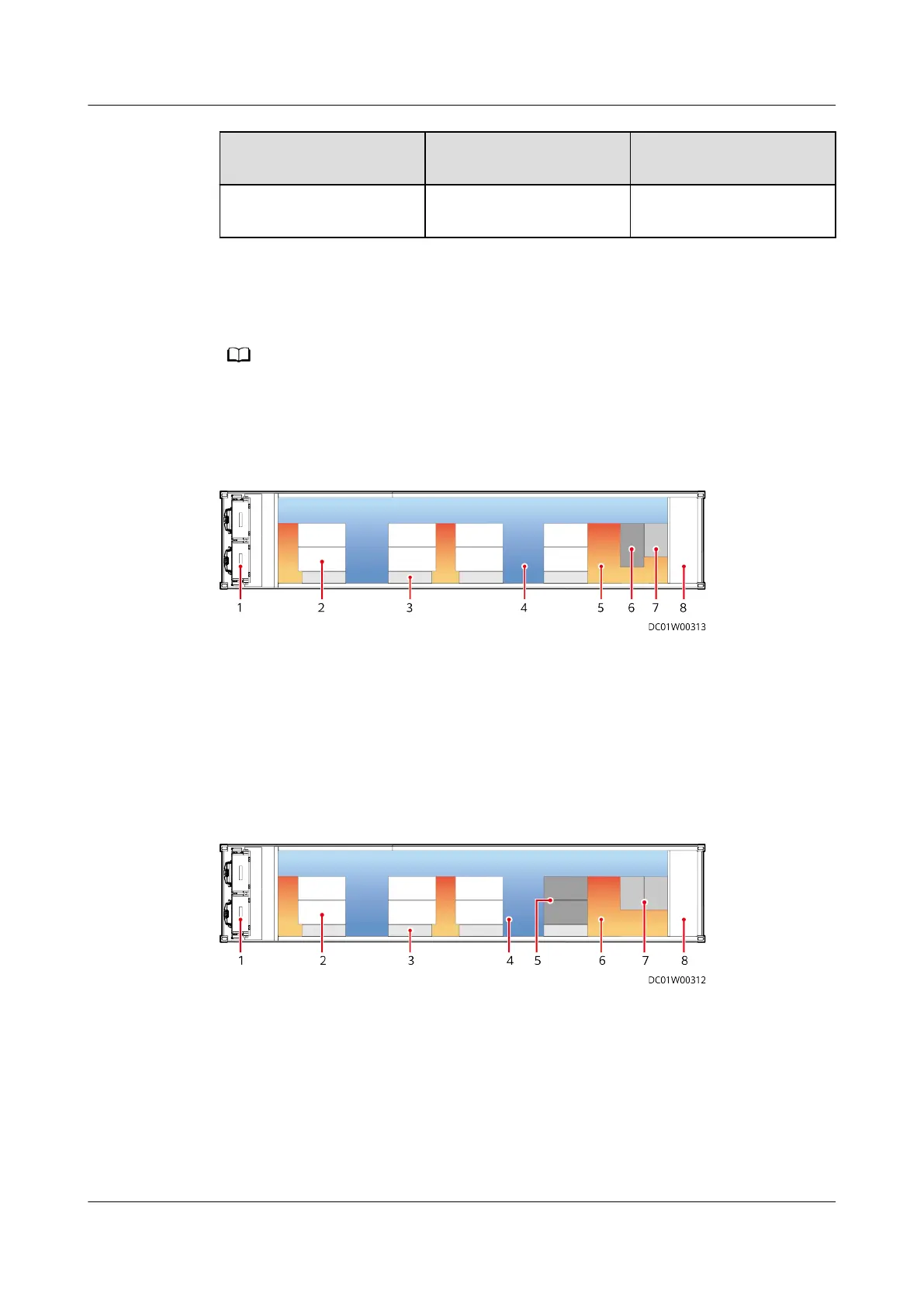

Figure 3-5 Interior layout (unit: mm)
(1) Smart cooling product
outdoor unit compartment
(2) IT cabinet (3) Smart cooling product
indoor unit
(4) Cold aisle (5) Hot aisle (6) Integrated UPS
(7) SmartLi (8) Entrance room
2N Scenario
Figure 3-6 Interior layout (unit: mm)
(1) Smart cooling product
outdoor unit compartment
(2) IT cabinet (3) Smart cooling product
indoor unit
(4) Cold aisle (5) Integrated UPS (6) Hot aisle
(7) SmartLi (8) Entrance room
3.6 Components Inside the Pre-fab. Module
FusionDC1000A Prefabricated All-in-One Data
Center
Product Description (IT Scenario) 3 Structural system
Issue 01 (2021-04-20) Copyright © Huawei Technologies Co., Ltd. 17
