Huawei FusionDC1000A - Main Control Module

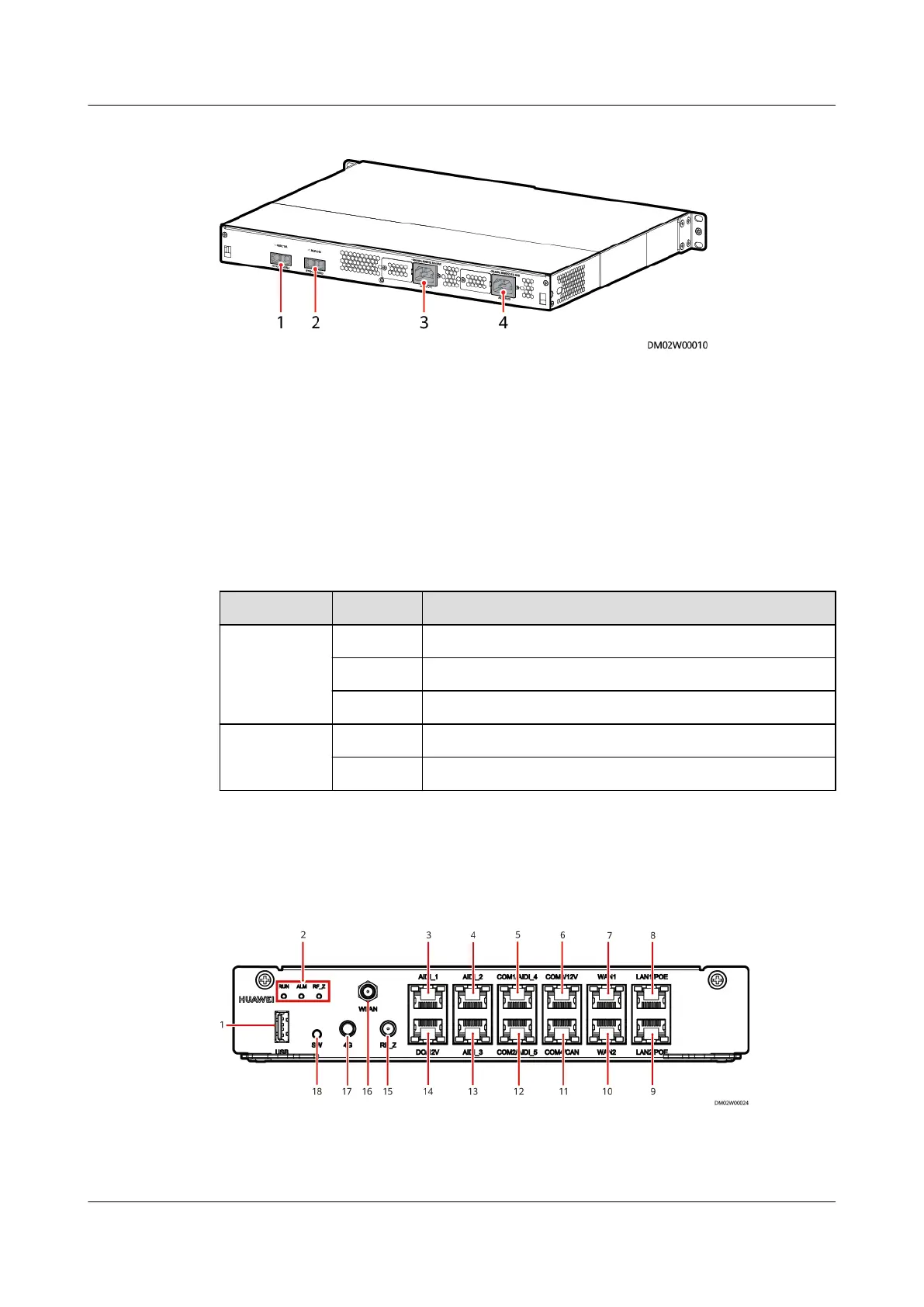

Figure 6-4 ECC800-Pro (rear view)
(1) 53.5 V DC_OUT1 (2) 53.5 V DC_OUT2 (3) AC_INPUT1
(4) AC_INPUT2
Power Ports
The ECC800-Pro provides four power ports, including two AC input ports
(AC_INPUT1 and AC_INPUT2) and two DC output ports (DC_OUTPUT1 and
DC_OUTPUT2).
Table 6-4 Power port pin denitions
Port Type
Pin Description
AC Pin1 L
Pin2 PE
Pin3 N
DC Pin1 48 V+
Pin2 48 V GND
6.2.2 Main Control Module
Figure 6-5 ECC800-Pro collector main control module
(1) USB
(2) Status indicator (3) AIDI_1 (4) AIDI_2
(5) COM1/AIDI_4 (6) COM3/12V (7) WAN1 (8) LAN1/POE
FusionDC1000A Prefabricated All-in-One Data
Center
Product Description (IT Scenario) 6 Management System
Issue 01 (2021-04-20) Copyright © Huawei Technologies Co., Ltd. 67
