FusionModule500 Smart Mini Data Center
Product Description (ECC800e)
3 System Architecture
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
35

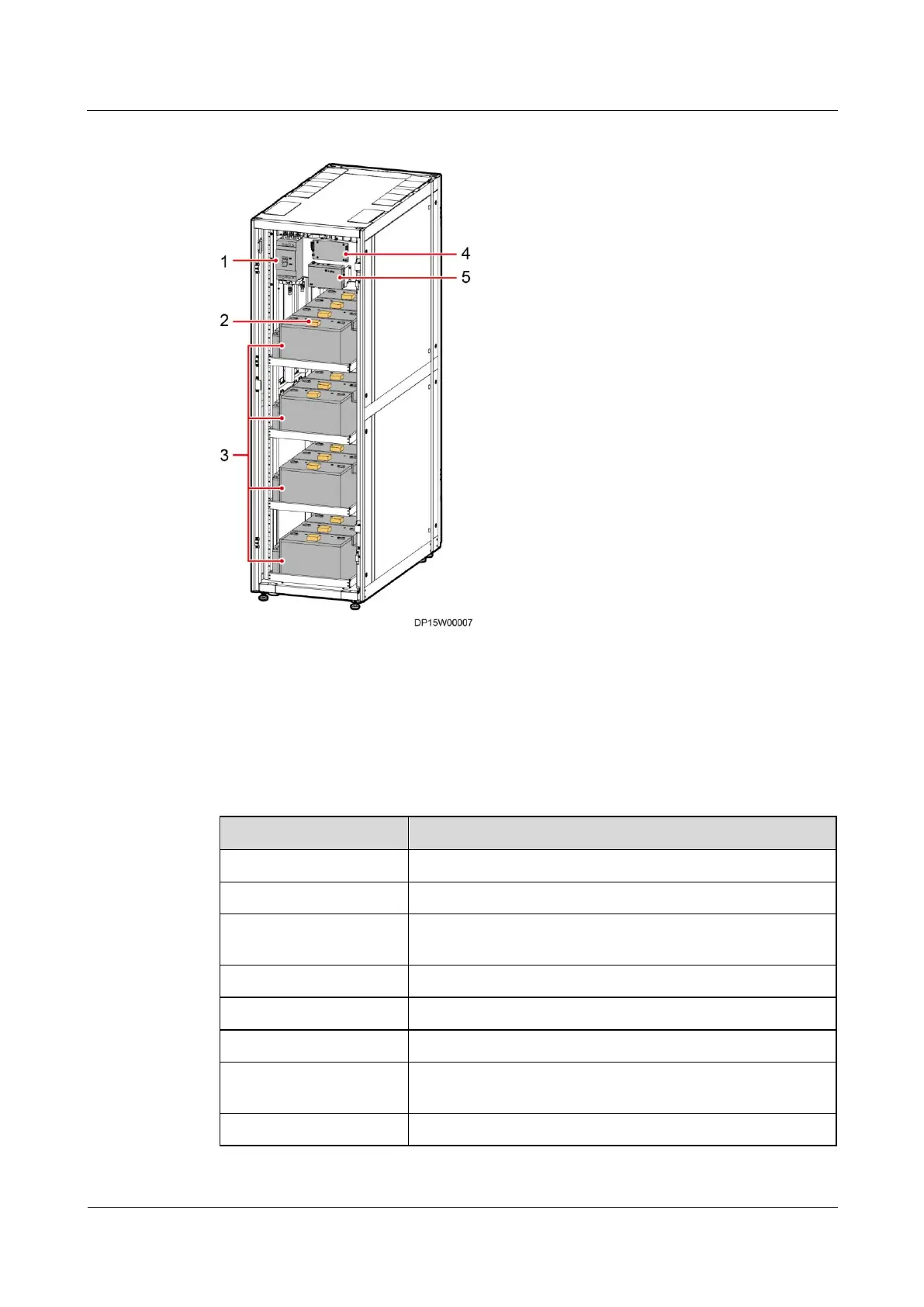

Figure 3-13 Battery cabinet components
(1) Circuit breaker
(2) BIM
(3) Batteries
(4) BIB
(5) CIM
Table 3-15 Battery cabinet technical specifications
Item
Specifications
Dimensions (H x W x D)
2000 mm x 600 mm x 1100 mm
Color
Black
Material
High-intensity class A carbon cold rolled steel plate and
zinc-coated steel plate
Air channel
Front and rear air channels
Installation space
42 U
Installation mode
Installed on a concrete floor or ESD floor
Door opening
The front door is a single door, and the rear door is a double
one.
Static load
1500 kg
