FusionModule500 Smart Mini Data Center
Product Description (ECC800e)
3 System Architecture
Issue 01 (2017-04-20)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
38

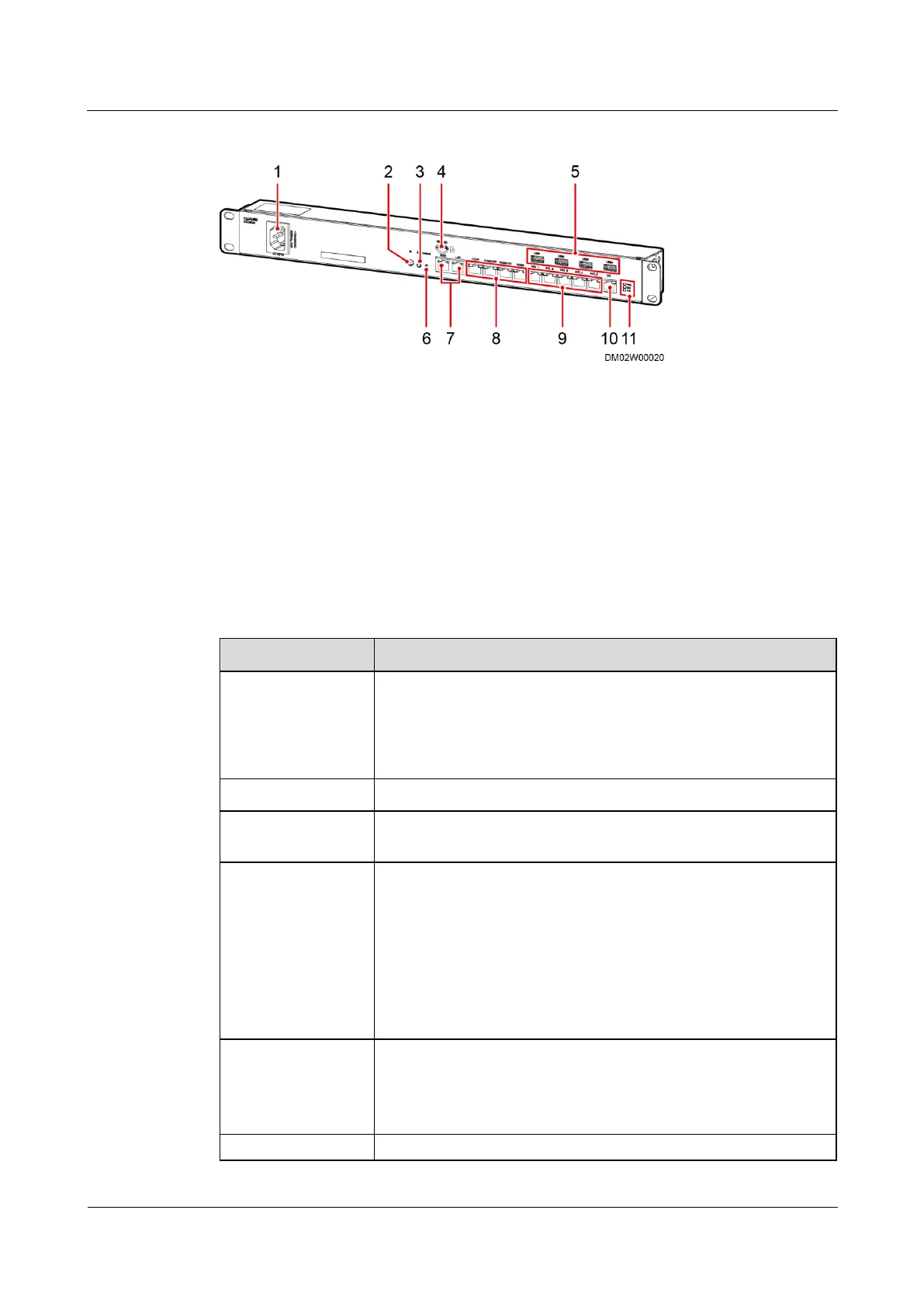

Figure 3-14 Appearance
(1) Power input
socket
(2) Infrared receiver (IR)
(3) SW button
(4) Micro SD port
(5) USB (USB1–USB4) port
(6) Default button
(7) FE port (WAN
port and LAN port)
(8) RS485 port (COM1,
COM2–3/12V) and CAN port
(COM4)
(9) AI/DI_1–5 sensor input
ports
(10) DO dry contact
(11) Status indicator
Table 3-18 Technical specifications
Item
Specification
Power Input

Supports one AC input.

Rated operating voltage: 100-240 V AC.

Rated operating frequency: 50 Hz/60 Hz.

Input current: MAX0.5 A.
System memory
128 MB
FE port expansion
Supports one WAN port, one LAN port, with the 10/100M
communications rate.
RS485 serial port
expansion

Reserves three RS485 ports with the default communications
rate of 9600 bit/s.

COM2–3 ports providing 12 V DC power with the rated current
of 450 mA.
NOTE

The Pin 1, Pin 2, Pin 4, and Pin 5 in the COM4 port provide the RS485
signal. These four pins are shared with the COM3 port.

The Pin 7 and Pin 8 in the COM4 port provide the CAN signal.
AI/DI expansion
(RJ45)

Supports five AI/DI ports to connect to smoke sensors, water
sensors, and temperature sensors.

Each port provides 12 V DC power with the rated current of 85
mA.
DO expansion

Supports one expansion dry contact with contact point capacity
