Huawei FusionModule500

FusionModule500 Smart Mini Data Center
Product Description (ECC800e)
3 System Architecture
Issue 01 (2017-04-20)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
51
Pin
Definition
Signal
Descriptio
n
Status
Description
Initial
Status
Remarks
input is
closed.
3
NO
Dry contract
output
signal

Open: The
dry contact
output is
open.

Closed:
The dry
contact
output is
closed.
Open
4
COM
Current Monitoring Port

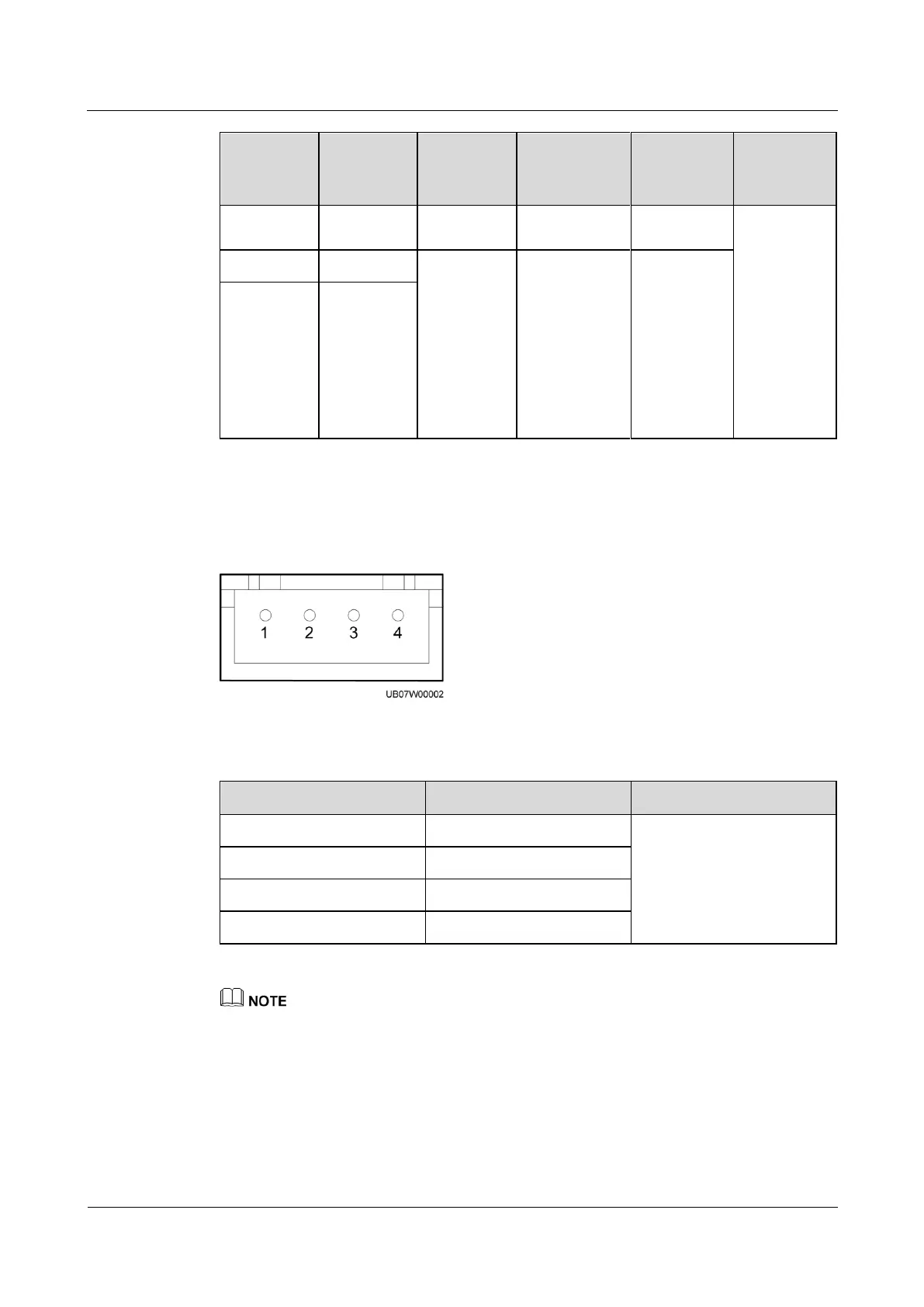

Figure 3-25 Current monitoring port pins
Table 3-33 Current monitoring port pin definitions
Pin
Definition
Description
1
+12 V
Detect the charge and
discharge currents of four
battery strings or eight
battery routes.
2
–12 V
3
AI
4
GND

If the battery string is configured with the neutral wire, measure the currents of the positive and
negative battery string cables. If the battery string is not configured with the neutral wire, measure
the current of either the positive or negative battery string cable. The following uses the scenario
where the battery string is configured with the neutral wire as an example.

When a CIM manages multiple battery strings, first connect the Hall effect sensors on the positive
and negative cables of battery string 1 respectively to the corresponding ports on the CIM. Then
connect the Hall effect sensors on battery string 2 to the CIM in the same way, and so on.
