Installing two T/H sensors when two NetCols are configured

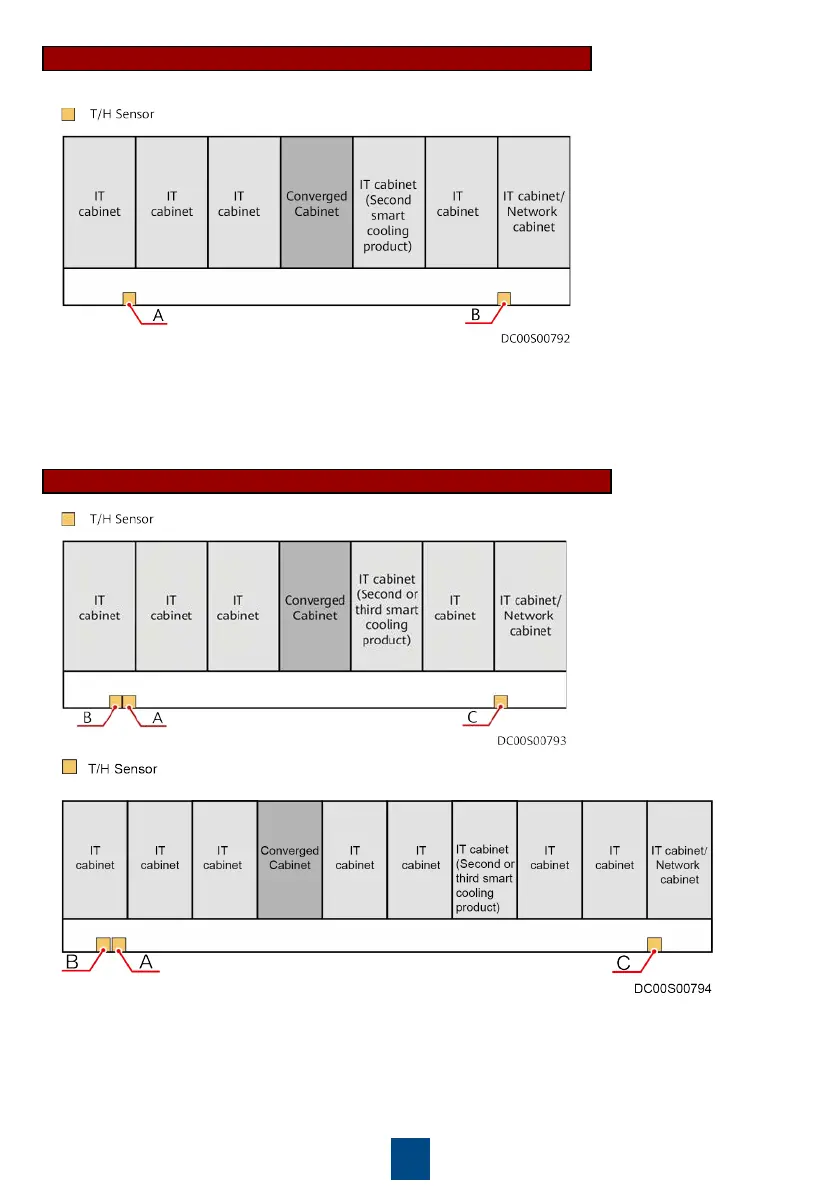

A: Position for installing the T/H sensor for the NetCol at the bottom of the Converged Cabinet,
28 U
B: Position for installing the T/H sensor for the NetCol at the bottom of the IT cabinet, 28 U
Installing three T/H sensors when three NetCols are configured
A: Position for installing the T/H sensor for the NetCol at the bottom of the Converged Cabinet,
28 U
B: Position for installing the T/H sensor for the NetCol at the bottom of the IT cabinet, 28 U
C: Position for installing the T/H sensor for the NetCol at the top of the IT cabinet, 14 U
