Installing an Outdoor Unit
The methods for installing the NetCol500-A018, NetCol500-A020, and NetCol500-A021 are the
same. The NetCol500-A018 is used as an example.
(Front view)
(Top view)
Unit: mm
(Front view)
(Top view)
NetCol500-A018
NetCol500-A020
NetCol500-A021
(Front view)
(Top view)
Unit: mm

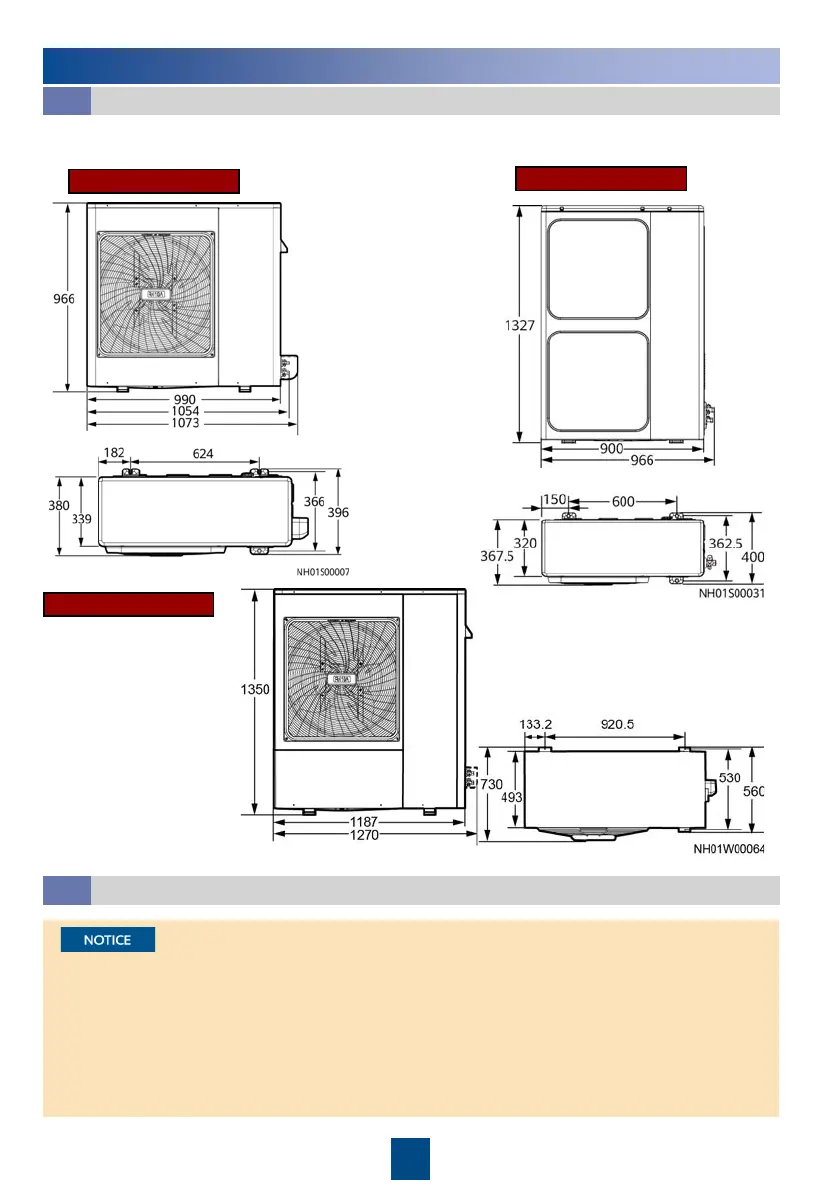

Outdoor Unit Installation Dimensions
5.1
Space Requirements for Installing and Maintaining the Outdoor Unit
5.2
•
To avoid fire disaster, install an outdoor unit in a dry and well-ventilated place without
flammable gas leakage.
•
Select a place away from direct sunshine and radiation from other heat sources. If the
sunshine or heat radiation cannot be avoided, cover the outdoor unit.
•
Do not install an outdoor unit in a place with much salt or corrosive gas.
•
When installing the outdoor unit, ensure that the air intake vent and air exhaust vent of the
condenser are not dirty or blocked. Install an outdoor unit in a clean area that is away from
residential areas.
