(Optional) Installing an In-Room Fingerprint and Card Reader
13.18
(Optional) Installing an In-Room Card Reader with a Keypad
13.19
(Optional) Installing an In-Room Exit Button

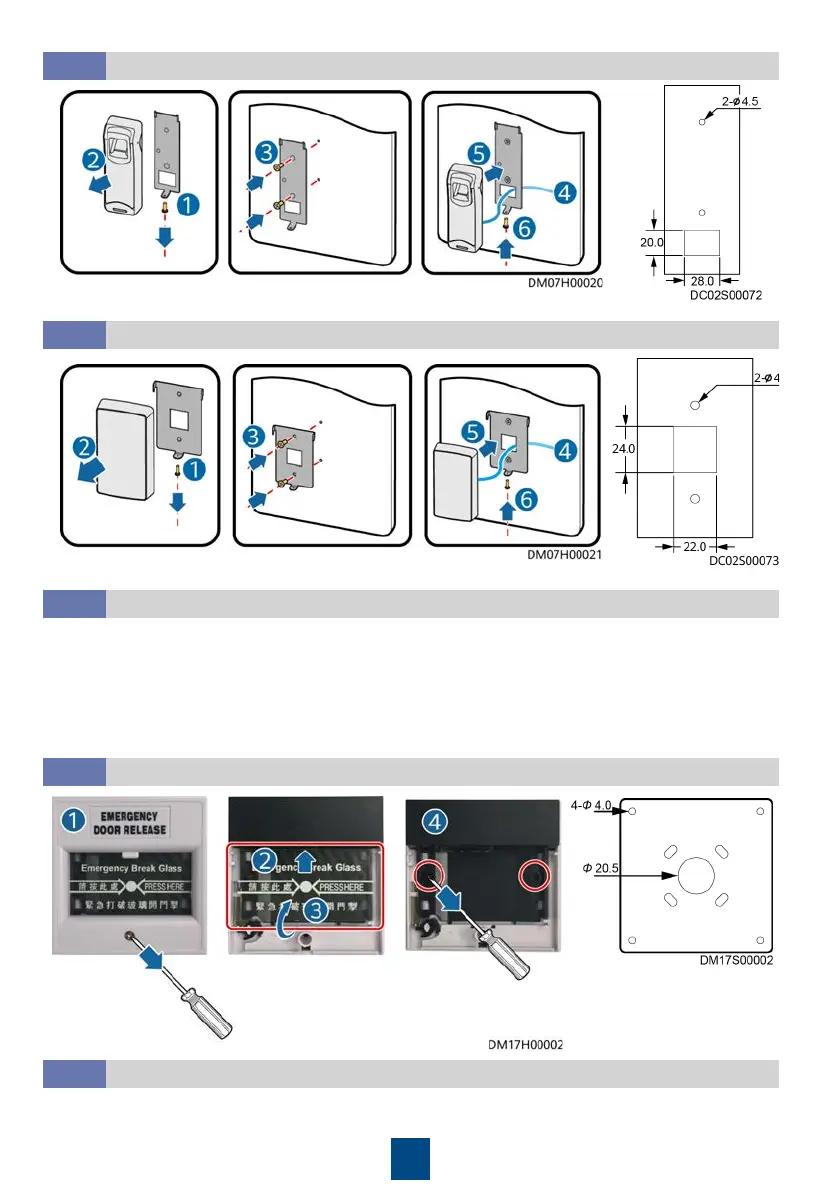

1. Remove the cover of the exit button.
2. Remove the base and mark mounting holes using the base and a marker.
3. Drill holes and install the exit button base.
4. Connect pins 6 and 7 of a network cable to the NO and COM ports on the exit button.
5. Route the cable through the cable hole.
6. Reinstall the exit button and the cover.
13.20
(Optional) Installing an In-Room Emergency Door Release Button
13.21
(Optional) Installing an In-Room Camera
For the detailed installation method, see documents delivered with the camera.
