Huawei FusionServer Pro 2488 V5 - Indicators

5.2.2 Indicators
Indicator Positions

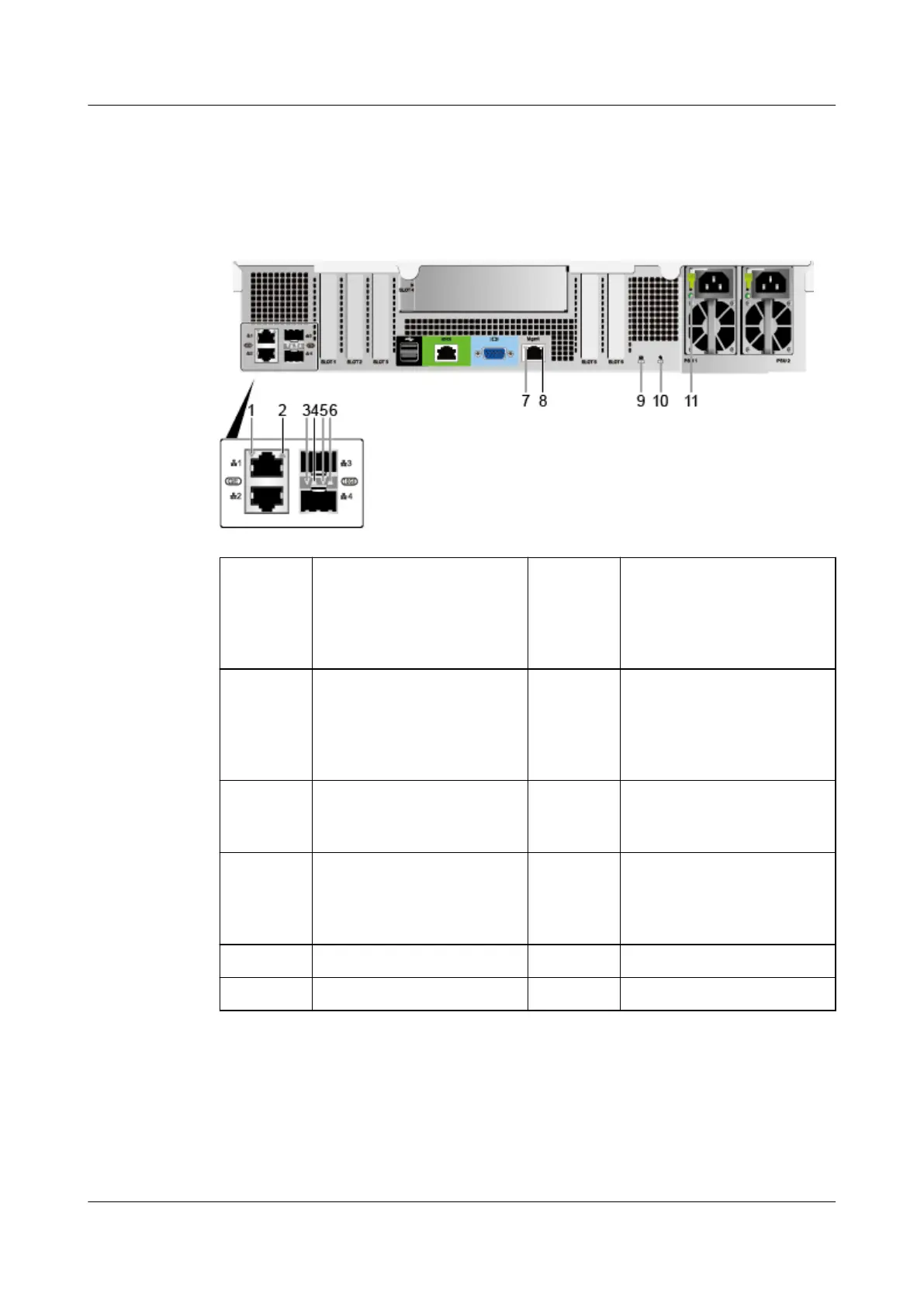

Figure 5-11 Indicators on the rear panel
1 Connection status
indicator/Data
transmission status
indicator for GE electrical
port 2
2 Connection status
indicator/Data
transmission status
indicator for GE electrical
port 1
3 Connection status
indicator/Data
transmission status
indicator for 10GE optical
port 4
4 Connection status
indicator/Data
transmission status
indicator for 10GE optical
port 3
5 Data transmission rate
indicator for 10GE optical
port 4
6 Data transmission rate
indicator for 10GE optical
port 3
7 Data transmission status
indicator for the
management network
port
8 Connection status
indicator for the
management network
port
9 Health status indicator 10 UID indicator
11 PSU indicator - -
