● Contact your local Huawei sales representative or use the Computing
Product Compatibility Checker to determine the components to be used.
● For details about the RAID controller card, see Huawei V5 Server RAID
Controller Card User Guide.
5.6 I/O Expansion
5.6.1 PCIe Cards
PCIe cards provide ease of expandability and connection.
● Contact your local Huawei sales representative or use the Computing
Product Compatibility Checker to determine the components to be used.
5.6.2 PCIe Slots
PCIe Slots

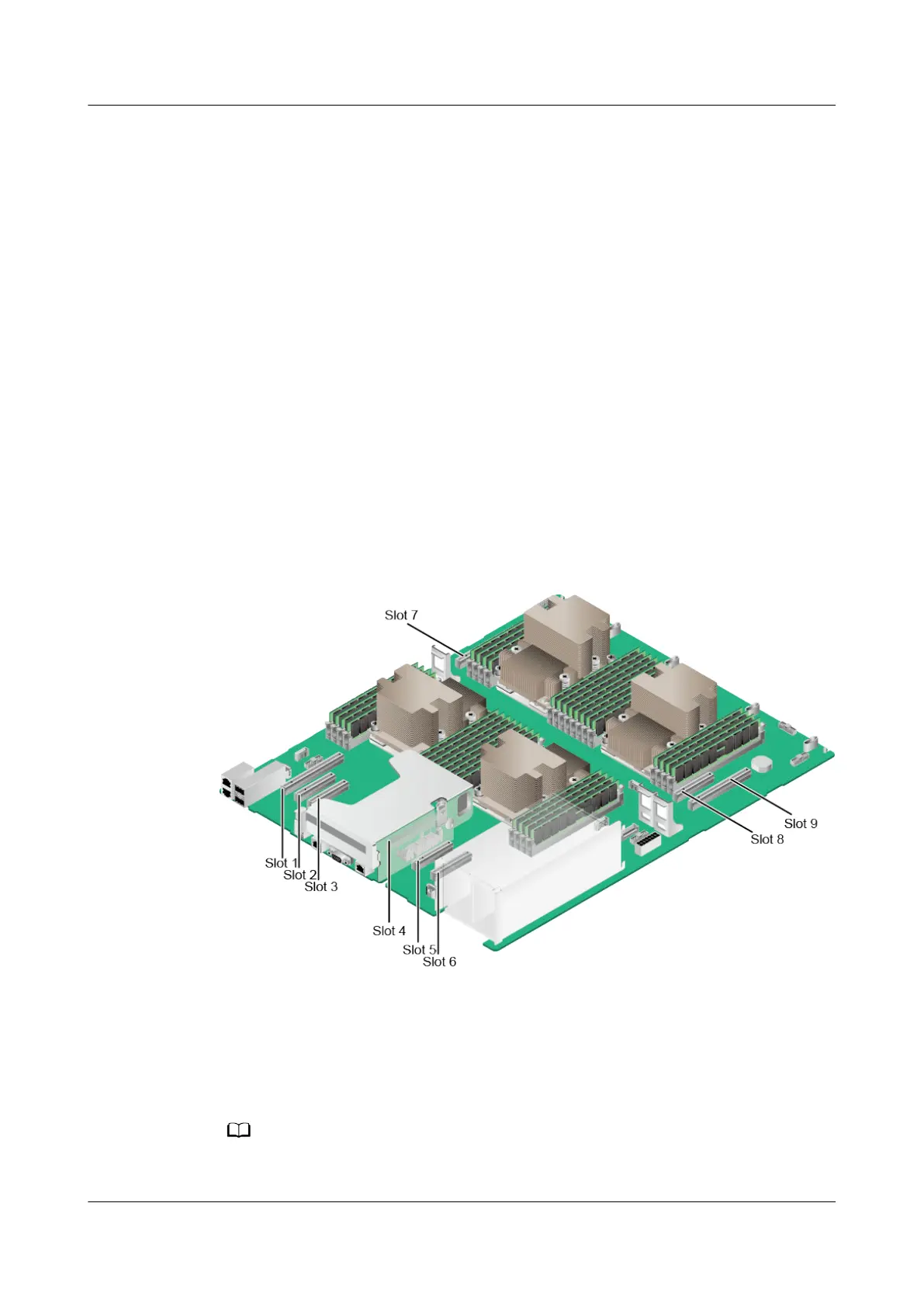

Figure 5-23 PCIe slots
● Slots 1 to 3 and 5 to 9 are provided by the mainboard.
● Slot 4 is provided by the PCIe riser module.
5.6.3 PCIe Slot Description
The PCIe slots mapping to a vacant CPU socket are unavailable.
