Interface

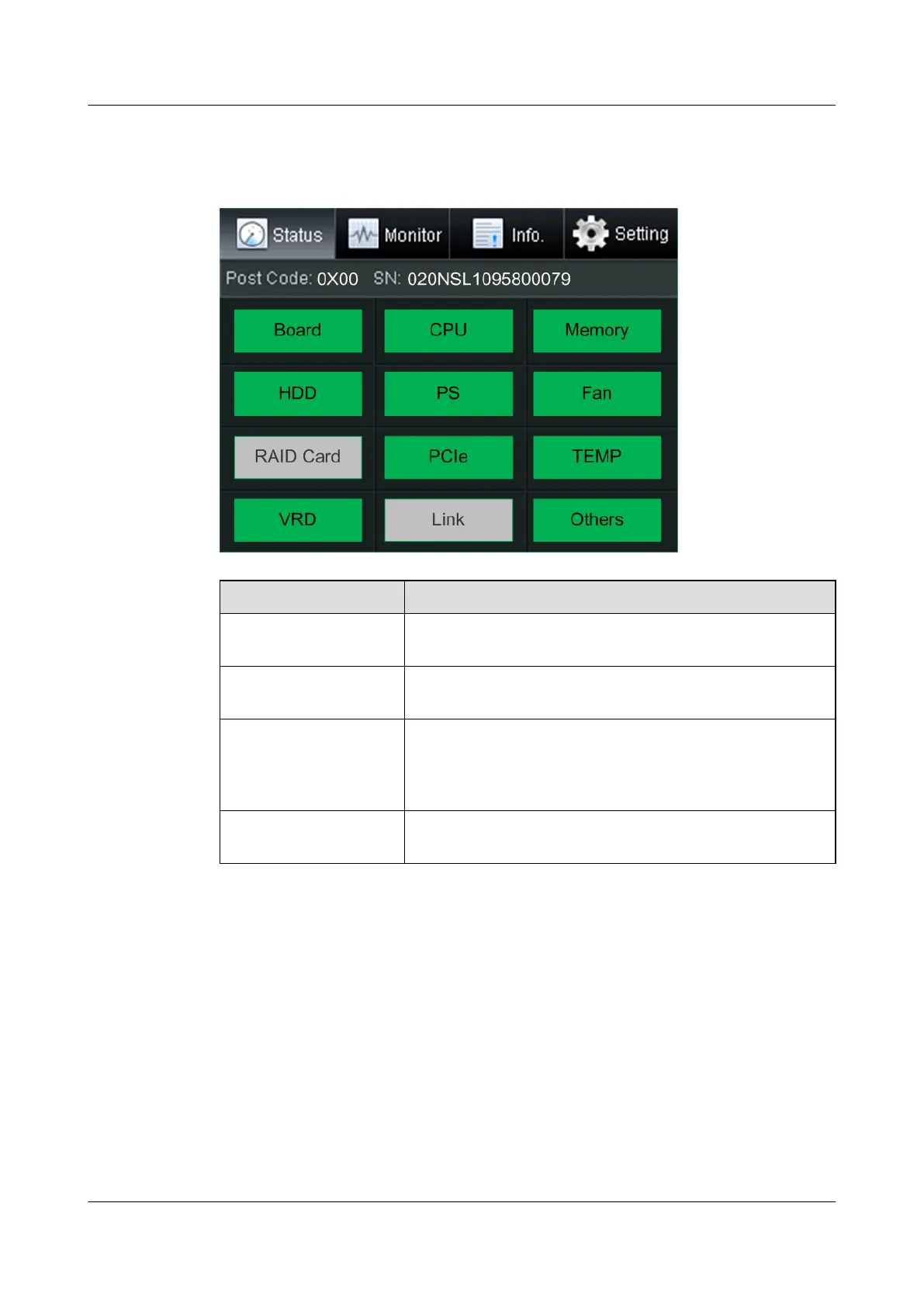

Figure 5-27 LCD module interface
Tab Name Function
Status Displays the port 80 status, serial number, component
status, and component alarms of the server.
Monitor Displays the current power of the server, CPU
temperature, and inlet temperature.
Info. Displays the IP address and MAC address of the iBMC
management network port, MAC addresses of host
LOM ports, device SNs, asset information, and rmware
version.
Setting Sets the IP address of the iBMC management network
port.
For details about how to use the LCD, see
2488 V5 Server V100R005 LCD User
Guide
.
