Huawei FusionServer Pro 2488 V5 - Drive Indicators

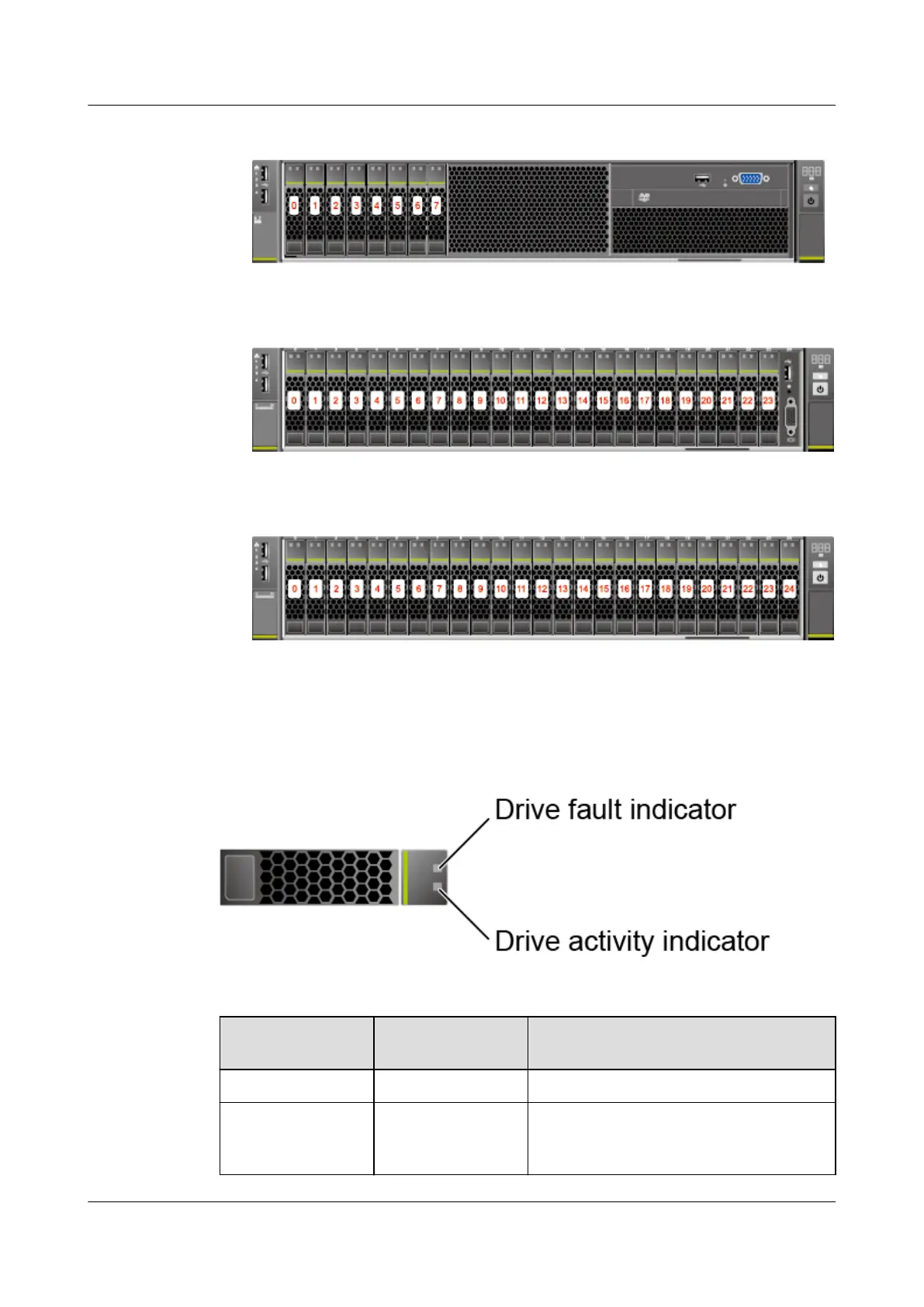

Figure 5-18 Drive numbering
● 24 x 2.5" (16 x SAS/SATA + 8 x NVMe) drive conguration
Figure 5-19 Drive numbering
● 25 x 2.5" SAS/SATA drive conguration
Figure 5-20 Drive numbering
5.5.3 Drive Indicators
SAS/SATA Drive Indicators
Figure 5-21 SAS/SATA drive indicators
Table 5-9 Description of SAS/SATA drive indicators
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Steady on O The drive is in position.
Blinking at 4 Hz O Data is being read or written normally,
or data on the primary drive is being
rebuilt.
