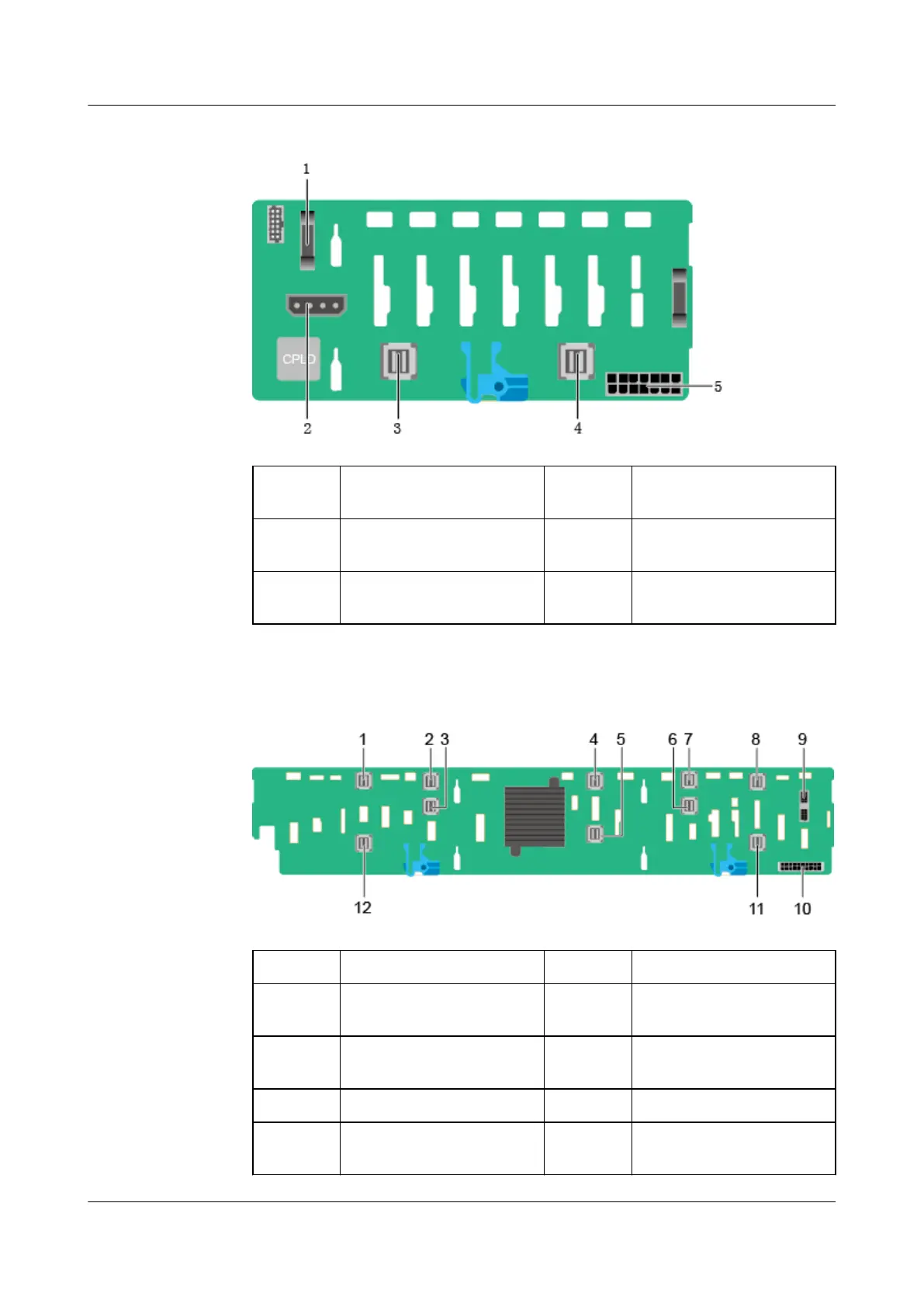

Figure 5-29 8 x 2.5" SAS/SATA drive backplane
1 Signal cable connector
(J1)
2 DVD drive power
connector (J11)
3 SAS cable connector
(Port B/J29)
4 SAS cable connector
(Port A/J28)
5 Backplane power
connector (J24)
- -
● 24 x 2.5" (16 x SAS/SATA + 8 x NVMe) drive backplane
Figure 5-30 24 x 2.5" (16 x SAS/SATA + 8 x NVMe) drive backplane
1
NVMe (PORT B_N2/J26) 2 NVMe (PORT B_N0/J24)
3 NVMe (PORT B_N1/J25) 4 SAS cable connector
(PORT C_0/J28)
5 SAS cable connector
(PORT C_1/J29)
6 NVMe (PORT A_N1/J21)
7 NVMe (PORT A_N0/J20) 8 NVMe (PORT A_N2/J22)
9 Backplane signal cable
connector (J1)
10 Backplane power
connector (J3)
