5.2.2 Indicators
Indicator Positions

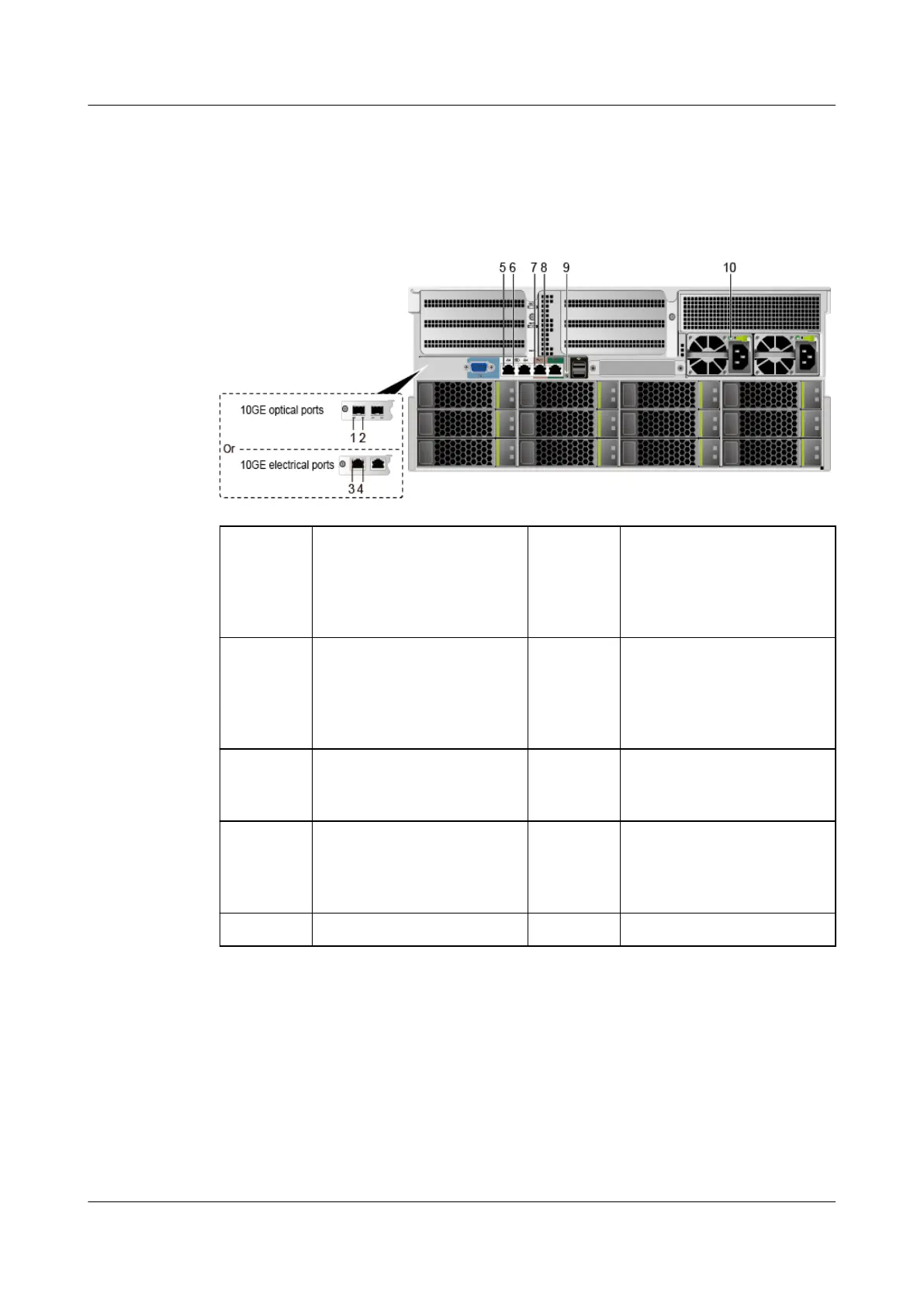

Figure 5-5 Indicators on the rear panel
1 Connection status
indicator/Data
transmission status
indicator for a 10GE
optical port
2 Data transmission rate
indicator for a 10GE
optical port
3 Data transmission rate
indicator for a 10GE
electrical port
4 Connection status
indicator/Data
transmission status
indicator for a 10GE
electrical port
5 Data transmission status
indicator for a GE
electrical port
6 Connection status
indicator for a GE
electrical port
7 Data transmission status
indicator for the
management network
port
8 Connection status
indicator for the
management network
port
9 UID indicator 10 PSU indicator
