Silkscreen Indicator/
Button
Description
LOM port
connection
status
indicator
Each indicator shows the connection status of
an Ethernet LOM port.
● O: The network port is not in use or has
failed.
● Steady green: The network port is properly
connected.
NOTE
● The indicators correspond to two 10GE and two
GE network ports on the mainboard.
● The LOM has a standby power supply and will
not be powered o even if the service system is
powered
o. As long as the LOM ports are
properly connected to other working network
devices, the network ports will remain connected
and the indicators are on.
5.1.3 Ports
Port Positions

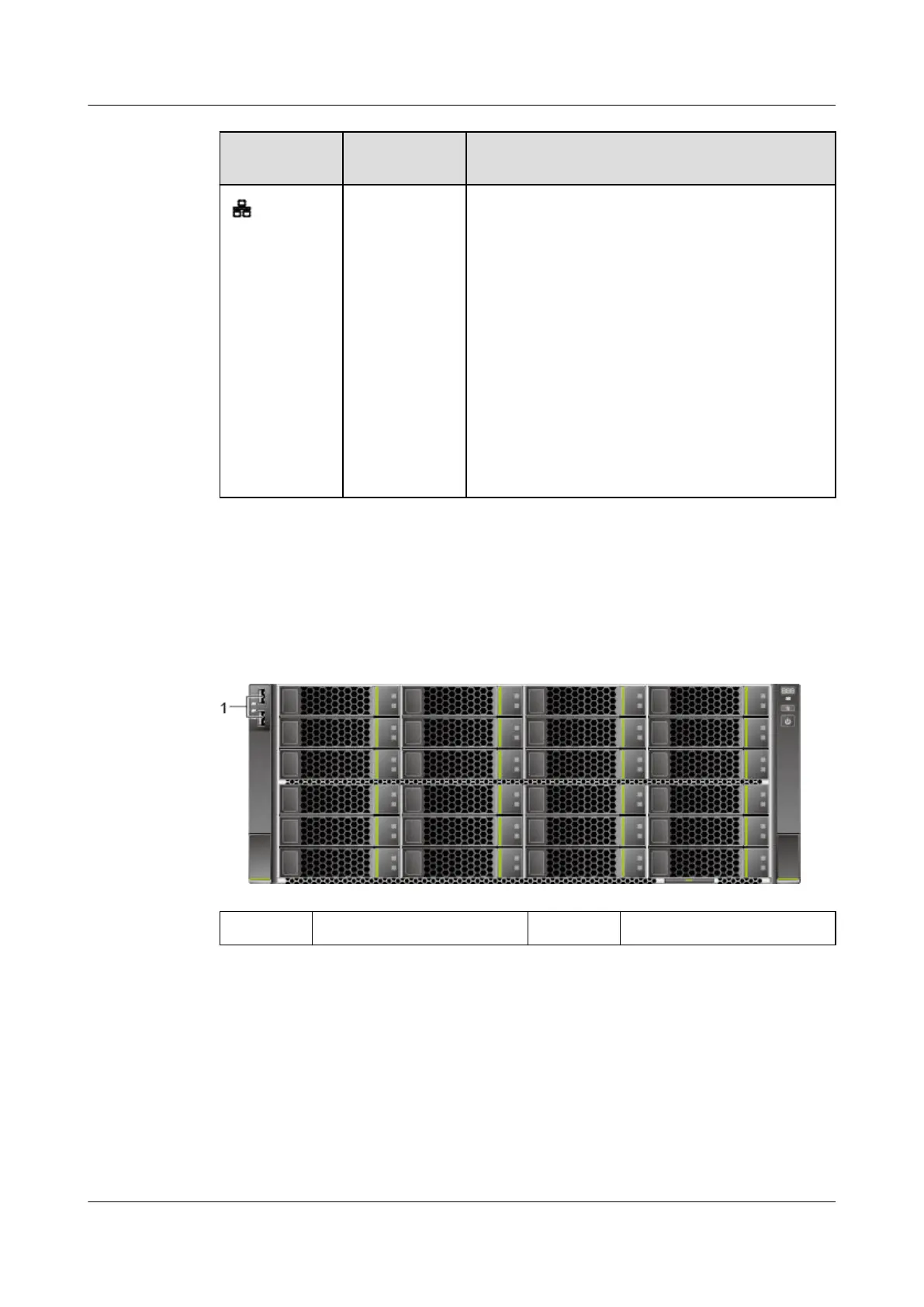

Figure 5-3 Ports on the front panel
1
USB 2.0 ports - -
