Huawei HG658 V2 User Manual

16

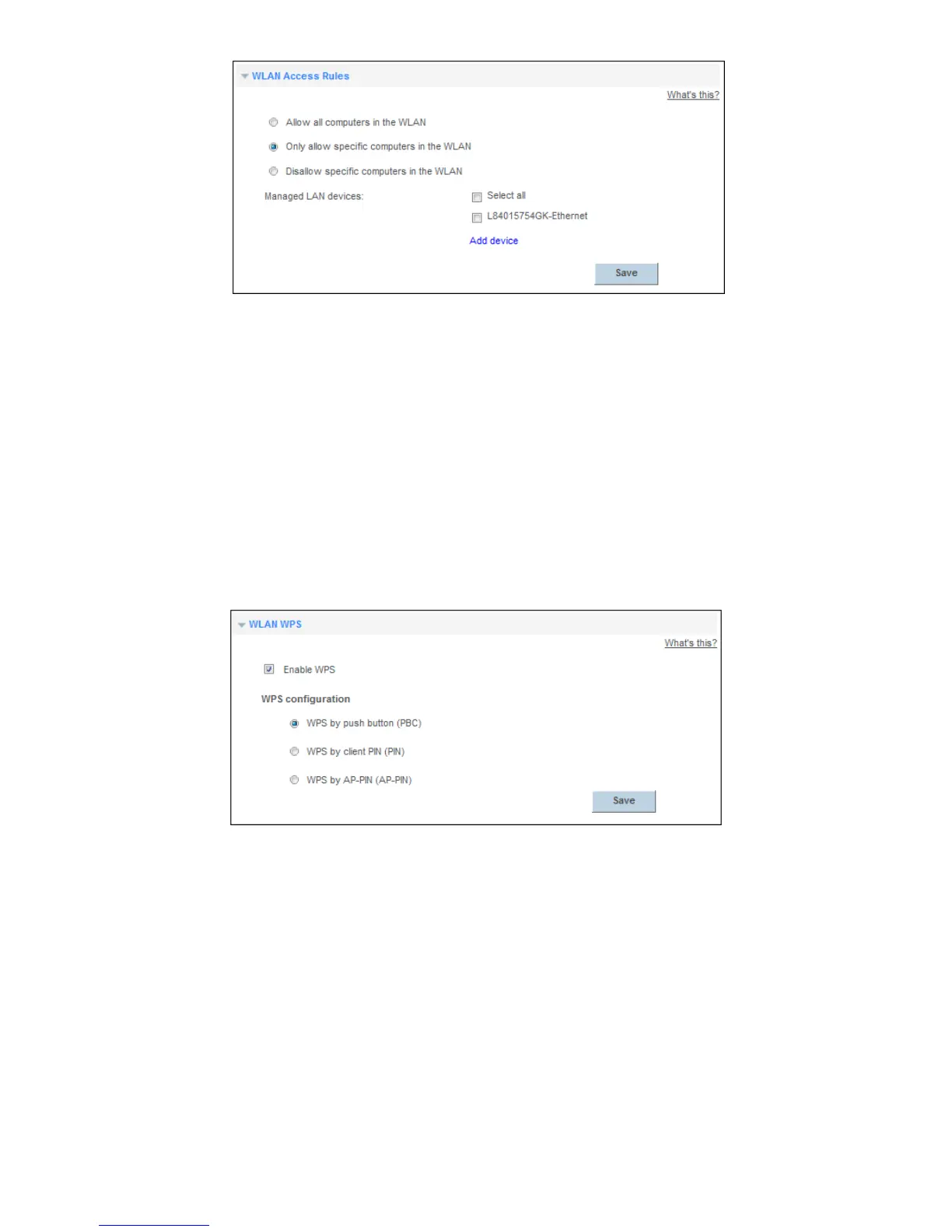

Enable WPS Function
After the WPS function is turned on, you can safely access the wireless network without enter a
wireless network name and password.
1. Log in to the web management page.
2. Choose Home Network tab.
3. In the navigation tree, choose WLAN Access .
4. Select WLAN WPS configuration page.
5. Set Enable WPS to enable.
6. Under the expanded WPS configuration menu, select the WPS mode you want to use.
• WPS by push button (PBC) ： Enable the WPS function by press the WPS button on theHG658 V2.
• WPS by client PIN (PIN) ： Get the pin code from a pin client and then enter the pin code in PIN
code
text box. Click Connect .
• WPS by AP-PIN (AP-PIN) : Click PIN to get the pin code and then enter the pin code into the text
box on the pin client.
7. Click Save .

Huawei HG658 V2 Specifications

General

Model	HG658 V2
Category	Gateway
Wi-Fi Standards	802.11 b/g/n
Frequency Band	2.4 GHz
Ethernet Ports	4
USB Ports	1
Wireless Speed	300 Mbps
WLAN	Yes
Number of LAN Ports	4
LAN Port Type	RJ-45
Number of FXS Ports	2
WAN Ports	1 x RJ-11
Type	Wireless
Security	WEP, WPA, WPA2, WPS
