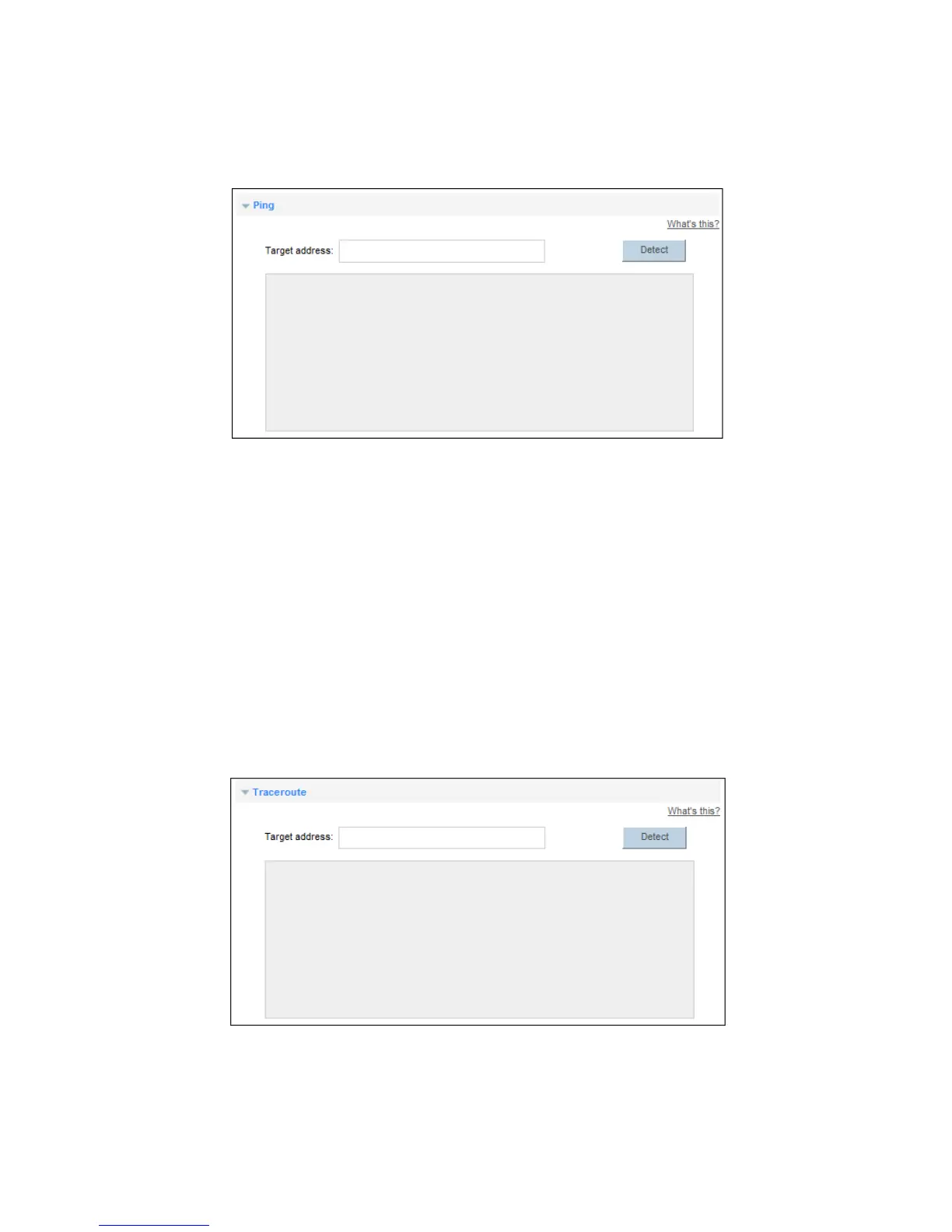

3. In the navigation tree, choose Tools .
4. Select Ping configuration page.
5. In Target address , enter the IP address or domain name you want to test.
6. Click Detect .
Using Tracert Tool Diagnose Network
Tracert function is used to detect the number of other routers that passed when the HG658 V2 is
connected to the test host.
1. Log in to the web management page.
2. Choose Maintain tab.
3. In the navigation tree, choose Tools .
4. Select Traceroute configuration page.
5. In Target address , enter the IP address or domain name you want to test.
6. Click Detect .

Huawei HG658 V2 Specifications

General

Model	HG658 V2
Category	Gateway
Wi-Fi Standards	802.11 b/g/n
Frequency Band	2.4 GHz
Ethernet Ports	4
USB Ports	1
Wireless Speed	300 Mbps
WLAN	Yes
Number of LAN Ports	4
LAN Port Type	RJ-45
Number of FXS Ports	2
WAN Ports	1 x RJ-11
Type	Wireless
Security	WEP, WPA, WPA2, WPS
