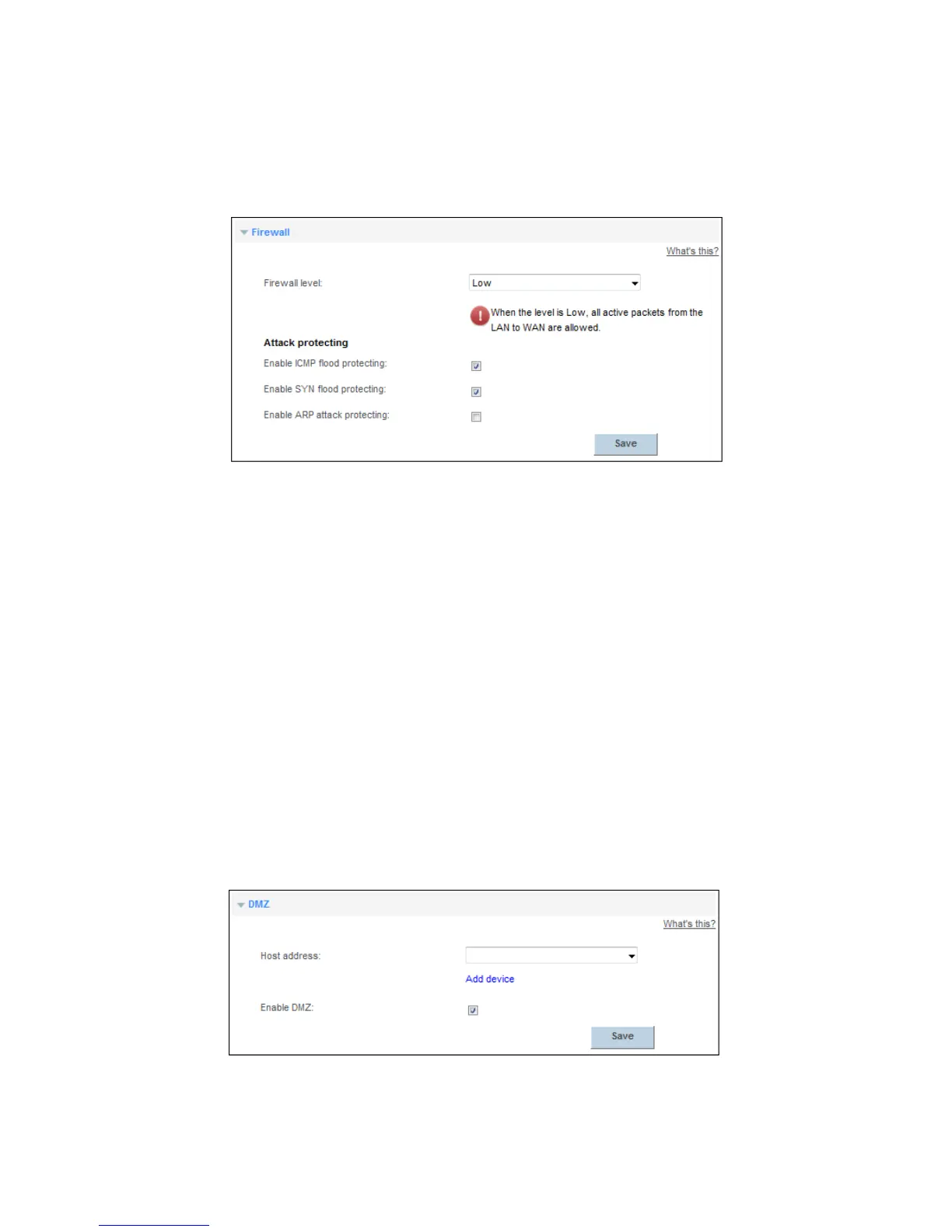

21
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
Network Security
.
4.
Select
Firewall
configuration page.
5.
In
Firewall level
, select the firewall level you specified.
6.
Click
Save
.
Configure DMZ
After DMZ is enabled, the computer that is configured as a DMZ host is exposed to the Internet. For
example, when building a server, you can configure the computer providing external services as a
DMZ host, which helps protect other computers on the home network.
1.
Log in to the web management page.
2.
Choose
Internet
tab.
3.
In the navigation tree, choose
Network Security
.
4.
Select
DMZ
configuration page.
5.
In
Host address
, select the device you want to specified, or click
Add device
to add a new device for
DMZ host.
6.
Set
Enable DMZ
to enable.
7.
Click
Save
.

Table of Contents

Other manuals for Huawei HG658 V2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei HG658 V2 and is the answer not in the manual?

Huawei HG658 V2 Specifications

General IconGeneral
ModelHG658 V2
CategoryGateway
Wi-Fi Standards802.11 b/g/n
Frequency Band2.4 GHz
Ethernet Ports4
USB Ports1
Wireless Speed300 Mbps
WLANYes
Number of LAN Ports4
LAN Port TypeRJ-45
Number of FXS Ports2
WAN Ports1 x RJ-11
TypeWireless
SecurityWEP, WPA, WPA2, WPS
