Huawei HG658 V2 User Manual

23
Configure Port Forwarding
You can set forwarding rules on the HG658 V2 so that users can easily access server resources
provided by your computer (such as personal websites and FTP servers) from the Internet.

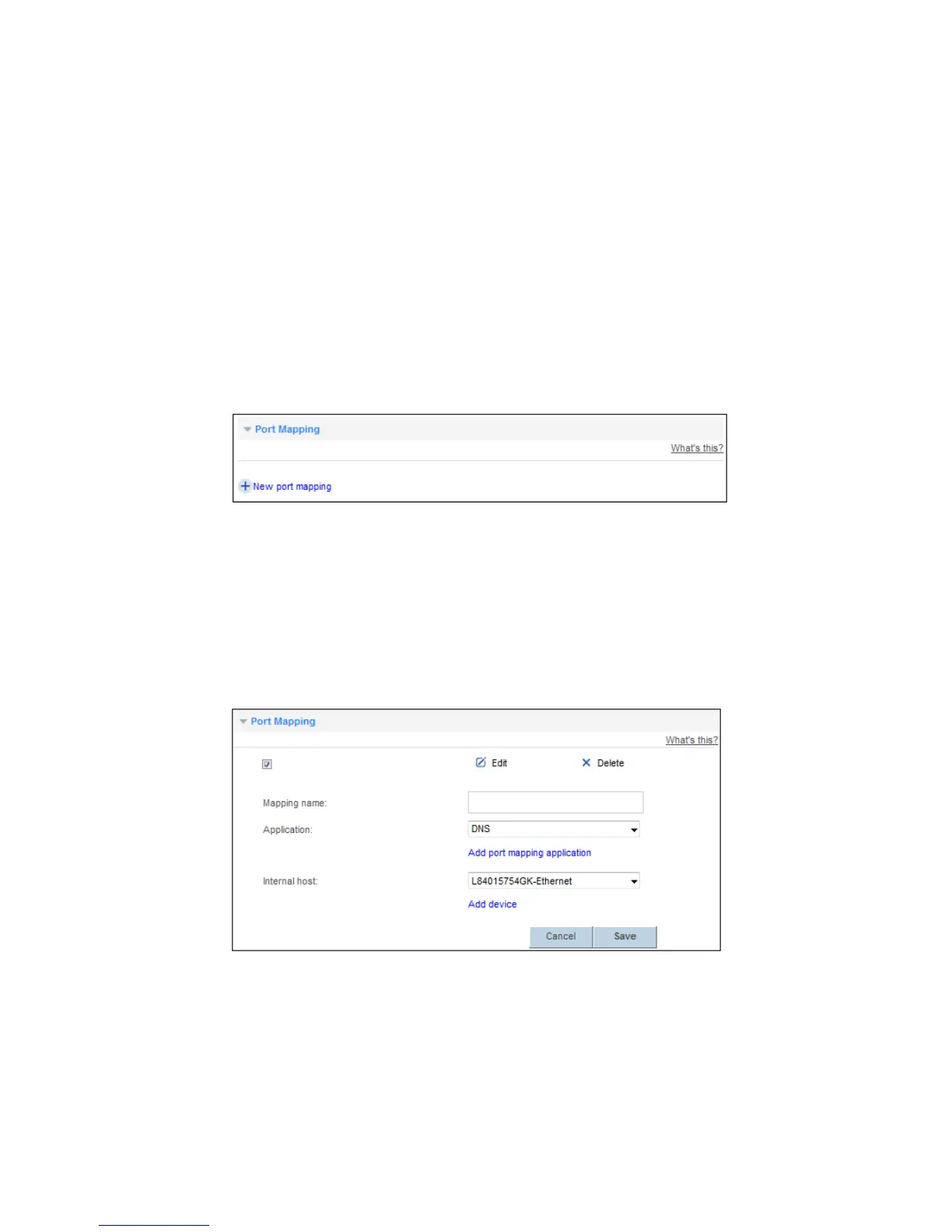

Configure Port Mapping
By setting a port forwarding rule, you can let a internet user to access a local computer.
1. Log in to the web management page.
2. Choose Internet tab.
3. In the navigation tree, choose Forwarding .
4. Select Port Mapping configuration page.
5. Click New port mapping .
6. In Mapping name , enter a rule name you specified.
7. In Application , select the application type you want to set, or click Add port mapping application to
add a new application type.
8. In Internal host , select a local computer you want to set, or click Add device to add a new local
computer.
9. Click Save .
Configure Port Trigger
By setting port triggering, LAN has a client-initiated requests to an Internet server, the application
will trigger port to initiate a connection, thereby triggering HG658 V2 open the appropriate ports to
ensure the normal use of the application.
1. Log in to the web management page.

Huawei HG658 V2 Specifications

General

Model	HG658 V2
Category	Gateway
Wi-Fi Standards	802.11 b/g/n
Frequency Band	2.4 GHz
Ethernet Ports	4
USB Ports	1
Wireless Speed	300 Mbps
WLAN	Yes
Number of LAN Ports	4
LAN Port Type	RJ-45
Number of FXS Ports	2
WAN Ports	1 x RJ-11
Type	Wireless
Security	WEP, WPA, WPA2, WPS
