HUAWEI SE2900 Session Border Controller
Hardware Description
1 Service Processing Device
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
PEM 1 and PEM 2 for PEMs.
Fan 1 and Fan 2 for fan trays.

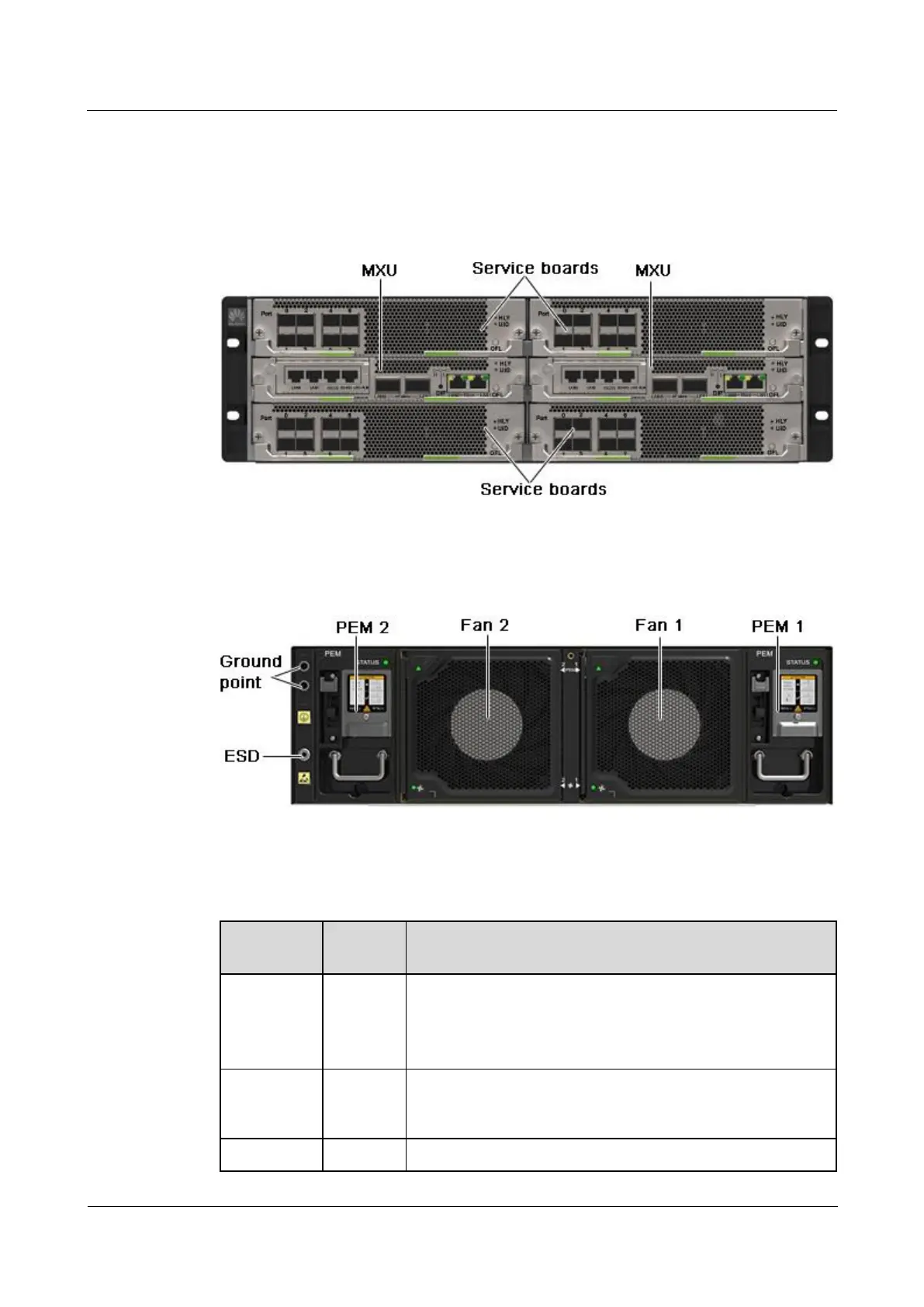

Figure 1-5 shows the front view of an F8002 subrack in full configuration.
Figure 1-5 Front view of an F8002 subrack in full configuration
Figure 1-6 shows the rear view of an F8002 subrack.
Figure 1-6 Rear view of an F8002 subrack
Table 1-2 describes the components of the F8002 subrack.
Table 1-2 F8002 subrack components
The MXUs implement operation, maintenance, and
management of the system.
Two MXUs are installed in slots 2 and 5 to work in
active/standby mode.
The service boards can be installed in slots 1, 3, 4, and 6. The
service boards in any two slots can be configured in
active/standby mode.
Two PEMs are configured in 1+1 redundancy mode. If one
