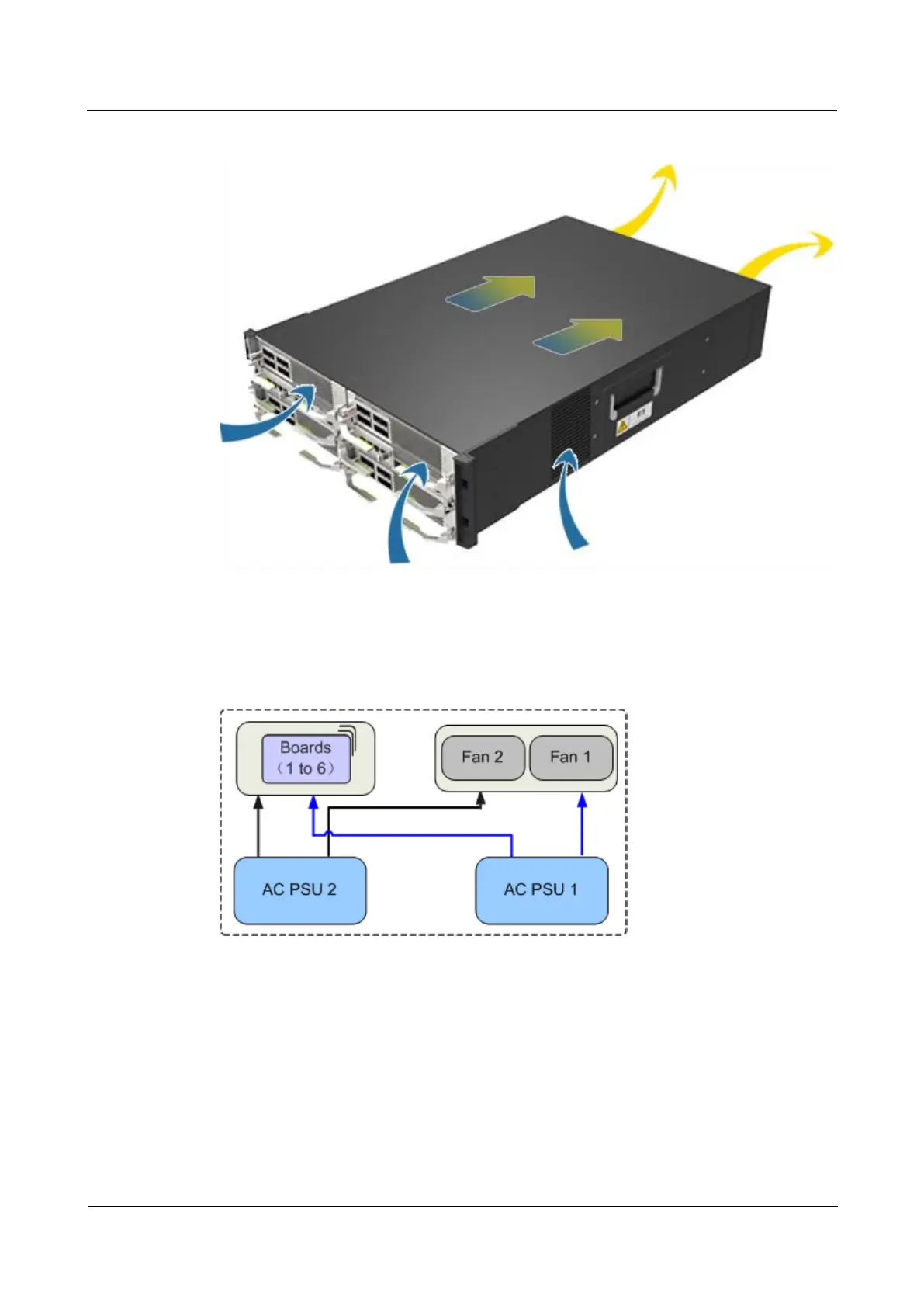

Figure 1-17 Heat dissipation in the subrack
Figure 1-18 shows the power supply mode of the F8002 subrack. Each AC PSU supplies
power to all slots and fan trays in the subrack.
Figure 1-18 F8002 subrack power supply mode
Logical Structure
Figure 1-19 shows the logical structure of the F8002 subrack.
