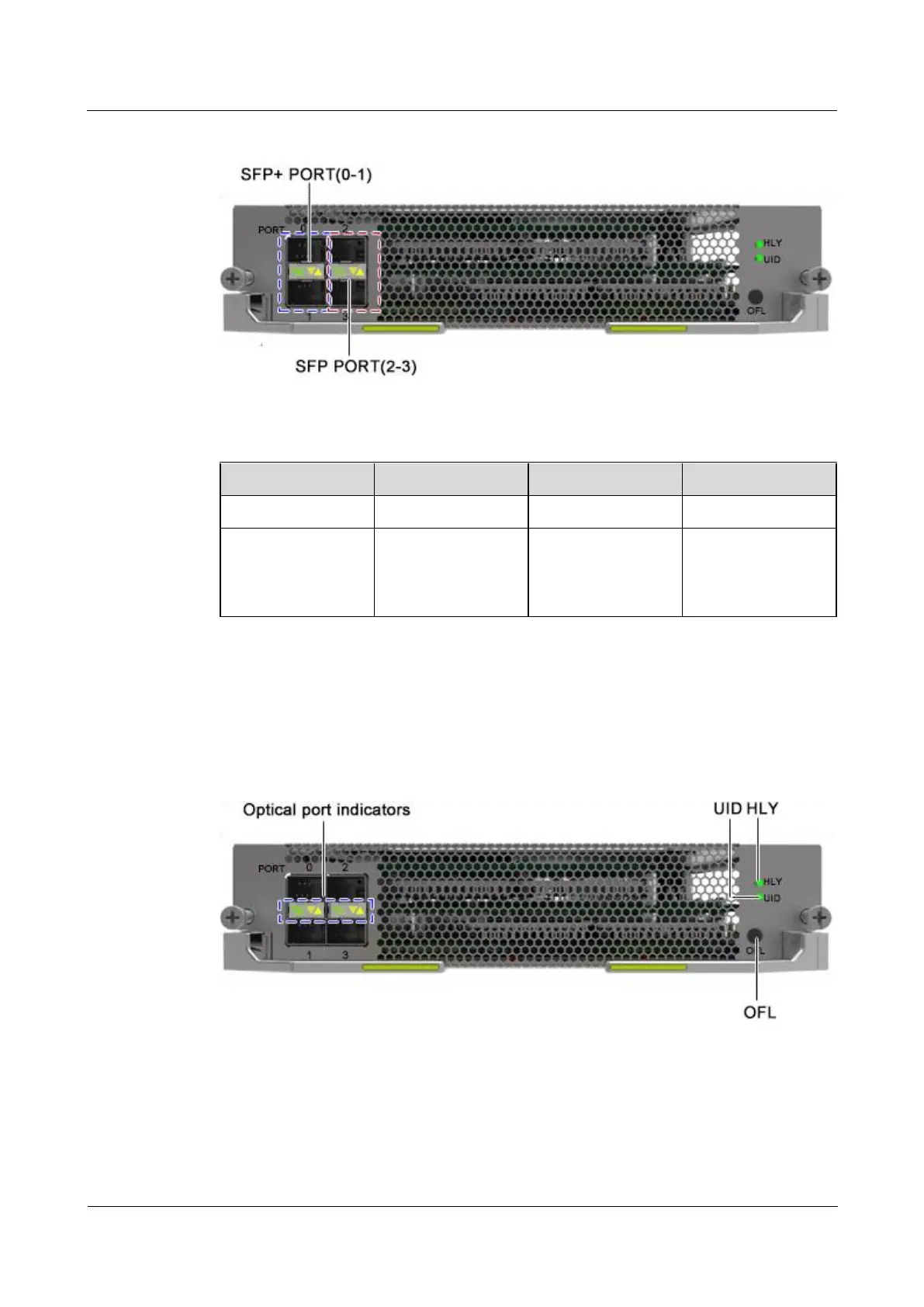

Figure 1-55 Panel ports
Table 1-48 Panel port description
Silk Screen
Meaning
Port Type
Standard
PORT (0 and 1)
10GE media port
SFP+
10G BASE-R
PORT (2 and 3)
1GE
signaling/Network
File Server (NFS)
interface
SFP
1000 BASE-X
Indicators
Figure 1-56 shows the indicators and buttons on the board. Table 1-49 describes the indicators
and buttons.
Figure 1-56 Indicators and buttons
