7 Man-Machine Interaction
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
95
LCD Screen
Procedure
A Special User has logged in to the
SUN2000.
6. Set Ugrid-Unbalance, 10-min Over-Volt,
and 10-min OV Prot. time, and press .
The parameters displayed vary with the setting
of Grid Code.
----End

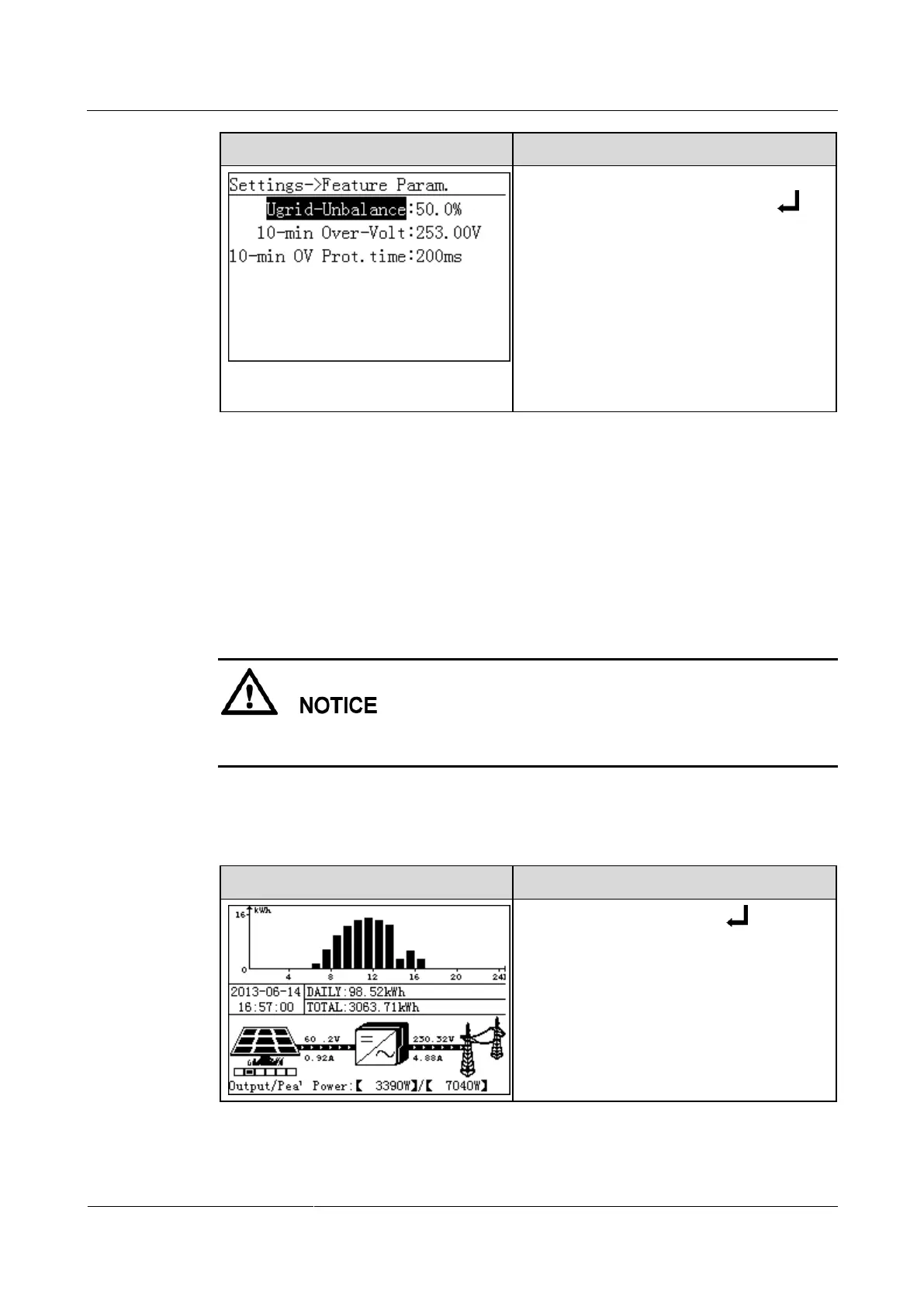

7.2.11 Setting Isolation Parameters
SUN2000 isolation parameters can be set on the monitoring panel.
Context
If PV strings are grounded, install a three-phase four-wire isolation transformer and set
Isolation to Input Grounded, With TF.
Procedure

The following table lists the procedure for setting isolation parameters. The parameter
values in the figures are for reference only.
LCD
Procedure
1. On the default screen, press to enter
the main menu.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
