LCD
Procedure

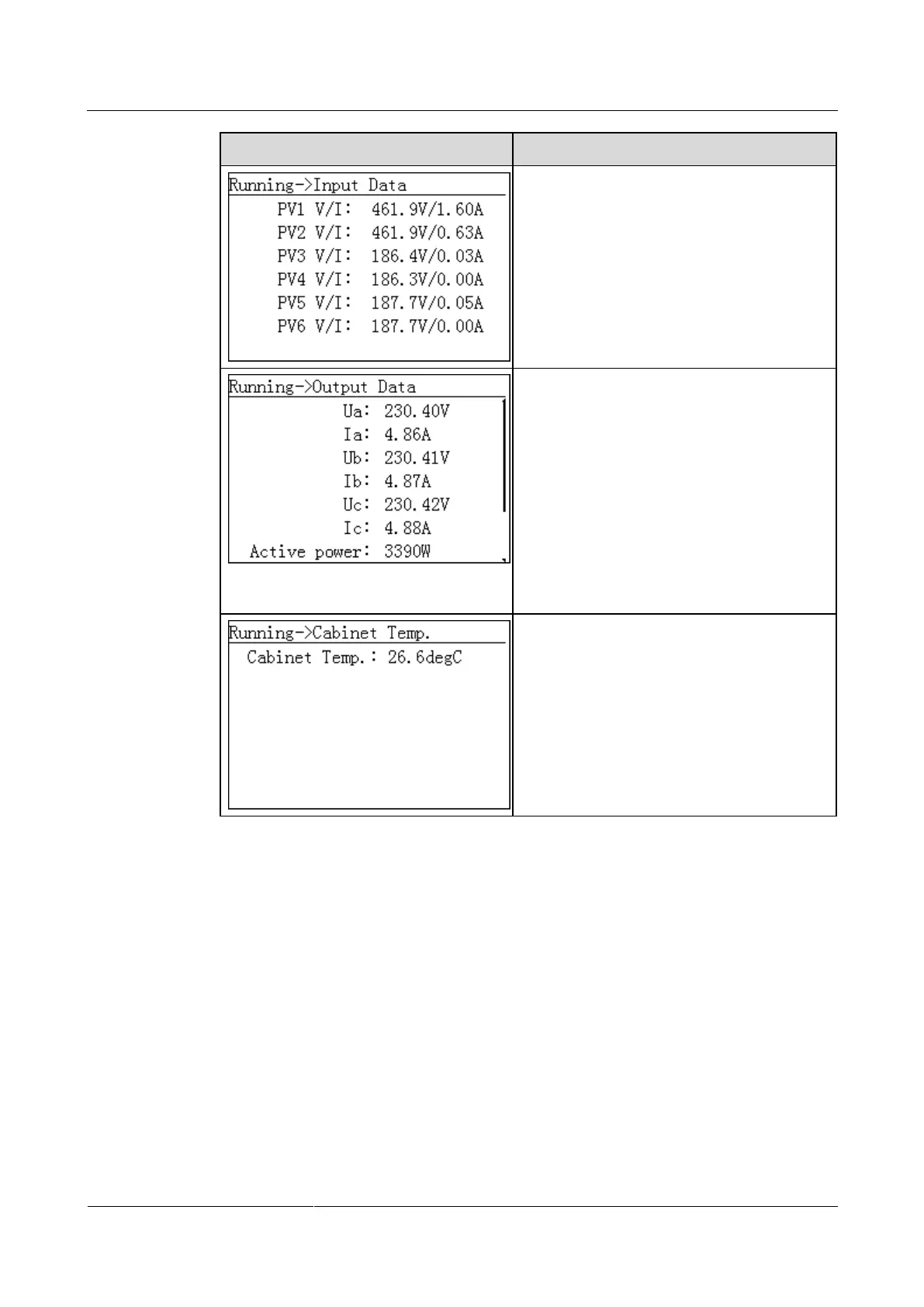

11. On the Input Data screen, view the
voltage and current of each PV input.
The preceding screen is displayed on all
models except the SUN2000-28KTL.
12. On the Output Data screen, view the
output voltage and current of each phase,
active power, output frequency, and output
power factor.
NOTE
As the SUN2000-28KTL has three-phase,
three-wire outputs, the output voltage and current
are the line voltage and line current.
13. On the Cabinet Temp. screen, view the
internal temperature of the SUN2000.
----End
7.2.2 Viewing Alarm Records
The monitoring panel displays the active and historical alarm records and allows setting of the
sort mode of the alarm records.
Context
The LCD displays a maximum of 800 latest alarm records.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
