The valid neutral-ground voltage for the TT grid mode must be less than 30 V.

The SUN2000-28KTL applies to medium-voltage and low-voltage power grids. If the
output voltage of the SUN2000 (three-phase, with a PE cable, 480 V) does not match the
power grid voltage, connect a transformer to adapt to the power grid voltage.
For example, if the SUN2000 is connected to a low-voltage power grid (three-phase, with
an N cable and a PE cable, 400 V), a transformer is required to convert the 480 V voltage to
the 400 V voltage.

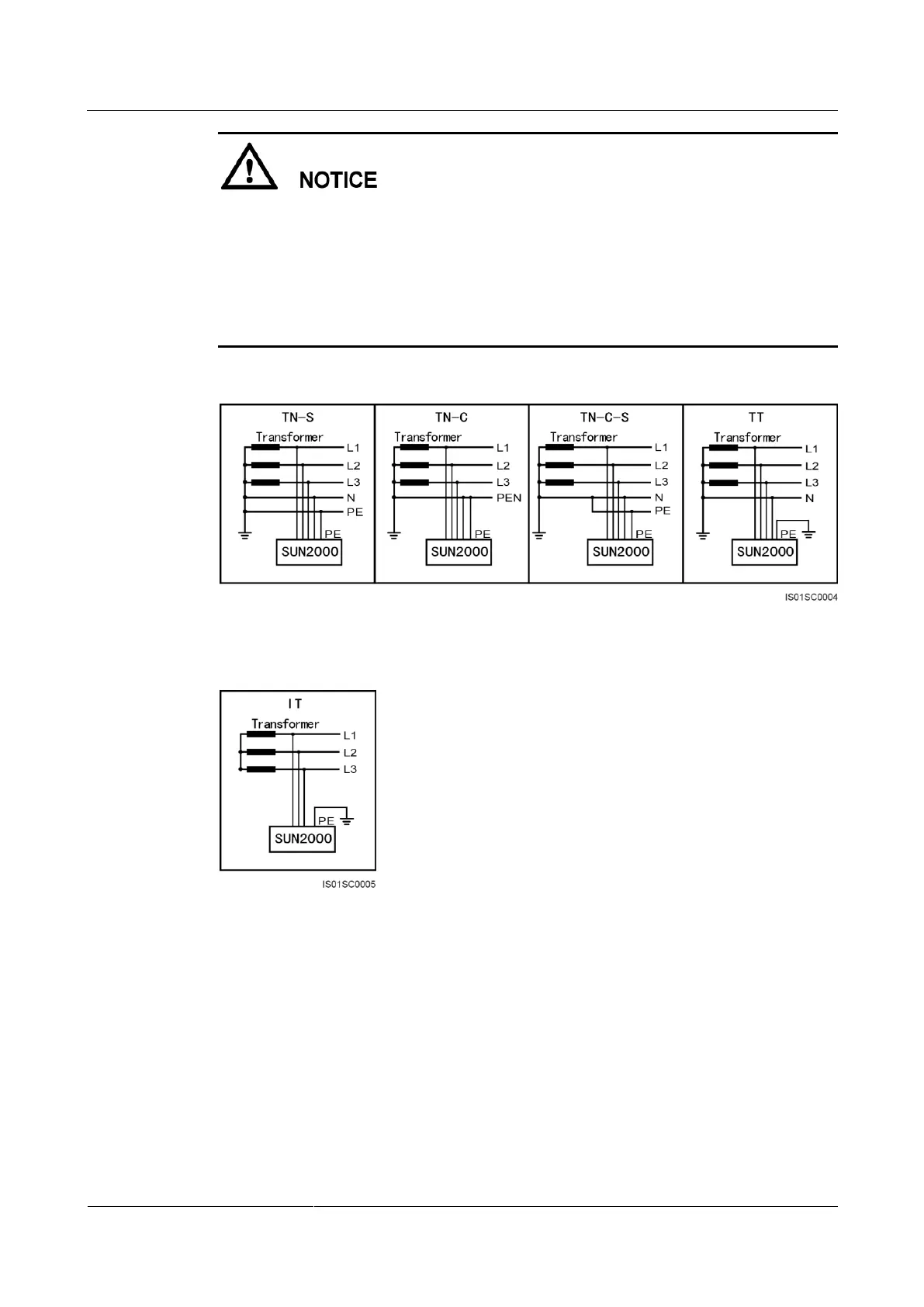

Figure 2-3 Power grid modes supported by all SUN2000 models except the SUN2000-28KTL
Figure 2-4 Power grid mode supported by the SUN2000-28KTL
2.2 Appearance
This section describes the appearance and specifications of the SUN2000.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
