7 Man-Machine Interaction
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
91
LCD Screen
Procedure

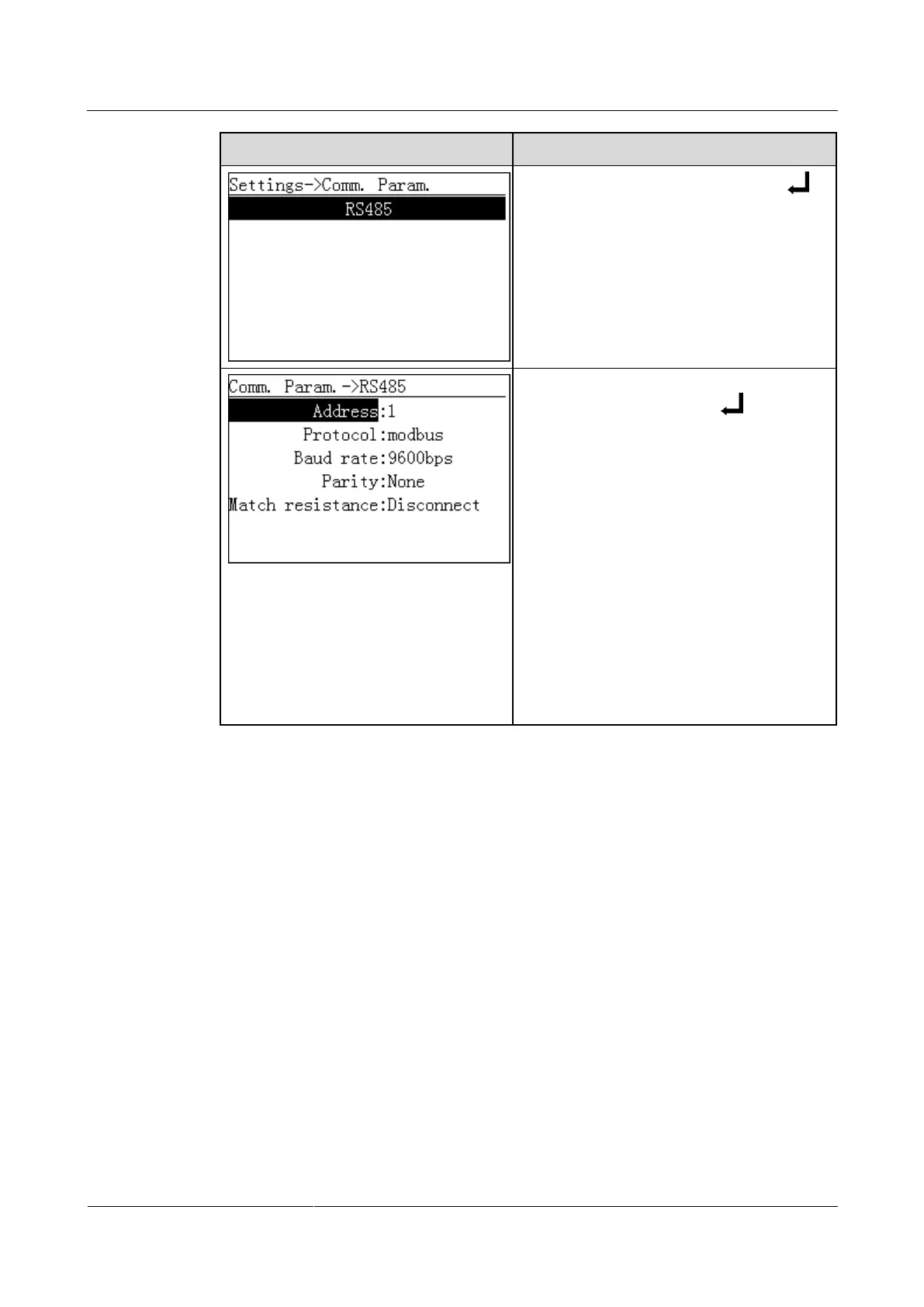

5. On the Comm. Param. screen, press .
6. Set Address, Protocol, Baud Rate, and
Match Resistance, and press .

The optional addresses range from 1 to
247.

The optional protocol is modbus.

The optional baud rates are 4800bps,
9600bps, and 19200bps.

The optional parities are None, Even
parity, Odd parity.

The optional values of match resistance are
Disconnect and Connect.
This parameter is set to Disconnect by
default. If signals are distorted or the
communication is of poor quality because
of a lengthy communications cable, set the
parameter to Connect.
----End
7.2.9 Setting Protection Parameters
SUN2000 protection parameters can be set on the monitoring panel.
Procedure

The following table lists the procedure for setting protection parameters. The parameter
values in the figures are for reference only.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
