This chapter introduces the SUN2000 and describes its functioning, appearance, label
conventions, and monitoring panel.
2.1 Introduction
This section describes the functions, models, and application of the SUN2000.
Function
The SUN2000 is a three-phase grid-tied PV string inverter. It converts DC power generated
by PV strings into AC power and then feeds the AC power into the power grid.
Models

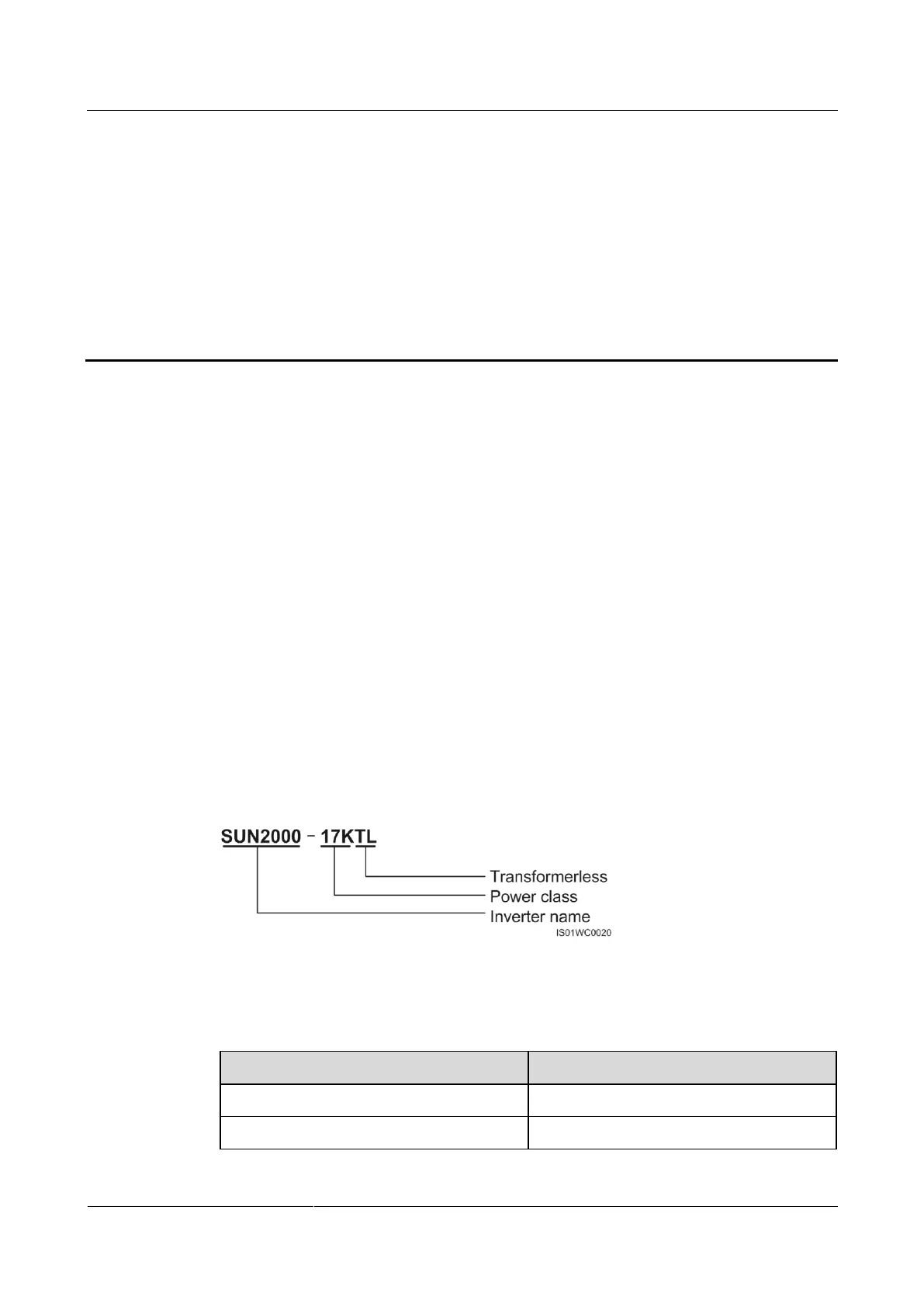

Figure 2-1 shows how to read the SUN2000 model number, using SUN2000-17KTL as an
example.
Figure 2-1 Model number description
Table 2-1 lists all the models of the SUN2000 and their rated output power.
Table 2-1 SUN2000 models and rated output power
Model
Rated Output Power
SUN2000-8KTL
8 kW
SUN2000-10KTL
10 kW

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
