2 Overview
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
Model
Rated Output Power
SUN2000-12KTL
12 kW
SUN2000-15KTL
15 kW
SUN2000-17KTL
17 kW
SUN2000-20KTL
20 kW
SUN2000-23KTL
23 kW
SUN2000-28KTL
27.5 kW
Network Application
The SUN2000 applies to grid-tied PV power systems for commercial rooftops and large
power stations. A typical grid-tied PV power system consists of PV strings, grid-tied inverters,
and AC distribution units (ACDUs), as shown in Figure 2-2.

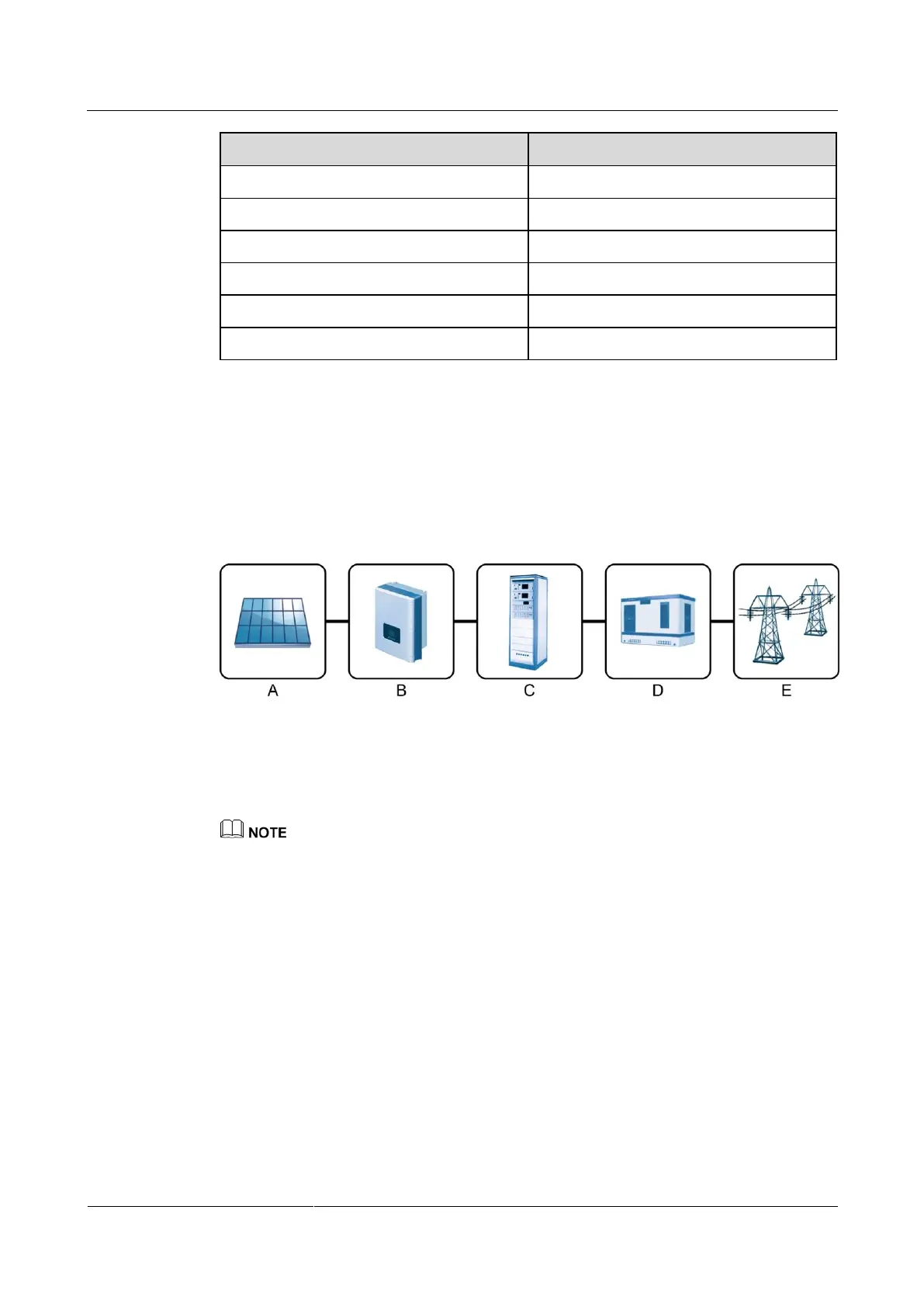

Figure 2-2 SUN2000 network application
A. PV string
B. SUN2000
C. ACDU
D. Transformer
E. Power grid
A model in the range from SUN2000-8KTL to SUN2000-23KTL can connect to the low-voltage power
grid directly without connecting to a transformer.
Power Grid Modes for the SUN2000
All SUN2000 models except the SUN2000-28KTL support the power grid modes TN-S,
TN-C, TN-C-S, and TT, as shown in Figure 2-3. The SUN2000-28KTL supports the IT mode,
as shown in Figure 2-4.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
