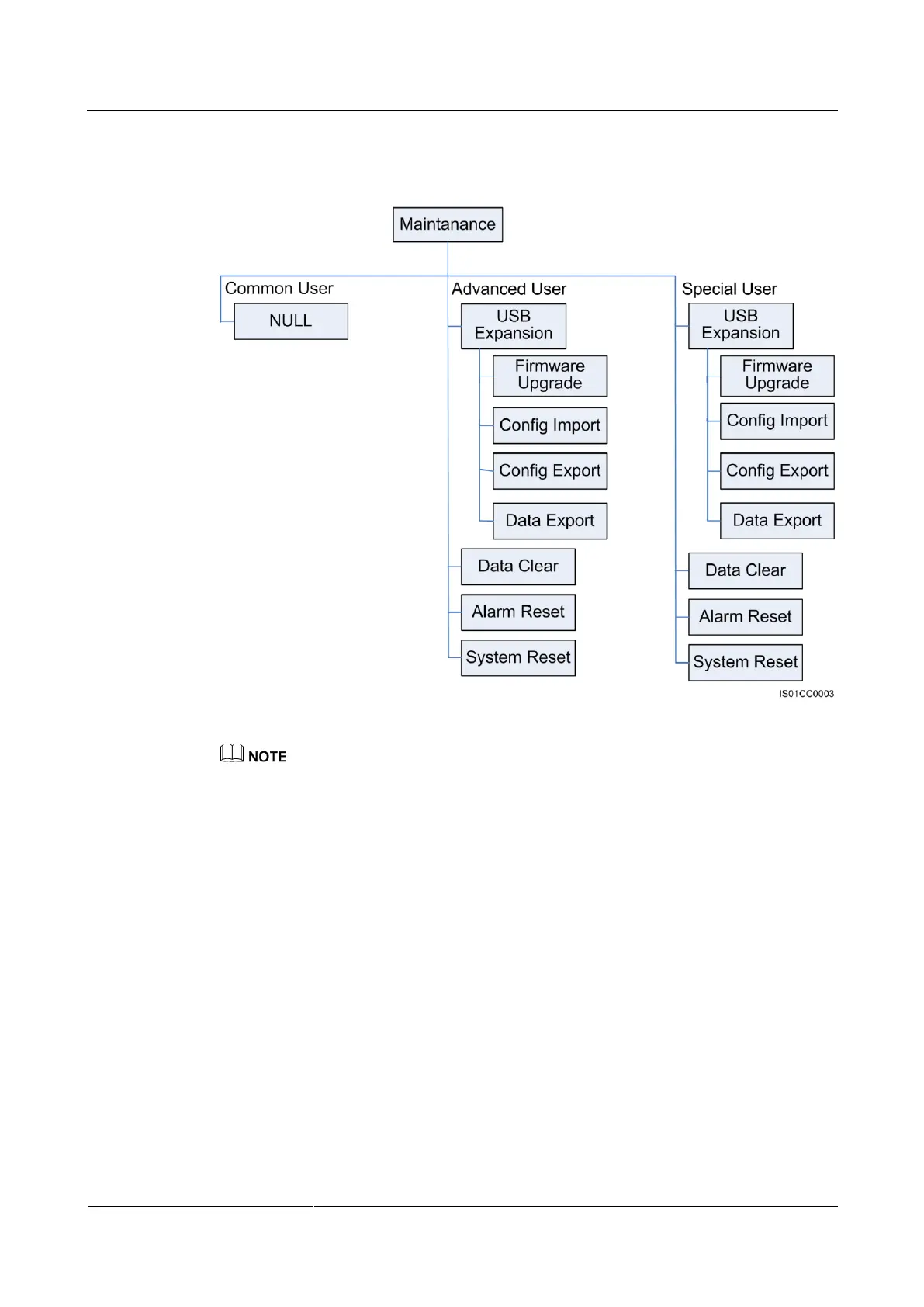

Figure 7-3 Hierarchy of the Maintenance menu
Due to permission restrictions, the submenus under Maintenance will not appear when a user logs in as
a Common User.
7.2 Monitoring Operations
This section describes how to perform monitoring operations, such as viewing system
operating information and setting user parameters, on the monitoring panel.
7.2.1 Viewing System Operating Information
The SUN2000 operating information can be viewed on the monitoring panel. The operating
information includes the daily, monthly, yearly, historical, and total energy yields, insulation
resistance, input data, output data, and internal temperature.
Procedure

The following table lists the procedure for viewing system operating information. The
parameter values in the figures are for reference only.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
