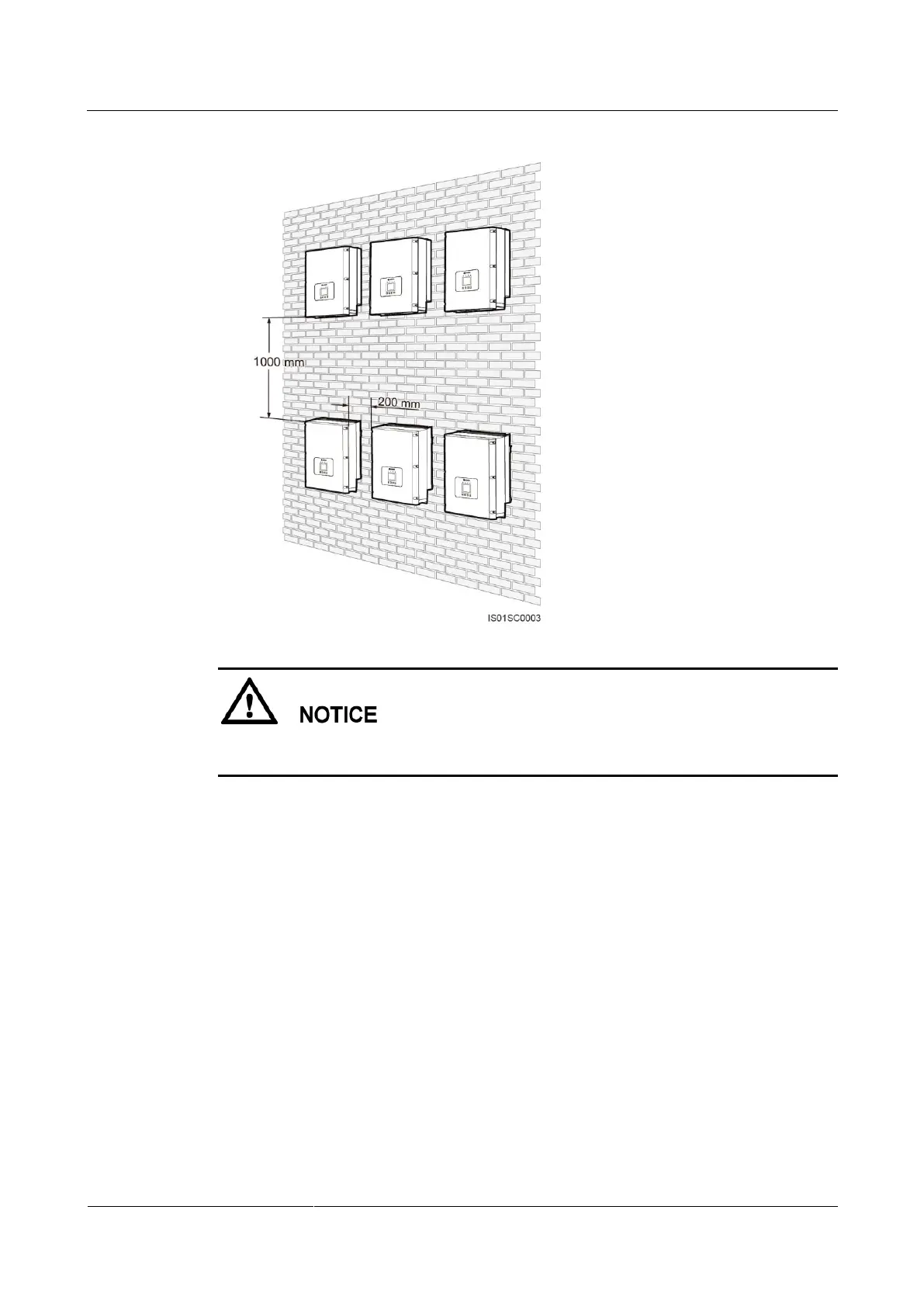

Figure 4-4 Stacked installation mode (not recommended)
The clearance between multiple SUN2000s must be increased to ensure proper heat
dissipation when they are installed in a hot area.
4.4 Support-mounting the SUN2000
When installing the SUN2000, the accompanying rear panel must first be secured to a support.
The SUN2000 is then secured to the rear panel using hexagon screws.
Context
Figure 4-5 shows the SUN2000 from the back.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
