SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20
No.
Name
Quantity
Description
metal terminals and 4 negative metal terminals)
SUN2000-15KTL/17KTL/23KTL/28KTL: 12 (6
positive metal terminals and 6 negative metal
terminals)
NOTICE
Positive and negative metal terminals are packed with
positive and negative connectors respectively. After
unpacking, keep the positive and negative ones separate to
avoid confusion.
8
Documentation
1
N/A

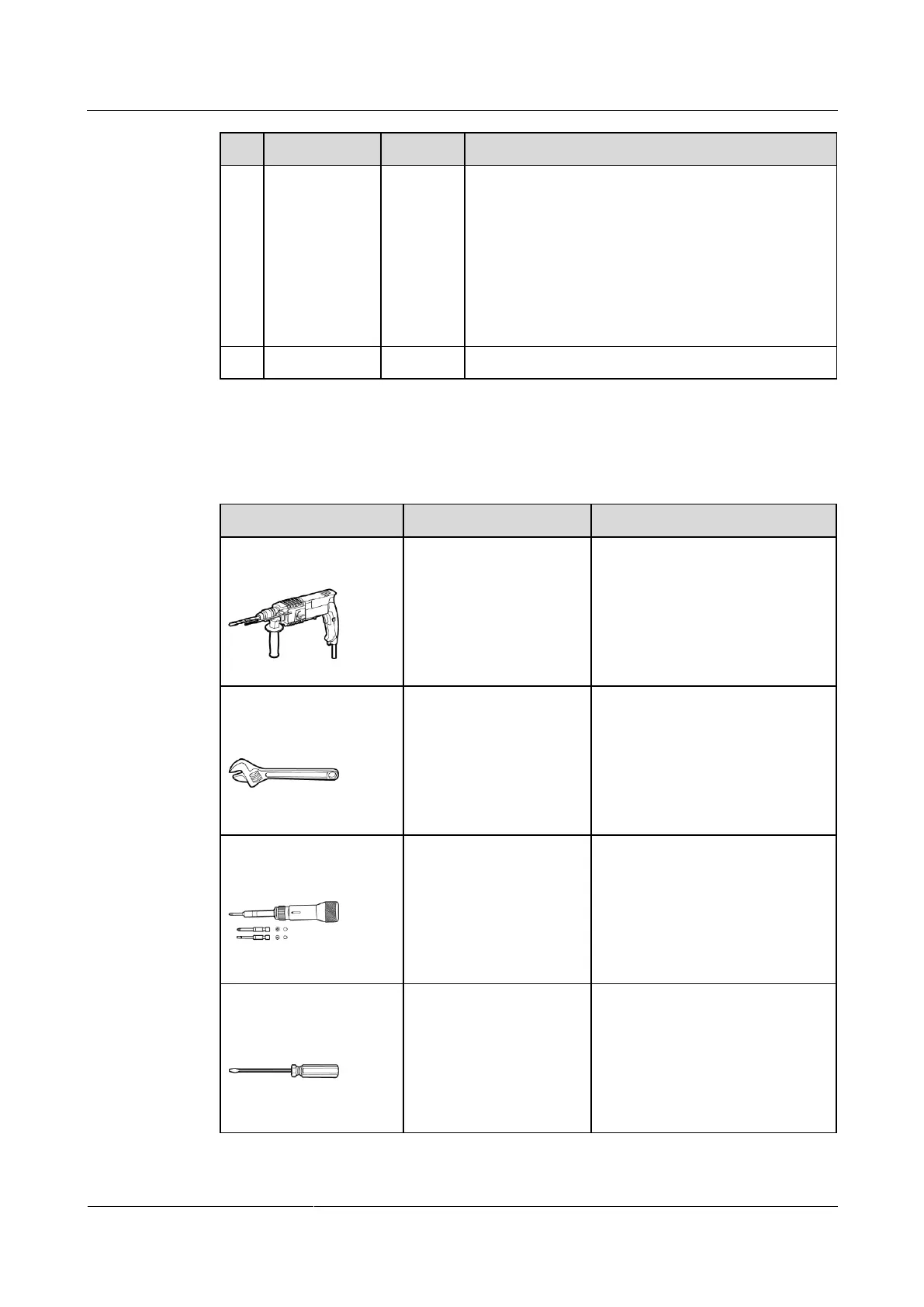

4.2 Tools
Prepare the tools required for installation and cable connections.
Tool
Model
Function
Hammer drill
With a drill bit of Φ14
mm
Drills holes.
Adjustable wrench
With an open end ≥ 32
mm
Tightens expansion bolts.
Torque screwdriver
Hexagon socket head:
5 mm
Flat head: M6
Hexagon socket head: Secures
screws to mechanical parts.
Flat head: Removes plastic
screws from lifting holes.
Flat-head screwdriver
3 x 100
Head width: 3-3.5 mm
Pole length (excluding
the handle): at least
100 mm
Large handle
Tightens or loosens screws
when installing AC power
cables.
Removes AC connectors from
the SUN2000.
