Huawei SUN2000-12KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
Checking the Product and Accessories
After unpacking the SUN2000, check the product and accessories. If any damage is found or
any component is missing, contact the dealer.

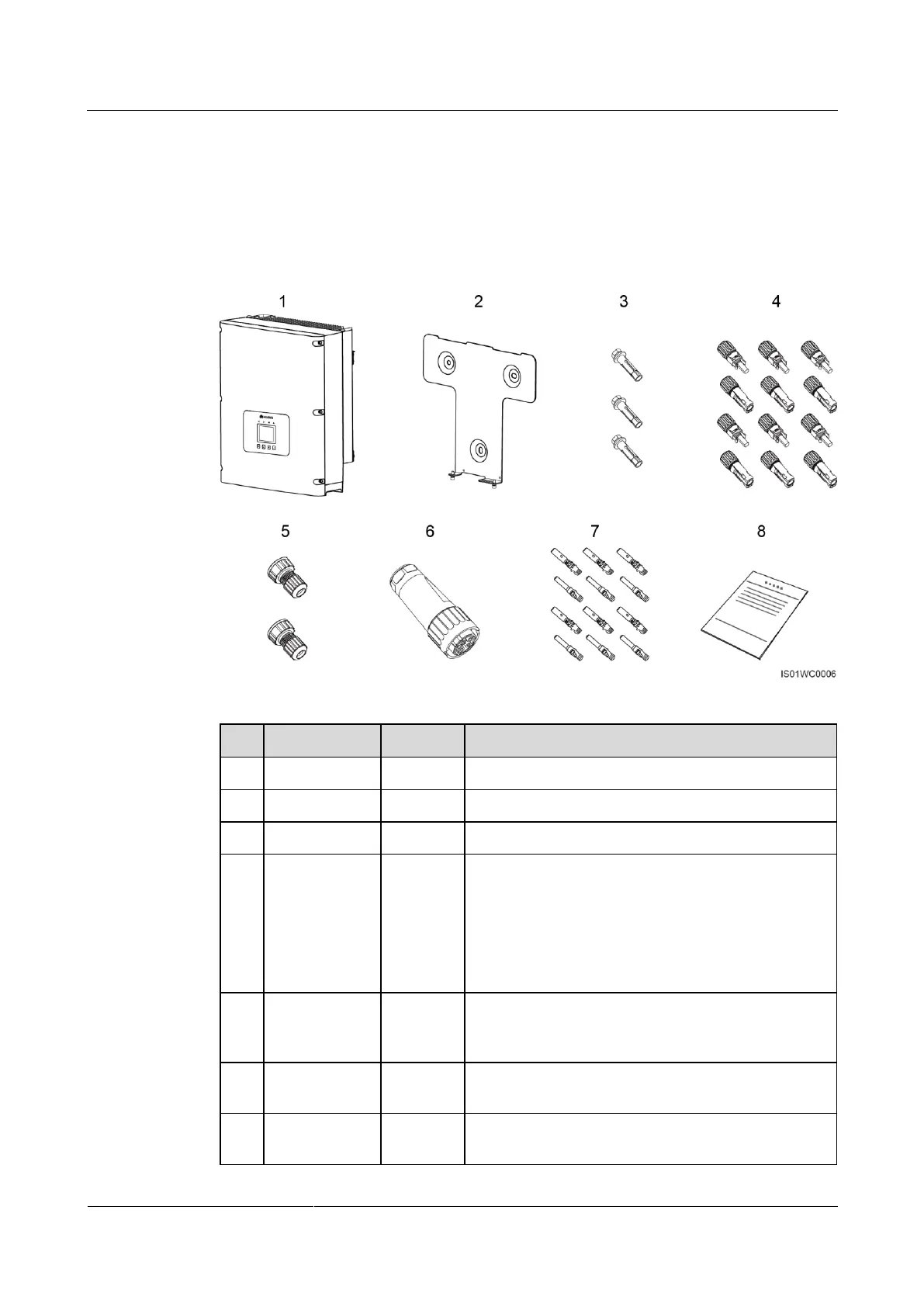

Figure 4-1 shows the product and accessories included in the delivery.
Figure 4-1 Product and accessories
No.
Name
Quantity
Description
1
SUN2000
1
N/A
2
Rear panel
1
N/A
3
Expansion bolt
3
Secures the rear panel to a wall.
4
DC input
connector
8/12
Connects to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive
connectors and 4 negative connectors)

SUN2000-15KTL/17KTL/20KTL/23KTL/28KTL:
12 (6 positive connectors and 6 negative
connectors)
5
Waterproof
RJ45
connector
2
Connects to a communications cable.
6
AC output
connector
1
Connects to an AC output power cable.
7
Metal terminal
8/12
Secures a connector to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
