7 Man-Machine Interaction
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
103
LCD
Procedure

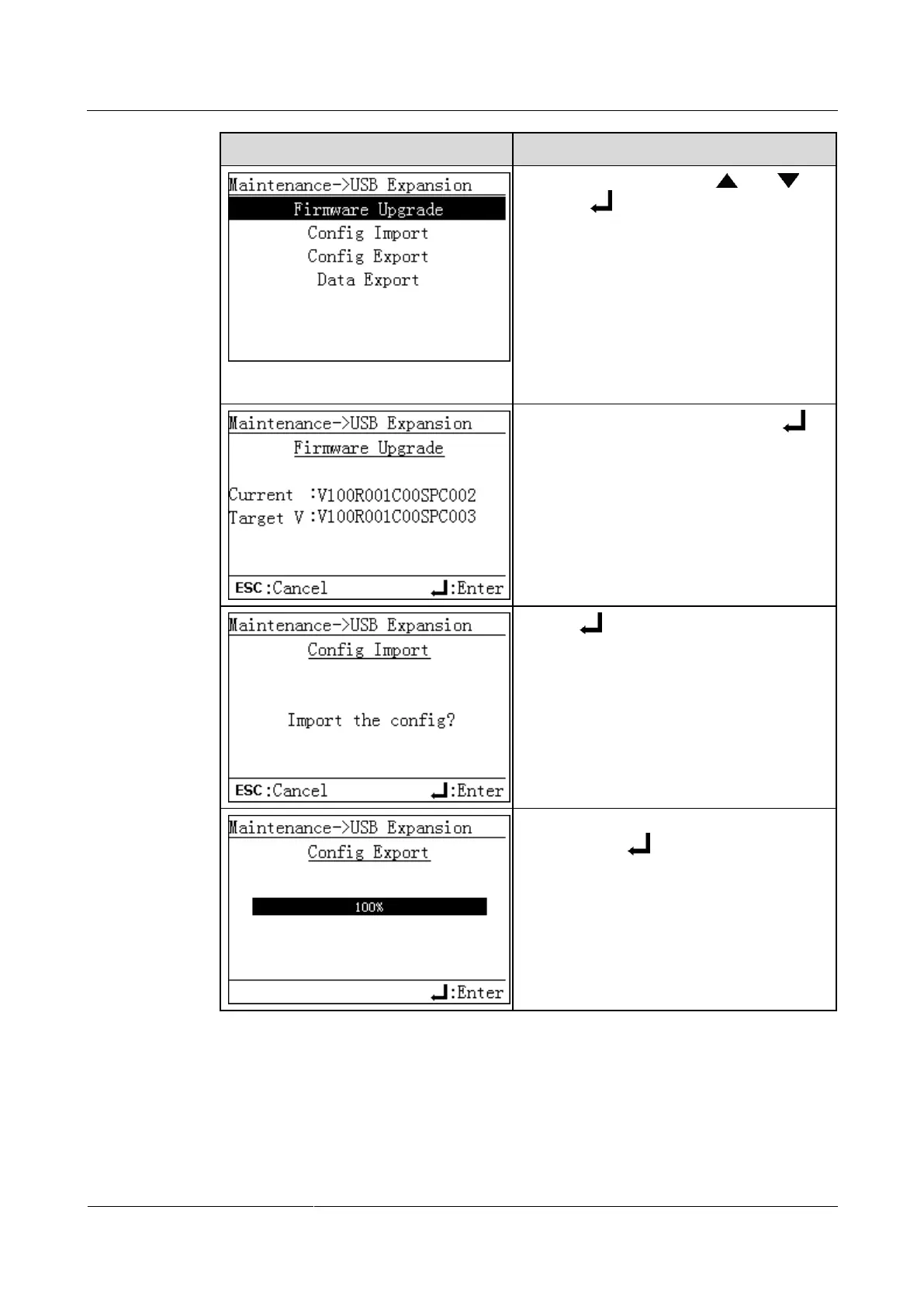

5. Select a menu by pressing and ,
and press .
The menu that can be selected are Firmware
Upgrade, Config Import, Config Export,
and Data Export.

To upgrade the firmware, perform step 6.

To import configurations, perform step 7.

To export configurations, perform step 8.

To export alarms, performance data, and
log data, perform step 9.
6. Confirm the target version and press .
NOTICE

Firmware upgrade is allowed only when the
SUN2000 is properly connected to the PV
strings (the PV connection indicator is green).

Before upgrading the firmware, download the
upgrade package from
http://support.huawei.com, decompress the
package, and copy the files to the root directory
of the USB flash drive.
7. Press .
8. After the configurations are successfully
exported, press .

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
