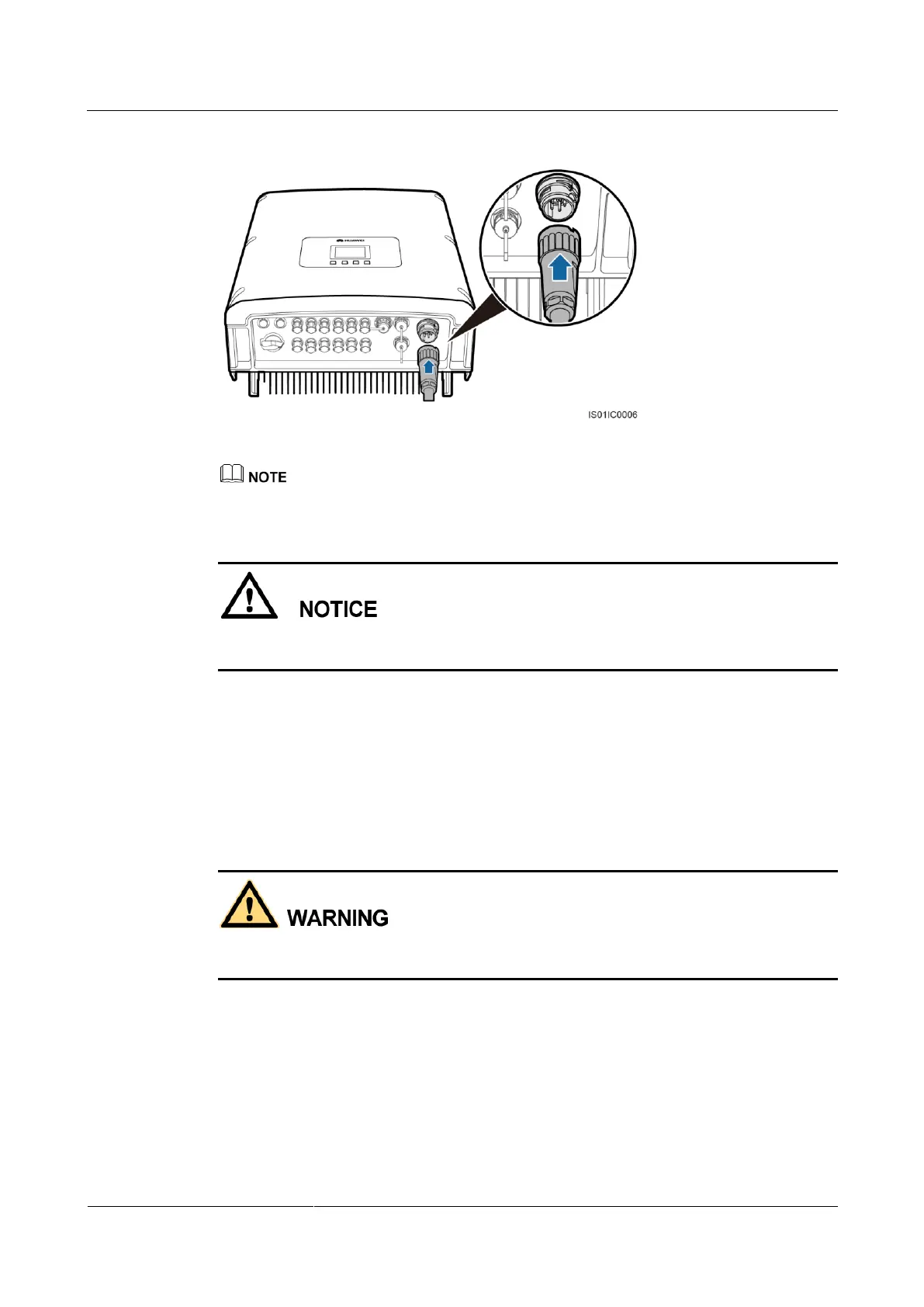

Figure 5-14 Connecting an AC output connector
The AC output connector is securely connected to the AC output wiring terminal after the bayonet
coupling snaps into place.
Reserve a margin of more than 0.5 meter for the cable at the AC output power cable connector
to reduce the cable terminal disconnection due to external force.
----End
Follow-up Procedure
To remove the AC output connector from the SUN2000, press down the locking plate on the
AC output wiring terminal using a flat-head screwdriver as shown in Figure 5-15. Rotate the
AC output connector counterclockwise.
Before removing the AC output connector, switch off the circuit breaker between the
SUN2000 and the power grid.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
